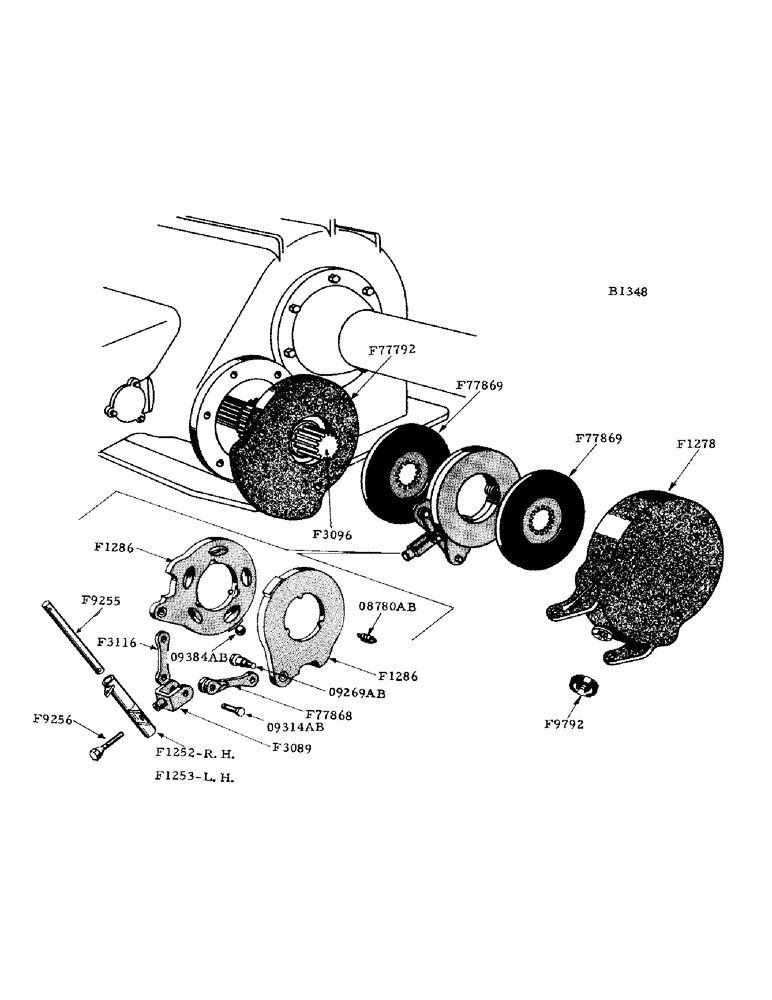

Запчасти Case IH 800 (275) - DIFFERENTIAL BRAKE ASSEMBLY (33) - BRAKES & CONTROLS

F1252

LEVER - actuating, R.H.

1шт.

F1253

LEVER - actuating, L.H.

1шт.

F1278

HOUSING - brake

2шт.

7/16" x 5" N.C. hex. hd. cap screw w/lockwasher

10шт.

F1286

DISC - brake actuating

4шт.

F3089

YOKE - brake operating lever

2шт.

F3116

X

LINK - actuating disc, single

2шт.

F9255

PIN - pivot, brake lever

2шт.

3/16" x 1" cotter pin

4шт.

F9256

BOLT - adjustment

2шт.

7/16" N.F. jam nut

4шт.

F9744

OIL SEAL

- for brake adapter F77792 (not shown) see differential

2шт.

F9792

BOOT - dust, brake housing

2шт.

F77792

ADAPTER - brake housing plate, with F9744 oil seal

2шт.

F77868

LINK

- actuating disc, straddle

2шт.

F77869

CLUTCH DISC

DISC - middle w/linings (lining not furnished separately)

4шт.

08780AB

SPRING - actuating disc

6шт.

09269AB

STUD

4шт.

5/16" N.F. light hex. jam nut

4шт.

09314AB

PIN - yoke, brake rod

2шт.

3/32" x 3/4" cotter pin

2шт.

09384AB

BALL - (7/8" dia. steel) for F1286 disc

10шт.
