Запчасти Case IH 800 (294) - STEERING ARMS AND AXLE (27) - REAR AXLE SYSTEM

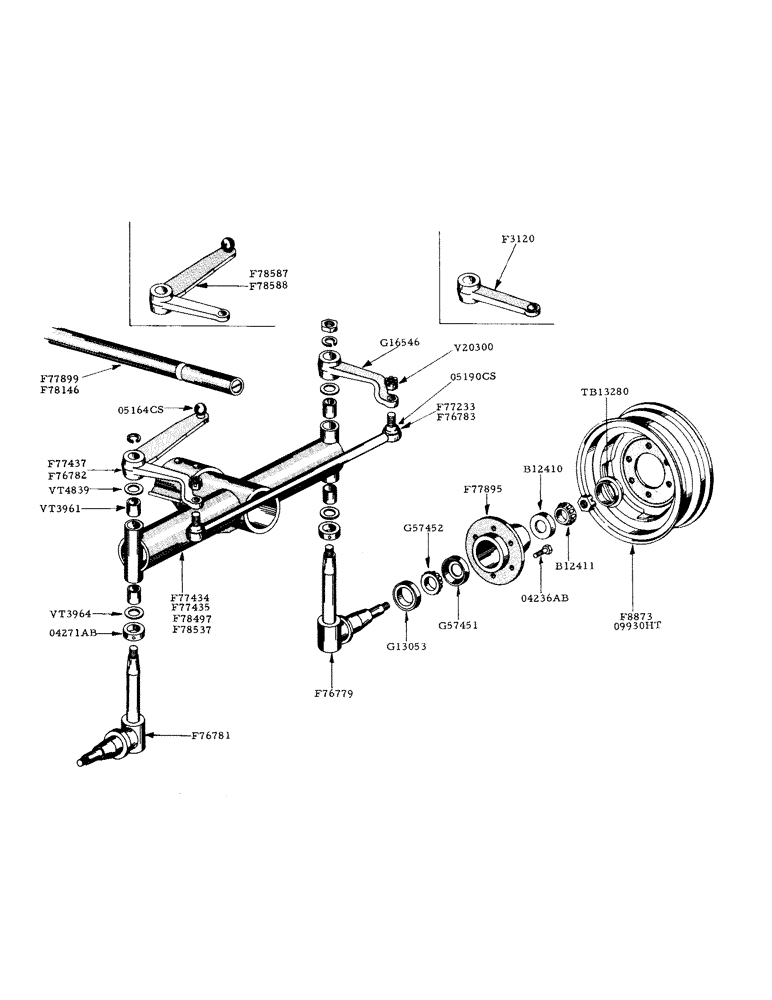

Схема запчастей Case IH 800 - (294) - STEERING ARMS AND AXLE (27) - REAR AXLE SYSTEM

Артикул

Название

Примечание

Количество

F3120

ARM - spindle, R.H. (straight) standard after no. 8160601 (see G16546)

1шт.

F76779

SPINDLE - R.H. steering (standard on grain machines)

1шт.

"G" Woodruff key

1шт.

1" N.F. hex. jam nut and lockwasher

1шт.

3/4" N.F. hex. light slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

F76781

SPINDLE - L.H. steering (standard on grain machines)

1шт.

"G" Woodruff key

1шт.

1" N.F. hex. jam nut and lockwasher

1шт.

3/4" N.F. hex. light slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

F77233

TIE ROD (standard) see F76783

1шт.

F77435

AXLE - rear, with 4-VT3961 bushings (before no. 8179751) see F78537

1шт.

F77437

ARM - center steering crank (w/offset arm) standard before no. 8160601 (see F78588)

1шт.

F78537

AXLE - rear, with 4-VT3961 bushings (after no. 8179751) see F77435

1шт.

1/8" str. Lincoln fitting #5200

2шт.

1/8" 67-1/2deg. Lincoln fitting #5300

2шт.

F78588

ARM - center steering crank (w/straight arm) standard after no. 8160601 (see F77437)

1шт.

F77899

LINK - drag, rear (reference) standard - see F78146

1шт.

G16546

ARM - spindle, R.H. (offset) standard before no. 8160601 (see F3120)

1шт.

04271AB

BEARING (Timken #T139) spindle

2шт.

VT3961

X

BUSHING - for rear axle

4шт.

VT3964

X

WASHER - thrust, for spindles

2шт.

VT4839

X

SHIM - adjusting

6шт.

05164CS

BALL - for center steering crank

1шт.

05190CS

COVER - dust, (rubber) for tie rod ends

2шт.

V20300

OPERATOR MANUAL

NUT - tie rod

2шт.

B12410

BEARING, CUP,1.782" OD

CUP (Timken #LM11910) bearing, outer, wheel for steering axle

2шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE (Timken #LM11949) bearing, outer, wheel for steering axle

2шт.

F8873

WHEEL - for 5:00 x 16-4 ply Impl. tire (standard) see special tires, for steering axle

1шт.

F77895

HUB - wheel (includes 1-B12410 and 1-G57451 cups), for steering axle

2шт.

G13053

OIL SEAL

OIL SEAL - wheel hub, for steering axle

1шт.

G57451

BEARING, CUP

CUP - (Timken #LM48510) bearing, inner, wheel for steering axle

2шт.

G57452

ROLLER BEARING

CONE - (Timken #LM48548) bearing, inner, wheel for steering axle

2шт.

TB13280

X

CAP - wheel hub, for steering axle

2шт.

04236AB

BOLT - wheel to hub, for steering axle

12шт.

F3120

ARM - spindle, R.H., rear axle attachment

1шт.

F76782

ARM - center steering crank (w/offset arm) narrow rear axle before no. 8160601 (see F78587), attachment

1шт.

F76783

TIE ROD - (narrow rear axle) see F77233, attachment

1шт.

F77434

AXLE - rear, with 4-VT3961 bushings (before no. 8179751) see F78497, attachment

1шт.

F78144

ARM - steering, pivot (narrow axle) see F77438, rear attachment

1шт.

F78146

LINK - drag, rear (narrow axle) see F77899, attachment

1шт.

F78497

AXLE - rear, with 4-VT3961 bushings (after no. 8179751) see F77434, attachment

1шт.

1/8" str. Lincoln fitting, #5200, rear axle attachment

1шт.

1/8" 67-1/2deg. Lincoln fitting, #5300, rear axle attachment

1шт.

F78587

ARM - center steering crank (w/straight arm) narrow rear axle after no. 8160601 (see F76782), attachment

1шт.

VT3961

X

BUSHING - for rear axle, attachment

4шт.

F8873

WHEEL - rim and disc (for 6:00 x 16 - 4 ply Impl. tire), special

2шт.

09930HT

WHEEL - rim and disc (for 7:50 x 18 - 4 ply rib type F-1 tire), special

2шт.

Выбрано товаров: 49
