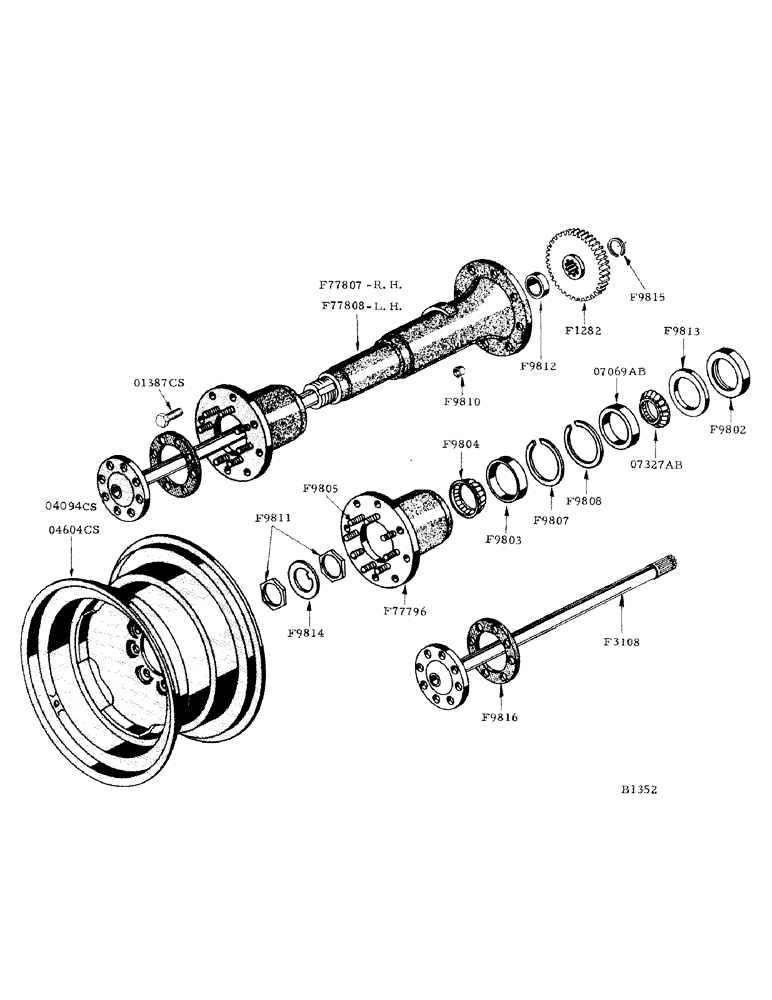

Запчасти Case IH 800 (282) - MAIN AXLE AND HOUSING (25) - FRONT AXLE SYSTEM
№
Артикул
Название
Примечание
Количество
F1282
GEAR (79T) axle shaft and final drive
2шт.
F3108
SPARE PARTS CAT
SHAFT - axle (40-13/16" long)
2шт.
F9810
DOWEL - for F9806 stud
4шт.
F9811
NUT
- axle housing
4шт.
F9812
BEARING
- (N.D. #3213) final drive gear
2шт.
F9814
WASHER
(4" O.D. x 2-29/32" I.D. #14 ga.) lock, axle housing nut
2шт.
F9815
SNAP RING - axle shaft
2шт.
F9817
GASKET - axle housing to case (see transmission case)
2шт.
F77807
HOUSING - axle, R.H.
1шт.
R77808
HOUSING - axle, L.H.
1шт.
F9802
OIL SEAL - inner, hub, and drive wheels
2шт.
F9803
BEARING CUP
CUP (Timken #34478) outer, hub, and drive wheels
2шт.
F9804
ROLLER BEARING
CONE (TIMKEN #34306) OUTER, HUB, and drive wheels
2шт.
F9805
STUD
- axle shaft to hub, and drive wheels
16шт.
7/16" N.F. hex. nut, drive wheels and hubs
16шт.
7/16" shakeproof lockwasher #1122, drive wheels and hubs
16шт.
F9807
SNAP RING - outer bearing cone (F9804), drive wheels and hubs
2шт.
F9808
SNAP RING - inner bearing cone (07327AB), drive wheels and hubs
2шт.
F9809
COLLAR
- for F9805 stud (see transmission case), drive wheels and hubs
16шт.
F9813
SPACER - between F9802 and 07069AB, drive wheels and hubs
2шт.
F9816
GASKET
- for F77796 hub, and drive wheels
2шт.
F77796
HUB - wheel (includes 1-F9803 cup, 1-F9807 snap ring, 1-F9808 snap ring and 1-07069AB cup), and drive
2шт.
07069AB
CUP (Timken #27620) inner, hub, and drive wheels
2шт.
07327AB
CONE (Timken #27690) inner, hub, and drive wheels
2шт.
01387CS
BOLT - wheel to hub, and drive
16шт.
04604CS
WHEEL - rim and disc (12" x 26" - 6 ply tractor tire) see 04094CS, drive, and hubs
2шт.
04604CS
WHEEL - rim and disc (13" x 26" - 6 ply tractor tire), low profile tire (F77715)
2шт.
04094CS
WHEEL - rim and disc (15" x 26" - 6 ply tractor tire) one is dished in and the other dished out for greater traction, bean special (F77720)
2шт.
04604CS
WHEEL - rim and disc (13" x 26" - 6 ply - R1), special tire (F77080)
2шт.
Выбрано товаров: 29
