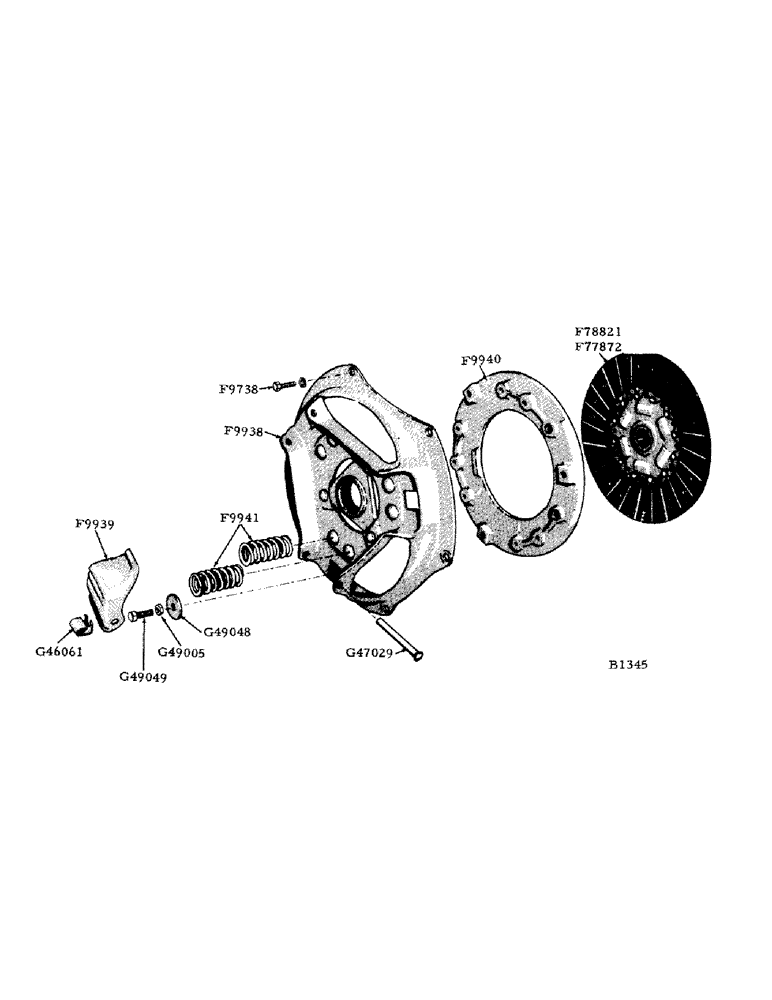

Запчасти Case IH 800 (270) - CLUTCH, 6 PRESSURE PLATE SPRINGS (18) - CLUTCH

F9738

CAP SCREW - clutch mounting plate

6шт.

5/16" N.C. flat hd. nut and lockwasher

6шт.

F9938

BRACKET AND HUB - pressure plate

1шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

F9939

LEVER - clutch

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

F9940

PLATE - pressure

1шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

F9941

SPRING - lever

6шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

F77871

CLUTCH - pressure (complete assembly includes items marked

1шт.

F77872

PLATE - driving, with facing (F78821 may be used)

1шт.

F78821

X

PLATE - driving, with facings (Feramic - SKW #83A) replaces F77872 when those stocks are exhausted

1шт.

G46061

CLIP

- clutch return

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

G47029

PIN

- pivot, lever

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

G49005

NUT - jam, adjusting screw

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

G49048

WASHER

- adjusting screw

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.

G49049

X

SCREW - adjusting, pressure plate

3шт.

Part of pressure clutch complete assembly P/N F77871

1шт.
