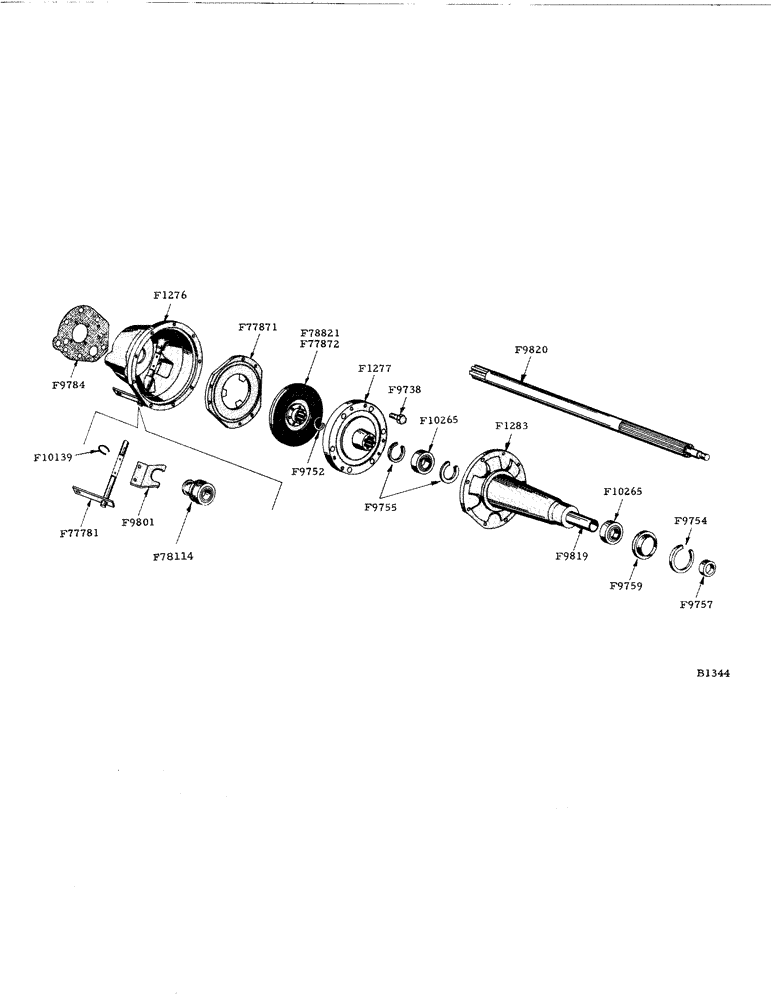

Запчасти Case IH 800 (268) - CLUTCH SHAFT AND HOUSING (18) - CLUTCH

F1276

HOUSING - clutch

1шт.

7/16" x 1-1/4" N.C. hex. hd. cap screw

7шт.

F1277

HANDBOOK

PLATE - clutch mounting

1шт.

F1283

CATALOG

COVER - clutch housing

1шт.

3/8" x 1-1/2" N.F. hex hd. cap screw w/hex nut and lockwasher

9шт.

F9738

CAP SCREW - clutch mounting plate

6шт.

5/16" N.C. flat hd. nut and lockwasher

6шт.

F9752

RING, SNAP

SNAP RING - for F1277 mounting plate

1шт.

F9754

RING, SNAP

SNAP RING - retaining outer clutch cover bearing

1шт.

F9755

RING, SNAP

SNAP RING - for inner clutch cover bearing

2шт.

F9757

SLEEVE

- (1-15/16" O.D. x 29/32" long) input shaft bearing retainer

1шт.

F9759

RETAINER

- input shaft bearing

1шт.

F9784

GASKET

- clutch, Serial Range: housing-case

1шт.

F9801

X

YOKE - clutch release

1шт.

5/16" x 1-3/8" N.F. hex hd. cap screw w/hex nut and lockwasher

2шт.

F9819

SPACER - input shaft, clutch cover

1шт.

F9820

SHAFT - input

1шт.

F10139

SNAP RING - clutch release shaft

1шт.

F10265

BALL BEARING

BEARING (Fafnir #P208NP) input shaft, clutch cover

2шт.

F77781

SHAFT - clutch release, with lever

1шт.

F77871

CLUTCH - less driving plate

1шт.

F77872

PLATE - pressure drive, with facings (see F78821)

1шт.

F78114

BEARING - clutch release

1шт.

F78821

X

PLATE - pressure drive, with facings (Feramic - SKW #83A) replaces F77872 when those shocks are exhausted

1шт.
