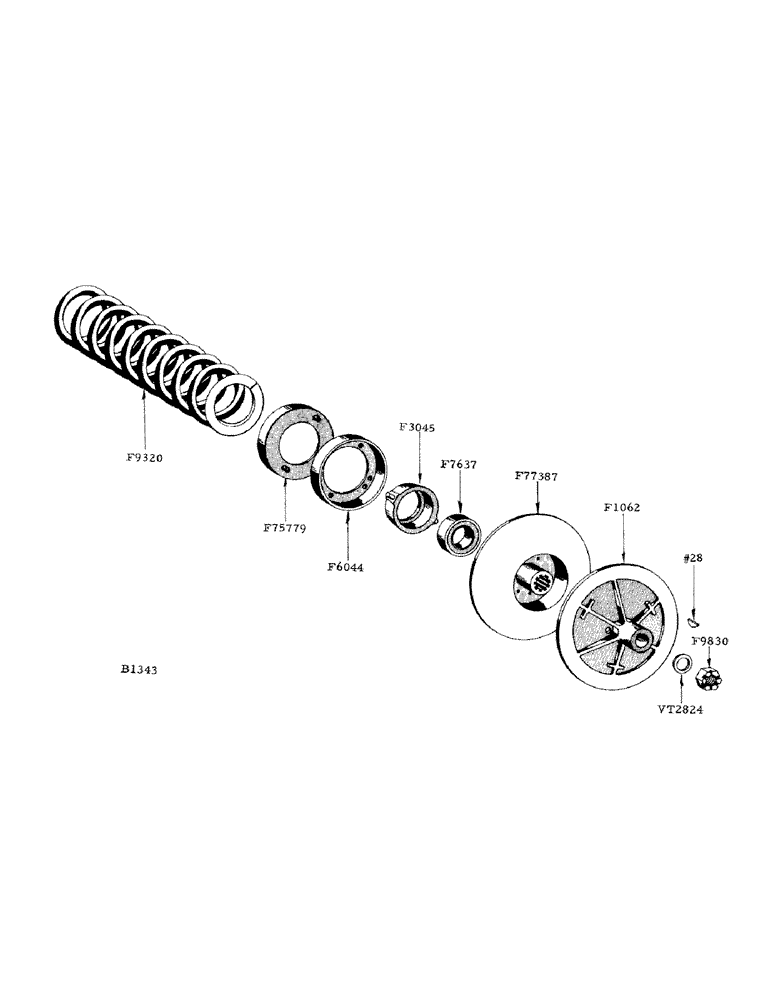

Запчасти Case IH 800 (267) - VARIABLE SPEED TRACTION DRIVE (16) - TRACTION VARIATOR

F1062

SHEAVE HALF - traction drive, outer (fixed)

1шт.

No. 28 Woodruff key

1шт.

F3045

CARRIER - bearing housing (F7637)

1шт.

F6044

PLATE

1шт.

F7637

X

BEARING - (Fafnir #P212NPP) input traction drive shaft

1шт.

F9320

SPRING - traction drive

1шт.

F9562

V-BELT

"V" BELT - variable speed traction drive

1шт.

F9820

SHAFT - input (22-7/8" long) traction drive

1шт.

F9830

NUT

- for F9820 shaft

1шт.

F75779

PLATE - spring retaining

1шт.

F77387

SHEAVE HALF - traction drive, inner

1шт.

1/8" str. Lincoln fitting #5000

1шт.

VT2824

WASHER - (1" U.S. std.) traction drive shaft

1шт.
