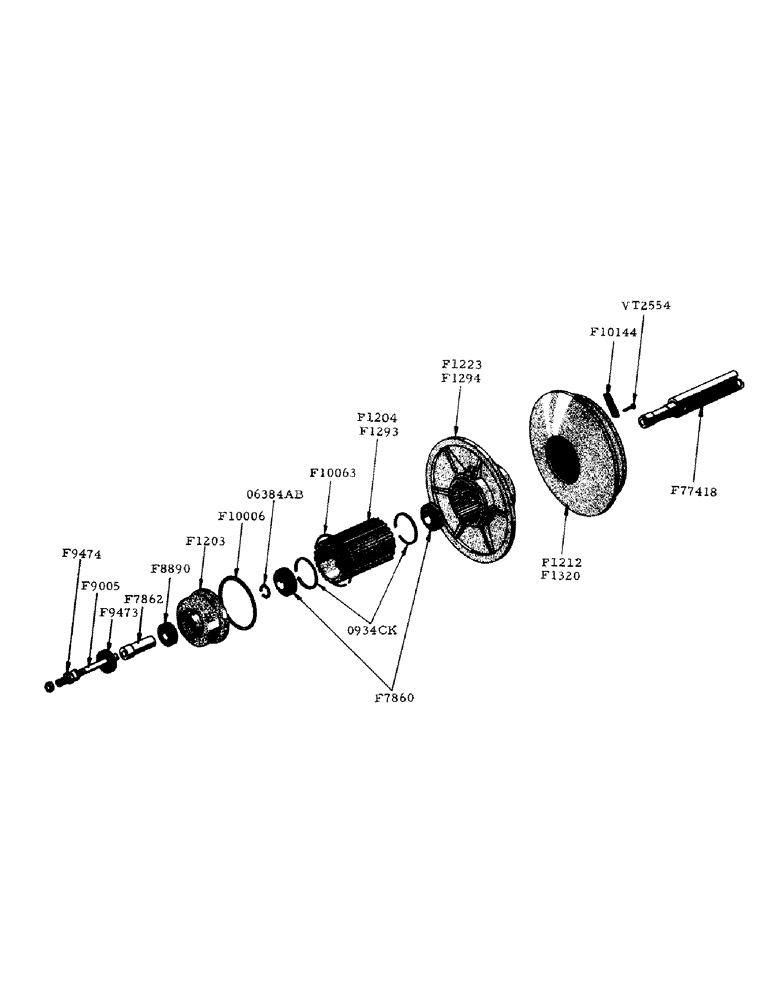

Запчасти Case IH 800 (266) - VARIABLE SPEED TRACTION DRIVE SHEAVES (16) - TRACTION VARIATOR

F1203

CARRIER - bearing

1шт.

F1204

HUB - variable speed (before no. 8179101) see F1293

1шт.

F1212

SHEAVE HALF (13-1/2" O.D.) traction drive, stationary half before no. 8179101) see F1320

1шт.

F1223

CATALOG

SHEAVE HALF (13-1/2" O.D.) movable half, traction drive (before no. 8179101) see F1294

1шт.

F1293

HUB

- variable speed (after no. 8179101) see F1204

1шт.

F1294

SHEAVE HALF - (13-1/2" O.D.) movable half, traction drive (after no. 8179101) see F1223

1шт.

1/4" - 28 thrd. Lincoln fitting #5010

1шт.

F1320

SHEAVE HALF (13-1/2" O.D.) stationary half, traction drive (after no. 8179101) see F1212

1шт.

F7860

BEARING (N.D. #X88107) variable speed sheaves

2шт.

F7862

PLUG BEARING

1шт.

F7868

V-BELT

"V" BELT - combine main drive

1шт.

F8890

BEARING, BALL

BEARING (N.D. #Z9605) adjusting rod

1шт.

F9005

ROD - adjusting

1шт.

7/16" N.F. hex. nut

1шт.

F9473

OIL SEAL

- for F8890 bearing

1шт.

F9474

NUT - adjusting

1шт.

F9562

V-BELT

"V" BELT - variable speed traction drive

1шт.

F10006

KIT

GASKET - bearing carrier F1203

1шт.

F10063

STOP - variable speed

1шт.

F10144

STRAP - lockwasher, for VT2554 cap screw

1шт.

F77418

SHAFT - variable speed upper

1шт.

06384AB

SNAP RING - retaining for F8890 bearing

1шт.

VT2554

CAP SCREW - stationary sheave to F1204 hub

6шт.

#14 ga. wire

1шт.

0934CK

SNAP RING - retaining F7860 bearing

2шт.
