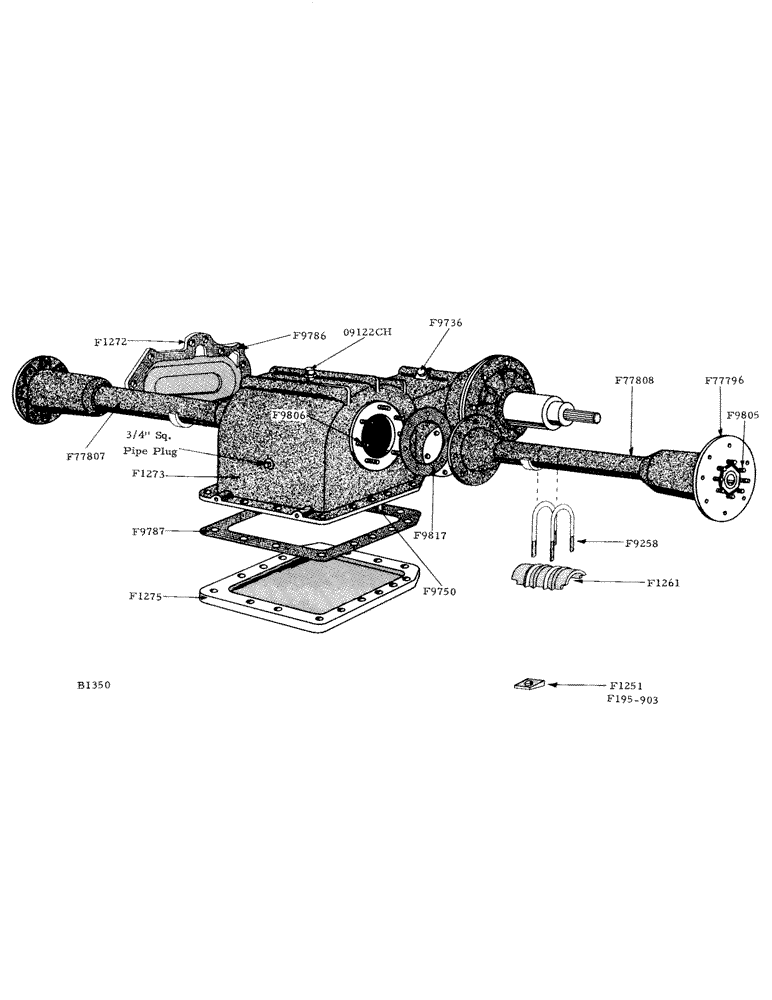

Запчасти Case IH 800 (278) - TRANSMISSION CASE AND AXLE HOUSING (14) - MAIN GEARBOX & DRIVE

F1251

WASHER - bevel, "u" bolt (use F195-103 when these stocks are exhausted)

8шт.

F1261

REINFORCEMENT - axle mounting

2шт.

F1272

COVER - side, case

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher

10шт.

F1273

CASE - transmission

1шт.

3/4" sq. socket hd. pipe plug

1шт.

F1275

COVER - transmission case, lower

1шт.

3/4" sq. hd. pipe plug

1шт.

1/2" x 2-1/4" N.F. hex. hd. cap screw w/hex. nut and lockwasher

13шт.

1/2" x 1-3/4" N.C. hex. hd. cap screw w/lockwasher

5шт.

F9258

"U" BOLT - axle mounting, front

4шт.

5/8" N.F. hex. nut and lockwasher

8шт.

F9736

SCREW - gear shift lock ball spring

2шт.

F9750

STUD - transmission case cover

2шт.

F9786

GASKET - for F1272 cover

1шт.

F9787

GASKET - transmission case cover

1шт.

F9805

STUD

- wheel hub

16шт.

F9806

STUD - transmission case to axle housing

16шт.

9/16" N.F. hex. nut and lockwasher

16шт.

F9817

GASKET - axle, Serial Range: housing-case

1шт.

F77796

HUB - wheel (see drive wheels and hubs)

2шт.

F77807

HOUSING - axle, R.H.

1шт.

F77808

HOUSING - axle, L.H.

1шт.

09122CH

BREATHER - transmission case

1шт.

F195-103

WASHER - bevel, "u" bolt (replaces F1251 when those stocks are exhausted)

8шт.
