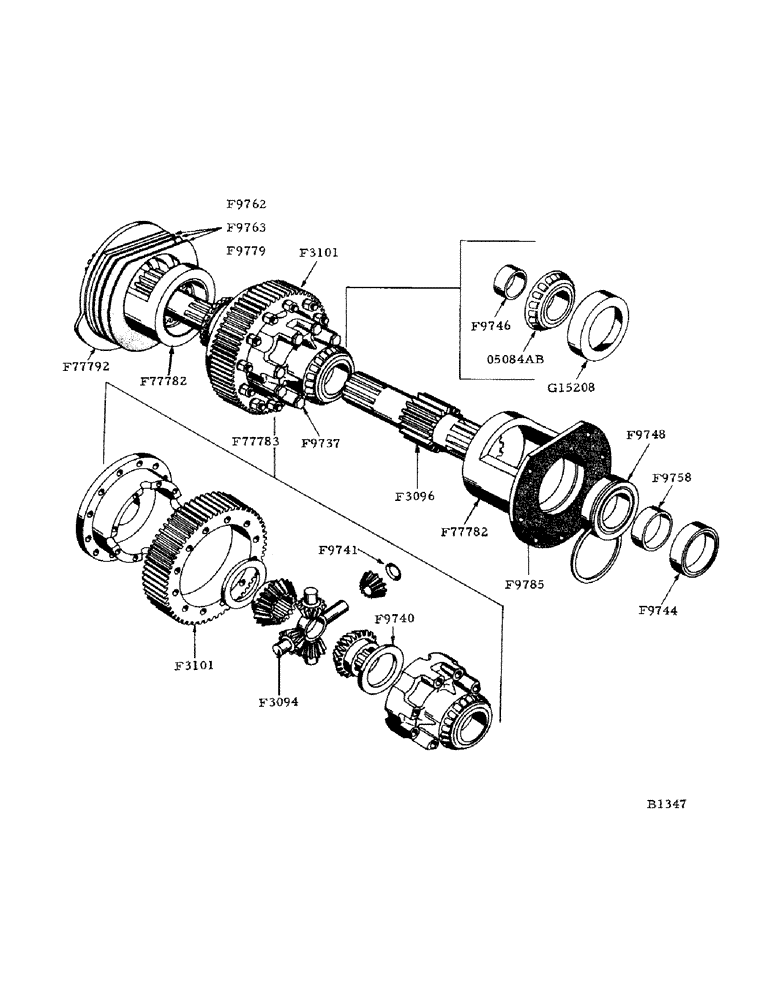

Запчасти Case IH 800 (274) - DIFFERENTIAL (14) - MAIN GEARBOX & DRIVE

F3094

SPIDER - differential

1шт.

Part of Complete Differential P/N F77783

1шт.

F3096

SHAFT - differential (drives final drive gear)

2шт.

F3101

RING GEAR (61T) differential

1шт.

F9737

CAP SCREW - differential case

8шт.

Part of Complete Differential P/N F77783

1шт.

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, differential side gear

2шт.

Part of Complete Differential P/N F77783

1шт.

F9741

WASHER - thrust, differential pinion

4шт.

Part of Complete Differential P/N F77783

1шт.

F9744

OIL SEAL

- differential shaft

2шт.

F9746

BUSHING (1-3/4" O.D. x 1-1/4" long) differential case

2шт.

Part of Complete Differential P/N F77783

1шт.

F9748

BEARING (N.D. #43212) differential shaft (includes snap ring)

2шт.

F9758

SLEEVE (2-7/8" O.D. x 1-1/16" long) differential shaft

2шт.

F9762

SHIM (.003" thick) final drive pinion bearing

2шт.

F9763

SHIM (.005" thick) final drive pinion bearing

2шт.

F9779

SHIM (.010" thick) final drive pinion bearing

4шт.

F9785

GASKET - final drive pinion bearing

3шт.

F77782

HOUSING - final drive pinion (includes G15208 cup)

2шт.

7/16" x 2-7/8" N.F. hex. hd. cap screw w/hex. nut and lockwasher

12шт.

F77783

DIFFERENTIAL - complete, Includes: P/N F3094, P/N F9737, P/N F9740, P/N F9741 and P/N F9746

1шт.

F77792

ADAPTER - brake housing plate w/F9744 oil seal (see differential brake assembly)

2шт.

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP (Timken #394AS) for 05084AB cone

2шт.

05084AB

CONE (Timken #395) differential and pinion

2шт.
