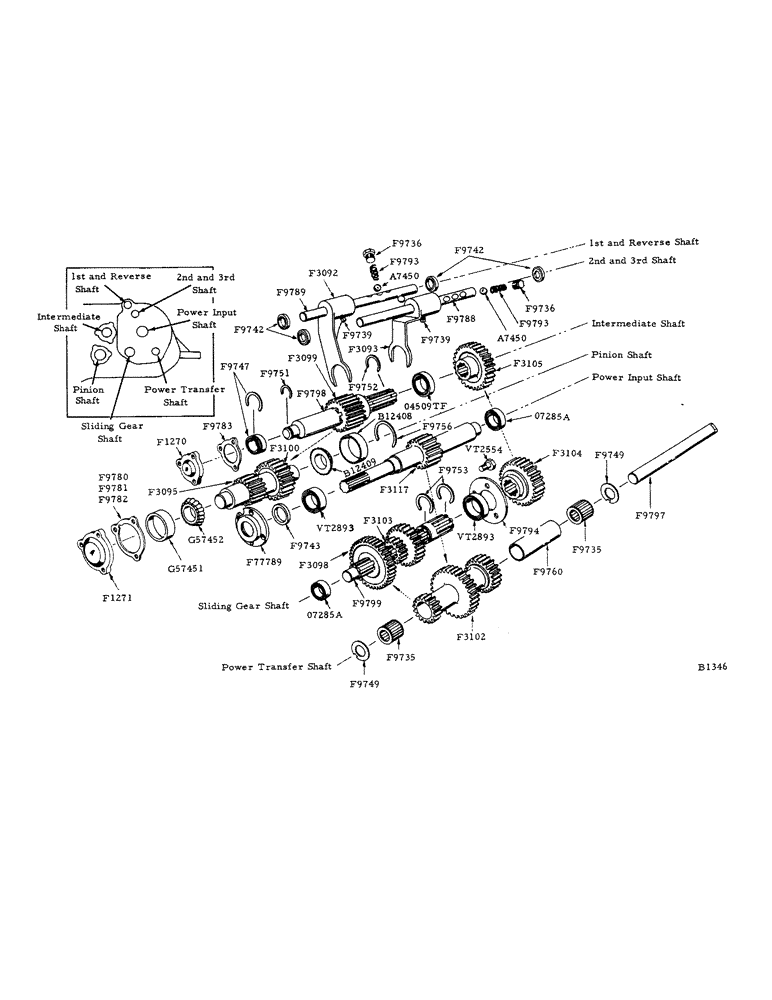

Запчасти Case IH 800 (272) - TRANSMISSION, SHIFTER FORK AND SHAFTS (14) - MAIN GEARBOX & DRIVE

A7450

X

BALL (7/16" dia.) gear shift lock, shifter fork shafts

4шт.

F3092

FORK - shift, 1st and reverse

1шт.

F3093

FORK

- shift, 2nd and 3rd

1шт.

F9736

SCREW - gear shift lock ball

2шт.

F9739

SCREW - shift fork lock

2шт.

F9742

OIL SEAL

OIL SEAL - shifter shafts

4шт.

F9788

SHAFT (11-13/16" long) shifter, 2nd and 3rd speed

1шт.

F9789

SHAFT (11-13/16" long) shifter, 1st and reverse

1шт.

F9793

SPRING - gear shift lock ball

2шт.

F1270

CAP - for intermediate shaft bearing (see transmission case)

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher, transmission, intermediate shaft

3шт.

F3099

GEAR (19T) 2nd intermediate drive, shaft, transmission

1шт.

F3105

GEAR (35T) driven change, transmission, intermediate shaft

1шт.

F9747

BEARING (N.D. #43205) intermediate shaft, L.H., transmission

1шт.

F9751

X

SNAP RING - for F9747 bearing, transmission, intermediate shaft

1шт.

F9752

RING, SNAP

SNAP RING - for F3105 gear, transmission, intermediate shaft

1шт.

F9783

GASKET - for F1270 bearing cap, transmission, intermediate shaft

1шт.

F9798

SHAFT (10-1/4") transmission intermediate

1шт.

04509TF

BEARING (N.D. #3208) intermediate shaft, R.H., transmission

1шт.

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP (Timken #LM67010) differential intermediate gear, R.H., pinion shaft

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE (Timken #LM67048) differential intermediate gear, R.H., pinion shaft

1шт.

F1271

CAP - differential pinion bearing (see transmission case), shaft

1шт.

3/8" x 1" N.C. hex. hd. cap screw w/lockwasher, differential pinion shaft

3шт.

F3095

SHAFT (7-23/32") with 16T pinion, differential drive

1шт.

F3100

GEAR (29T) differential intermediate, pinion shaft

1шт.

F9756

SNAP RING - for B12408 cup, differential pinion shaft

1шт.

F9780

SHIM (.008" thick) differential pinion bearing cap, shaft

2шт.

F9781

SHIM (.005" thick) differential pinion bearing cap, shaft

2шт.

F9782

SHIM (.010" thick) differential pinion bearing cap, shaft

4шт.

G57451

BEARING, CUP

CUP (Timken #LM48510) differential drive pinion, L.H., shaft

1шт.

G57452

ROLLER BEARING

CONE (Timken #LM48548) differential drive pinion, L.H., shaft

1шт.

F3117

SHAFT - w/19T gear, input drive, power

1шт.

F9743

OIL SEAL - for F77789 bearing cap, power input drive shaft

1шт.

F77789

CAP - input drive bearing, L.H. (includes F9743 oil seal), power shaft

1шт.

3/8" x 1" N.C. hex. hd. cap screw, power input drive shaft

4шт.

07285A

BEARING (N.D. #3205) input drive bearing, R. H., power shaft

1шт.

VT2893

X

BEARING (N.D. #3207) input drive bearing, L. H., power shaft

1шт.

F3098

GEAR (41T) low and reverse sliding, shaft

1шт.

F3103

GEAR (29T-17T) 2nd and 3rd sliding, shaft

1шт.

F3104

GEAR (28T) drive intermediate shaft F9798, sliding

1шт.

F9753

SNAP RING - for F3104 gear and VT2893 bearing, sliding shaft

2шт.

F9794

CAP - for VT2893 bearing, sliding gear shaft

1шт.

F9799

SHAFT (9-43/64") shifter gear, sliding

1шт.

07285A

BEARING (N.D. #3205) shifter gear shaft, L.H., sliding

1шт.

VT2554

CAP SCREW (3/8" x 3/4" N.C.) for F9794 cap, sliding gear shaft

3шт.

VT2893

X

BEARING (N.D. #3207) shifter gear shaft, R.H., sliding

1шт.

F3102

GEAR - cluster (17T - 41T - 28T), power transfer shaft

1шт.

F9735

BEARING, ROLLER

BEARING (Hyatt #93420) cluster shaft, power transfer

2шт.

F9749

WASHER (1-7/8" O.D. x 29/32" I.D. x 1/16" thick) cluster shaft, power transfer

2шт.

F9760

SPACER (1-1/8" O.D. x 3-1/2" long) for F3102 cluster gear, power transfer shaft

1шт.

F9797

SHAFT (8-1/16" long) cluster, power transfer

1шт.
