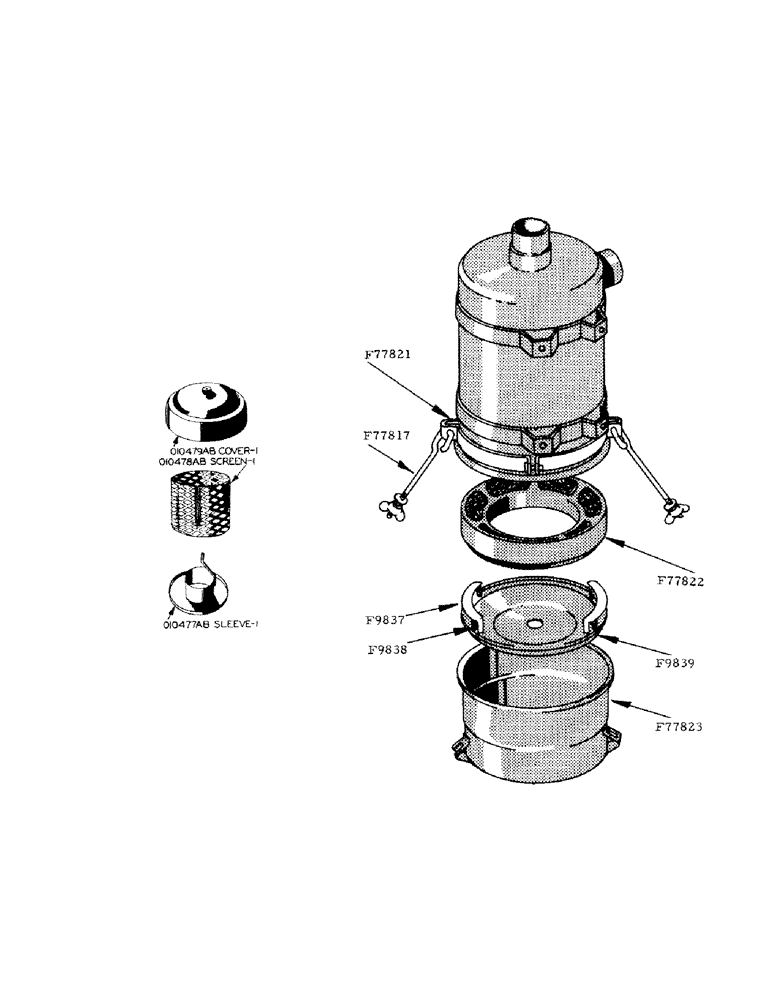

Запчасти Case IH 800 (241) - PARTS FOR F77625 AIR CLEANER (10) - ENGINE

F9837

HANDLE - disc

2шт.

1/16" x 3/8" cotter pin

4шт.

F9838

SPRING - disc handle

4шт.

F9839

DISC

1шт.

F10156

GASKET - water seal (to keep rain water out of oil cup) not shown.

1шт.

F77625

AIR CLEANER - complete

1шт.

F77817

ROD - retaining, includes 1/4" wing nut and washer

2шт.

F77821

BAND - retaining rod

1шт.

F77822

PRE-FILTER

1шт.

F77823

CUP

1шт.

010477AB

SLEEVE ASSEMBLY, parts for 09827AB pre-screener

1шт.

010478AB

SCREEN, parts for 09827AB pre-screener

1шт.

010479AB

COVER WITH NUT, parts for 09827AB pre-screener

1шт.
