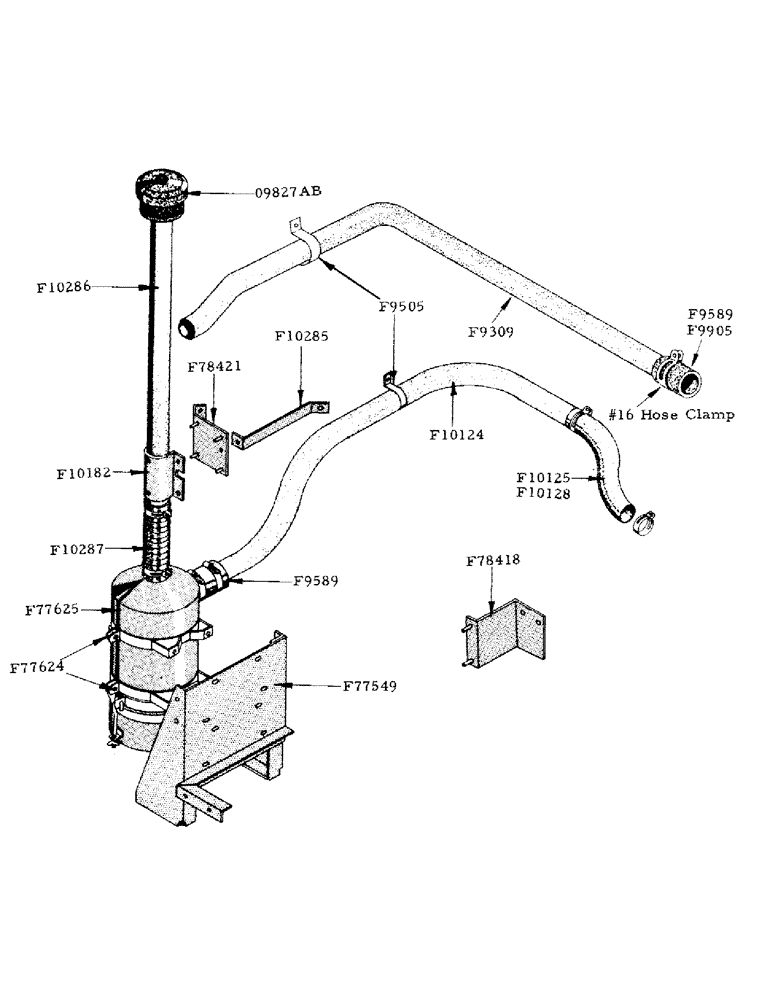

Запчасти Case IH 800 (240) - AIR CLEANER (10) - ENGINE

F9309

TUBE (30" approx.) from air cleaner to carburetor (before no. 8160601) model "719" engine (see F10124)

1шт.

F9505

CLAMP - for F9309 or F10124 tube

1шт.

1/4" x 3/4" N.C. hex. bolt and lockwasher

2шт.

F9589

X

HOSE - for f9309 or F10124 tube (2-used for "719" engines, 1-used for "A251" engines

1шт.

F9905

HOSE - engine end F9309 tube (model "709" diesel engines) See F10128 (not shown)

1шт.

F10124

TUBE - air cleaner to carburetor (after no. 8160601) model "A251" engine (see F9309)

1шт.

F10125

HOSE - carburetor end of F10124 tube (model "A251G" engine) See F9589 and F10128

1шт.

F10128

HOSE - engine end of F10124 tube (model "A267" diesel engines") not shown (see F9905)

1шт.

F10182

CLAMP - for F10286 tube

1шт.

1/4" N.C. wing nut and lockwasher

2шт.

F10285

BRACE - for F78421 pre cleaner bracket (no. 8179751 and after)

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F10286

TUBE - pre cleaner to air cleaner

1шт.

F10287

HOSE - air cleaner end of F10286 tube

1шт.

#16 hose clamp

2шт.

F77549

SUPPORT - for air cleaner and oil reservoir

1шт.

3/8" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F77625

AIR CLEANER

1шт.

F77624

X

BAND - mounting, for air cleaner

2шт.

5/16" x 5/8" N.F. hex. bolt w/hex. nut and lockwasher

4шт.

F78418

BRACKET - for pre cleaner in transport position

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

2шт.

F78421

BRACKET - pre cleaner tube support (in operating position)

1шт.

5/16" x 7/8" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

5/16" x 3/4" N.F. hex. bolt w/hex. nut and lockwasher

1шт.

09827AB

PRE CLEANER - air intake

1шт.
