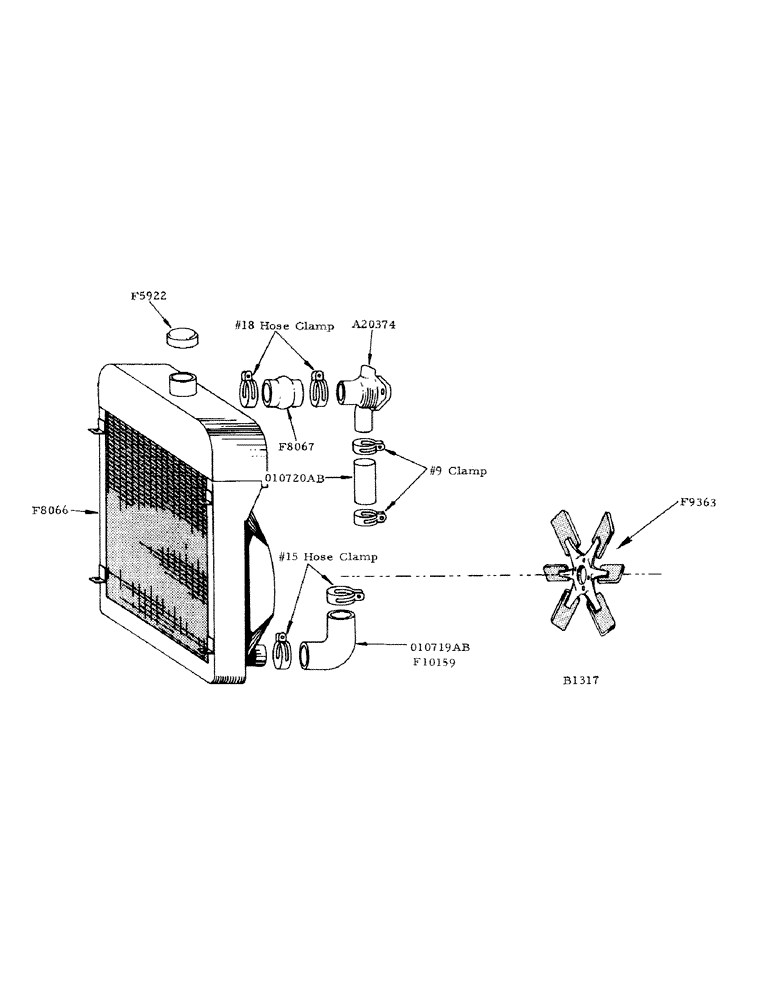

Запчасти Case IH 800 (238) - RADIATOR (10) - ENGINE

A20374

HOUSING

- thermostat, water manifold

1шт.

3/8" x 1-1/8" N.C. hex. bolt w/lockwasher

2шт.

3/8" sq. hd. pipe plug

1шт.

F5922

CAP

- radiator pressure (4 lbs.)

1шт.

F8066

RADIATOR

1шт.

1/4" sq. hd. pipe plug

1шт.

F8067

RADIATOR HOSE

HOSE - radiator inlet

1шт.

#18 hose clamp (2-7/8" O.D. hose)

2шт.

F9363

FAN - radiator

1шт.

F10159

HOSE

- water pump to radiator (A251G and A267D type engines) See 010719AB

1шт.

010719AB

HOSE - water pump to radiator ("709-719" type engines) See F10159

1шт.

#15 hose clamp (2-3/8" O.D. hose)

2шт.

010720AB

HOSE - water by-pass

1шт.

#9 hose clamp (1-5/8" O.D. hose)

2шт.
