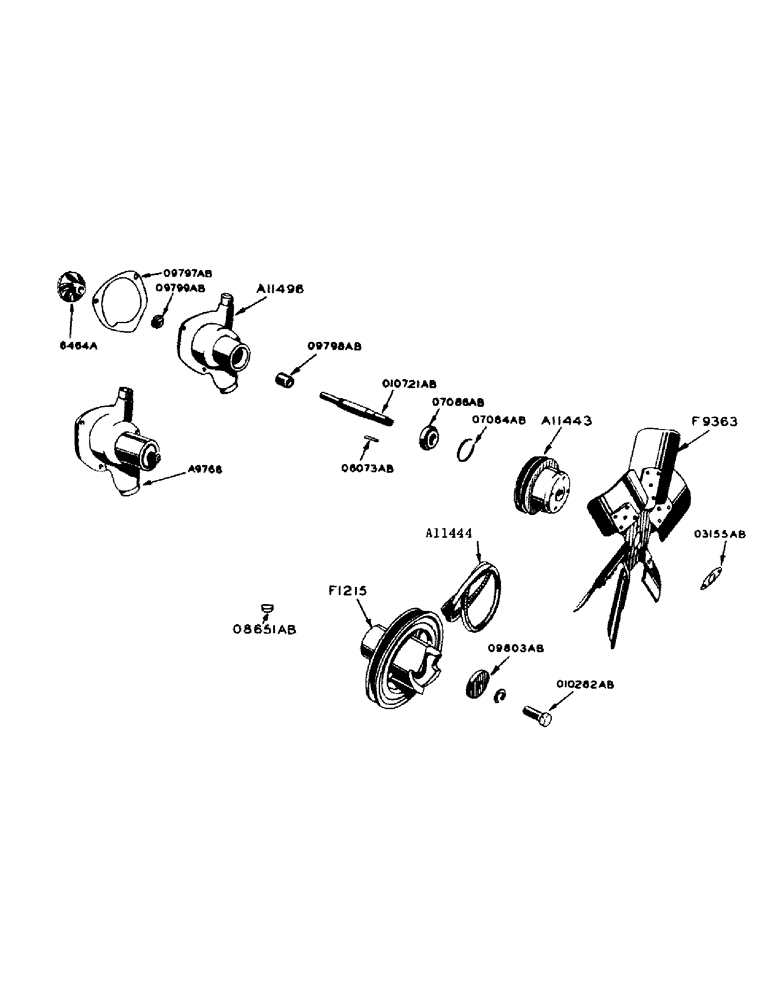

Запчасти Case IH 800 (236) - FAN AND WATER PUMP (10) - ENGINE

A9768

PUMP

WATER PUMP ASSEMBLY - less fan blades, pulley & key

1шт.

A11443

PULLEY - fan and water pump

1шт.

A11444

BELT,0.53" W x 50.50" L

Fan and Generator 0.53" W x 50.50" L

1шт.

A11495

BODY - (use A11496)

1шт.

A11496

BODY

- water pump, with 09798AB bushing

1шт.

1/8" - 67-1/2deg. safety vent fitting, Lincoln fitting no. 5399

1шт.

3/8" x 1-1/4" N.C. hex. bolt w/lockwasher

3шт.

3/8" ctsk. headless pipe plug

1шт.

F1215

PULLEY - crankshaft

1шт.

F9363

FAN

1шт.

3/8" x 3/4" N.C. hex. bolt w/lockwasher

4шт.

6464A

X

IMPELLER - water pump

1шт.

03155AB

LOCK - water pump shaft nut

1шт.

06073AB

KEY - water pump and fan shaft

1шт.

07084AB

SNAP RING - bearing retainer

1шт.

07086AB

BEARING - water pump and fan shaft (N.D. no. 8604)

1шт.

08651AB

KEY - Woodruff, crankshaft pulley

1шт.

09797AB

GASKET - water pump body

1шт.

09798AB

BUSHING - water pump body

1шт.

09799AB

SEAL - water pump

1шт.

09803AB

WASHER - crankshaft pulley

1шт.

010282AB

BOLT -, Serial Range: pulley-crankshaft

1шт.

5/8" std. lockwasher

1шт.

010721AB

SHAFT - fan and water pump

1шт.

5/8" N.F. hex. jam nut

1шт.
