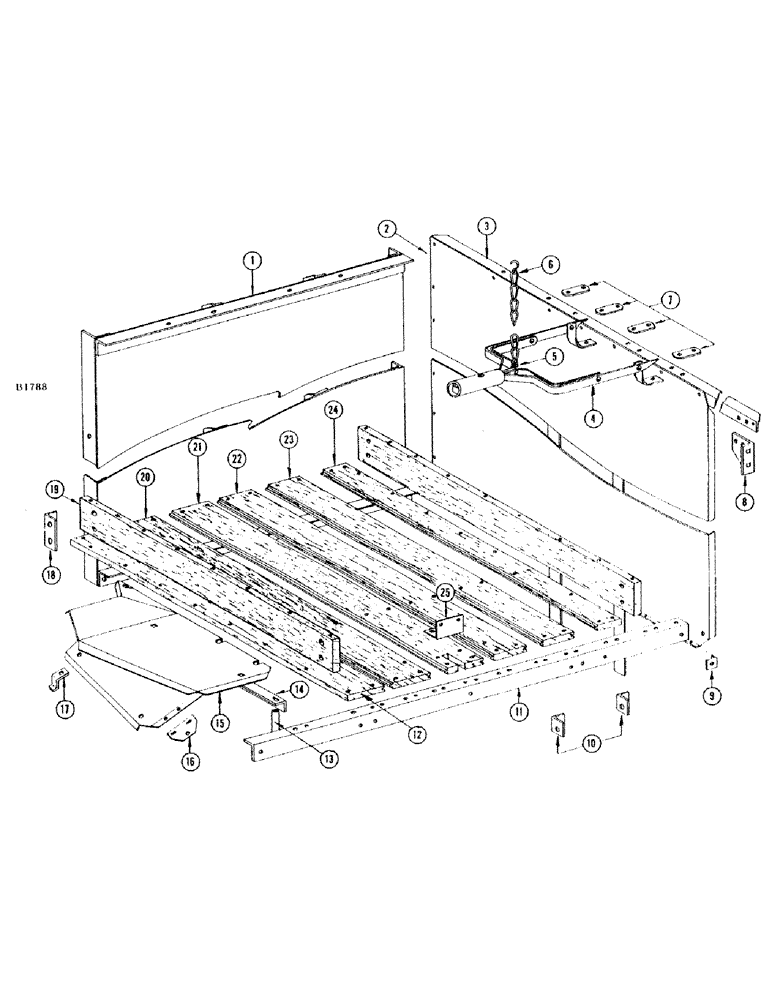

Запчасти Case IH 660 (176) - BAGGING PLATFORM

1

F82645

SHIELD - front, bag

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

8шт.

2

F82646

SHIELD - R.H., bag

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121) L.W. (192-14)

8шт.

3

F18873

ANGLE - top, R.H. bag shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121) L.W. (192-14)

3шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123) L.W. (192-21)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122) and L.W. (192-20)

2шт.

4

F77318

HOLDER - bag

2шт.

5

O5481HT

HOOK - chain

2шт.

6

O5696HT1

CHAIN

1шт.

7

F18926

SCREW

CLIP - bag holder

4шт.

BOLT - 1/4" x 3/4" N.F. hex (114-5) nut (129-121) L.W. (192-14)

3шт.

BOLT - 1/4" x 7/8" N.F. hex (114-7) nut (129-121) L.W. (192-14)

1шт.

BOLT - 1/4" x 3/4" N.F. hex (114-5) nut (129-121) L.W. (192-14)

4шт.

8

F18907

BRACKET - upper angle, R.H. bag shield

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123) L.W. (192-21)

2шт.

9

F18910

SCREW

CLIP - R.H. bag shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121) L.W. (192-14)

1шт.

10

F18911

SCREW

BRACKET - R.H. bag shield

2шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122) and L.W. (192-20)

2шт.

11

F18861

ANGLE - floor support, rear

1шт.

12

F4049

BOARD - floor, L.H. end

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

1шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

2шт.

13

F18925

SCREW

SPACER - platform extension

1шт.

BOLT - 5/16" x 5-1/2" rhd. sq. nk. (111-226) nut (129-102) and L.W. (192-20)

1шт.

14

F18924

SCREW

SUPPORT - platform extension

1шт.

BOLT - 3/8" x 1-3/4" N.F. hex (114-204) nut (129-123) and L.W. (192-21)

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102) and L.W. (192-20)

1шт.

15

F82659

EXTENSION - platform

1шт.

16

F18930

BRACKET - rear, platform extension

1шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122) and L.W. (192-20)

2шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123) L.W. (192-21)

1шт.

17

F18927

CLIP - L.H. side, platform extension (Over roll of bag chute)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102) and L.W. (192-20)

2шт.

18

F8737

CLIP - corner, grain board

4шт.

BOLT - 5/16" x 1-1/2" N.F. hex (114-107) nut (129-122) and L.W. (192-20)

4шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102) and L.W. (192-20)

8шт.

BOLT - 5/16" x 3/4" N.F. hex (114-102) nut (129-122) and L.W. (192-20)

4шт.

19

F4055

BOARD - side, platform

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (111-117) nut (129-101) and L.W. (192-14)

7шт.

WASHER - 1/4" flat (195-102)

3шт.

20

F4050

BOARD - floor, #2 from L.H. end

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

2шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

2шт.

21

F4051

BOARD - floor, #3 from L.H. end

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

2шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

2шт.

22

F4052

BOARD - floor, #4 from L.H. end

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

2шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

2шт.

23

F4053

BOARD - floor, center

4шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

8шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

8шт.

24

F4065

BOARD - floor, R.H. end

1шт.

BOLT - 1/4" x 1-1/2" rhd. sq. nk. (11-424) nut (25-104) and L.W. (92-4)

1шт.

SCREW - 1/4" x 1-1/2" N.C. mach. (73-424) nut (25-104) and L.W. (92-4)

2шт.

25

F18932

CLOSURE - for cylinder speed control chain

1шт.

BOLT - 1/4" x 1-1/4" rhd. sq. nk. (111-109) nut (129-101) and L.W. (192-14) fl. wshr. (195-102)

2шт.
