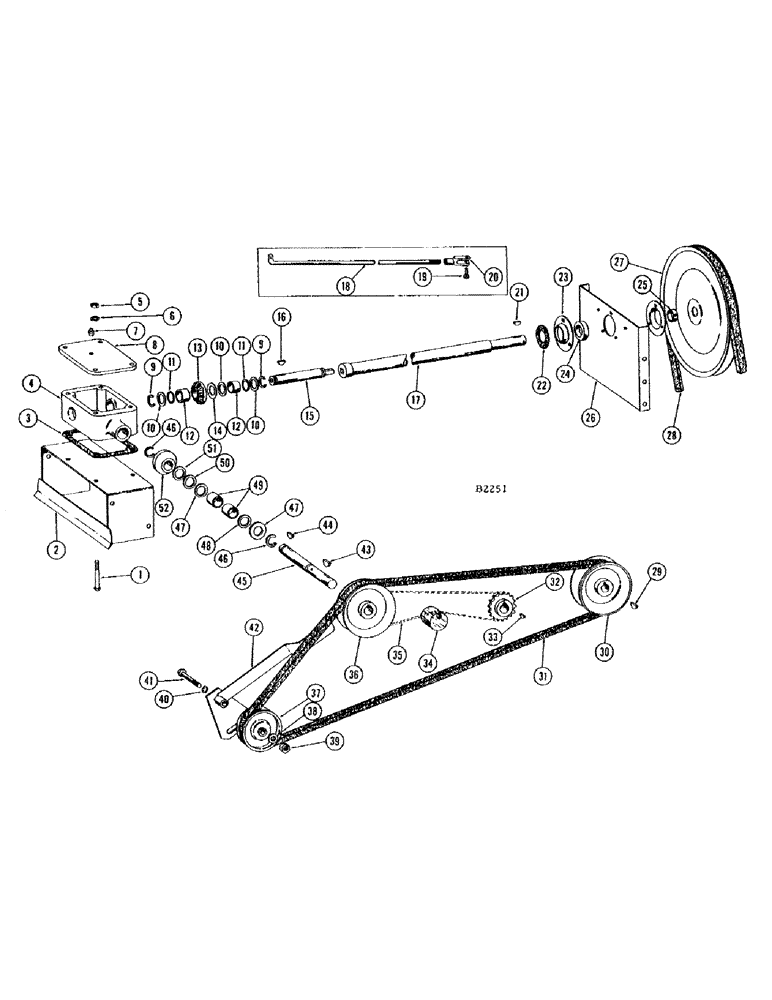

Запчасти Case IH 660 (170) - CONVEYOR DRIVE AND GEAR BOX, 660 SPECIAL COMBINES

1

14-560

BOLT - 5/16" x 3-1/4" N.F. hex, support to gear box

4шт.

2

F84007

MOUNTING - gear box

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5)

2шт.

3

F51110

GASKET

- gear box

2шт.

4

F81407

GEAR BOX - main drive (See note)

1шт.

5

25-115

NUT,5/16"-24, G5

- 5/16" NF (Ref. 1 bolt)

4шт.

6

92-5

LOCK WASHER,5/16"

4шт.

7

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, cover

1шт.

8

F21096

COVER - gear box

1шт.

9

A31221

RING, SNAP

SNAP RING - input drive shaft

2шт.

10

F51641

WASHER

- hardened, input drive shaft

4шт.

11

O6629CH

OIL SEAL - input drive shaft

2шт.

12

F51104

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 19.05mm W

BEARING - input drive shaft

2шт.

13

F21095

GEAR - miter, input drive shaft

1шт.

14

NLS

NO LONGER SERVICED

- 18 ga., input drive shaft

1шт.

15

F21093

SHAFT - input drive

1шт.

16

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

Ref. 13 gear to ref. 15 shaft #91, 1/4" x 3/4"

1шт.

17

F84009

TUBE - conveyor drive

1шт.

18

F21165

CARRIAGE BOLT

ROD - throttle control

1шт.

PIN - cotter, 1/16" x 5/8" (132-6)

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis

1шт.

20

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - throttle rod

1шт.

PIN - clevis, 1/4" (141-2)

1шт.

21

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 27 sheave to drive tube #A, 1/4" x 7/8"

1шт.

22

F21103

SEAL - rubber, drive tube

1шт.

23

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5)

3шт.

24

3074CSA

BALL BEARING

- conveyor drive tube

1шт.

25

F62108

COLLAR

1шт.

26

F21089

PLATE - filler, R.H. side of grain bin

1шт.

BOLT - 5/16" x 1/2" N.F. hex (14-58) nut (25-115) L.W. (92-5)

4шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114) L.W. (92-4)

2шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121) L.W. (192-19)

2шт.

27

F81380

SHEAVE - conveyor drive (Regular - not part of attachment)

1шт.

PIN - cotter, 1/4" x 2-1/2" (132-157)

1шт.

28

N1466

"V" BELT - conveyor drive

1шт.

29

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 30 sheave to discharge drive roller #A, 1/4" x 7/8"

1шт.

30

F84027

SHEAVE - driven, drives discharge belt drive roller

1шт.

PIN - cotter, 3/32" x 2-1/2" (132-101)

1шт.

31

N1225

"V" BELT - drives discharge conveyor roller

1шт.

32

F84016

SPROCKET - (18T) driven, grain bin belt roller

1шт.

PIN - cotter, 3/16" x 2-1/4" (132-101)

1шт.

33

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 32 sprocket to grain bin belt roller #A, 1/4" x 7/8"

1шт.

34

3111/2B

TIGHTENER - chain

1шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-207) nut (129-102) and l.w. (192-20) fl. wshr. (195-521)

1шт.

35

F21162

X

CHAIN - drives grain bin conveyor roller (NSS - See page 7)

1шт.

36

F84017

SHEAVE AND SPROCKET - (18T) conveyor drive, driven

1шт.

PIN - cotter, 3/16" x 2-1/4" (132-101)

1шт.

37

F81408

BEARING

IDLER - belt

1шт.

38

195-33

WASHER,1/2"

- flat, ref. 41 bolt 1/2"

3шт.

39

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex, ref. 41 bolt

1шт.

40

92-8

LOCK WASHER,1/2"

Ref. 41 bolt 1/2"

1шт.

41

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

- 1/2" x 2-1/4" N.F. hex, belt idler

1шт.

42

F84028

LEVER - belt idler

1шт.

43

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 36 sheave and sprocket to driven shaft #A, 1/4" x 7/8"

1шт.

44

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

Ref. 52 gear to ref. 45 shaft #91, 1/4" x 3/4"

1шт.

45

F21094

SHAFT - driven

1шт.

46

A31221

RING, SNAP

SNAP RING - driven shaft

2шт.

47

F51641

WASHER

- hardened, driven shaft

3шт.

48

O6629CH

OIL SEAL - driven shaft

1шт.

49

F51104

NEEDLE BEARING,Needle, 25.4mm ID x 33.35mm OD x 19.05mm W

BEARING - driven shaft

2шт.

50

F51640

CABLE

- 18 ga., driven shaft

1шт.

51

F51108

BEARING - thrust, gear box shafts

2шт.

52

F21095

GEAR - miter, driven shaft

1шт.
