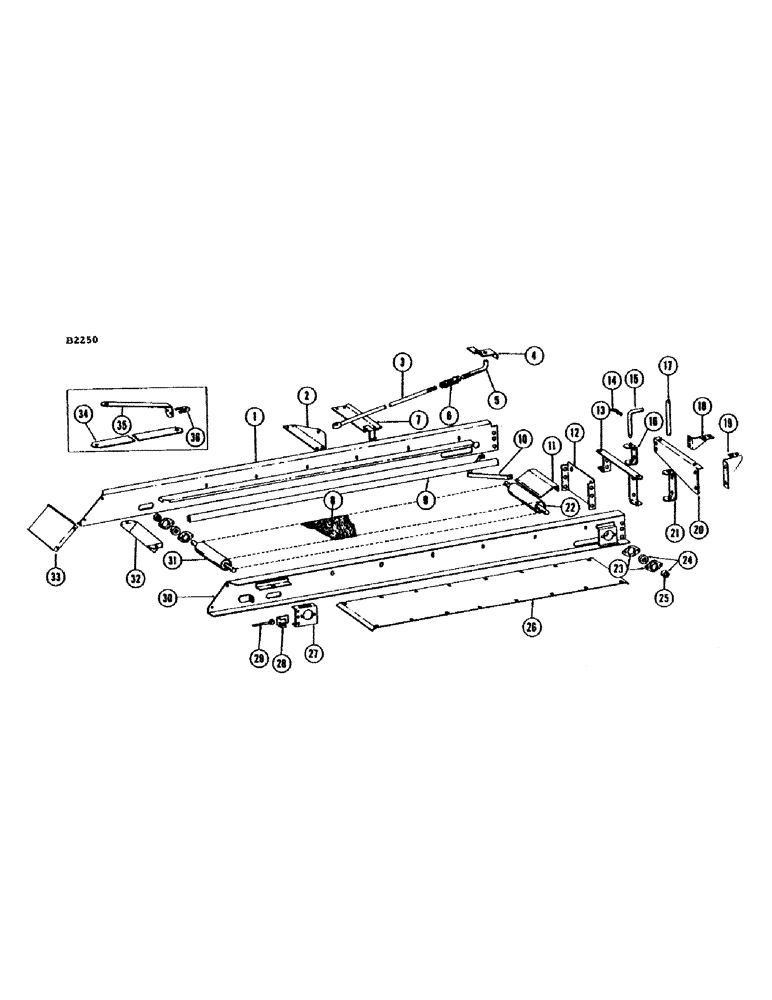

Запчасти Case IH 660 (166) - BELT CONVEYOR ATTACHMENT, GRAIN BIN DISCHARGE, 660 SPECIAL COMBINES

1

F84019

SIDE SHEET - front section

1шт.

2

F21147

ANCHOR - tie rod

1шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115) L.W. (92-5)

4шт.

3

F21159

CARRIAGE BOLT

TIE ROD - lower half

1шт.

BOLT - 1/2" x 1-1/4" N.F. hex (114-400) nut (129-125) and L.W. (192-23)

1шт.

NUT - 1/4" N.F. hex (129-125)

1шт.

4

F21157

BRACKET - top pivot (Bolts to grain bin)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (114-209) nut (129-123) and L.W. (192-21)

1шт.

BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123) and L.W. (192-21)

1шт.

5

F21158

TIE ROD - top half

1шт.

WASHER - 1/2" flat (195-533)

1шт.

PIN - cotter, 3/16" x 1-1/4" (132-93)

1шт.

6

F1688

TURNBUCKLE - tie rods

1шт.

7

F84025

PLATE - stabilizer

1шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115) L.W. (92-5)

4шт.

8

F21164

BELT, Grain Bin Discharge Conveyor

1шт.

9

F84008

CLEAT - seal, grain bin discharge belt

2шт.

NUT - 1/4" N.C. hex (129-101) L.W. (92-4) fl. wshr. (195-18)

12шт.

10

F21141

STRIPPER - grain bin discharge belt

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-115) and L.W. (92-5) fl. wshr. (195-21)

2шт.

11

F84024

EXTENSION - end chute

1шт.

NUT - 5/16" N.F. hex (129-122) L.W. (92-5) fl. wshr. (195-21)

2шт.

F84026

DEFLECTOR - not shown

1шт.

NUT - 5/16" hex (129-102) L.W. (92-5) fl. wshr. (195-21)

2шт.

12

F21137

PLATE - end

1шт.

BOLT - 5/16" x 1/2" N.F. hex (14-58) nut (25-115) L.W. (92-5)

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex (14-720) nut (25-117) L.W. (92-7)

4шт.

13

F84023

ANCHOR - belt conveyors

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex (14-720) nut (25-117) and L.W. (92-7)

4шт.

14

A29054

HAIR PIN COTTER

COTTER - hairpin, for ref. 15 pin

1шт.

15

F21161

CARRIAGE BOLT

PIN - lock

1шт.

16

F21125

HINGE - lock pin

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex (14-720) nut (25-117) and L.W. (92-7)

2шт.

17

F21160

PIN - pivot, conveyor

1шт.

WASHER - 5/8" flat (195-541)

2шт.

PIN - cotter, 3/16" x 1-1/2" (132-102)

2шт.

18

F21123

GUSSET - lock pin

1шт.

BOLT - 3/8" x 7/8" N.F. hex (14-614) nut (25-116) L.W. (92-6)

2шт.

19

F21124

GUSSET - pivot pin

1шт.

BOLT - 3/8" x 7/8" N.F. hex (14-614) nut (25-116) L.W. (92-6)

2шт.

20

F21122

SUPPORT - pin gussets

1шт.

BOLT - 3/8" x 7/8" N.F. hex (14-614) nut (25-116) L.W. (92-6)

2шт.

21

F21126

HINGE - pivot pin

1шт.

BOLT - 7/16" x 1-1/4" N.F. hex (14-720) nut (25-117) L.W. (92-7)

2шт.

22

F84022

ROLLER - drive, grain bin discharge belt conveyor

1шт.

23

F9417

FLANGE

8шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) and L.W. (92-5)

4шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5) fl. wshr. (195-21)

4шт.

24

F90306

BEARING ASSY

BEARING - for rollers

4шт.

25

O4233CS

COLLAR

1шт.

26

F21142

FLOOR - grain bin discharge belt conveyor

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-114) L.W. (92-4)

15шт.

BOLT - 5/16" x 1" N.C. hex (13-516) stop nut (131-4)

1шт.

NUT - 5/16" - 18 wing (129-405) inter. tooth L.W. (193-29)

1шт.

27

F21082

ADJUSTMENT - bearing plate, front and rear

2шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) and L.W. (92-5)

4шт.

28

F21134

COVER - adjusting, roller slot

2шт.

29

F21084

ROD - bearing adjustment

2шт.

BOLT - 3/8" x 7/8" N.F. hex (14-614) nut (25-116) L.W. (92-6)

2шт.

NUT - 3/8" N.C. hex (25-106)

4шт.

30

F84020

SIDE SHEET - rear section

1шт.

WASHER - 3/4" flat (195-45)

1шт.

PIN - cotter, 3/16" x 1-1/4" (132-93)

1шт.

31

F84003

ROLLER - adjusting, grain bin discharge belt conveyor

1шт.

32

F21143

END CHUTE - conveyor

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) and L.W. (92-5)

2шт.

33

F21136

DEFLECTOR - end

1шт.

BOLT - 5/16" x 1/2" rhd. sq. nk. (11-58) nut (25-105) and L.W. (92-5)

4шт.

34

F21163

CARRIAGE BOLT

STRIP - gauge (Used only in replacing seal cleat)

1шт.

35

F21155

CARRIAGE BOLT

BRACE - fold position (Transport only)

1шт.

36

F21156

"U" BOLT - fold position brace

1шт.

NUT - 5/16" N.F. hex (129-122) L.W. (192-20)

2шт.
