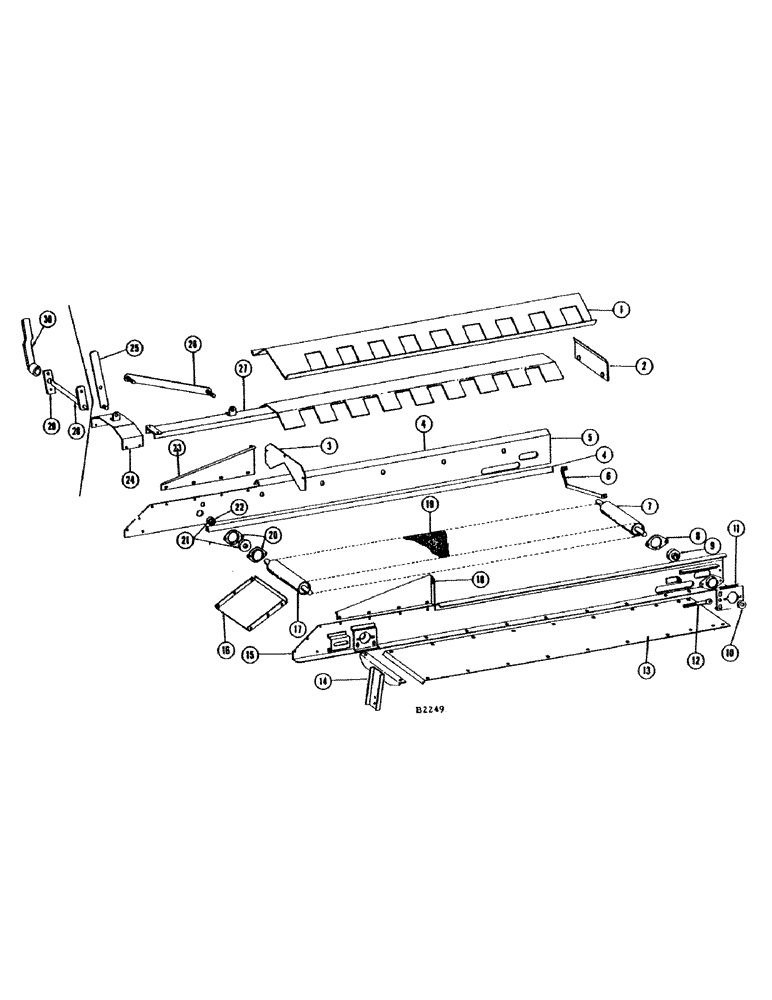

Запчасти Case IH 660 (162) - GRAIN BIN BELT CONVEYOR ATTACHMENT, 660 SPECIAL COMBINES

1

F84011

COVER - grain bin belt conveyor

1шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-510) nut (25-104) L.W. (92-4)

14шт.

NUT - 5/16" N.C. hex (129-102) L.W. (92-5) fl. wshr. (195-21)

2шт.

2

F84012

EXTENSION - upper cover

1шт.

3

F21109

FILLER PLATE - front and rear side plates

1шт.

BOLT - 1/4" x 3/4" N.F. hex (14-412) nut (25-114) L.W. (92-4)

2шт.

WASHER - 1/4" flat (195-18)

4шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121) L.W. (192-19)

1шт.

WASHER - 1/4" flat (195-518)

1шт.

4

F84008

CLEAT - seal, grain bin belt conveyor

2шт.

NUT - 1/4" N.c. hex (129-101) L.W. (92-4) fl. wshr. (195-18)

12шт.

5

F84001

SIDE SHEET - front section

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102) L.W. (192-20)

8шт.

6

F21098

STRIPPER - grain bin belt

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5) fl. wshr. (195-21)

2шт.

7

F84003

ROLLER - adjusting, grain bin belt conveyor

1шт.

8

F9417

FLANGE

4шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) L.W. (92-5)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) L.W. (92-5) fl. wshr. (192-21)

2шт.

9

F90306

BEARING ASSY

BEARING - adjusting roller

2шт.

10

O4233CS

COLLAR

1шт.

11

F21082

ADJUSTMENT - bearing plate, front and rear

2шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) L.W. (92-5)

4шт.

12

F21084

ROD - bearing adjustment

2шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-115) L.W. (92-6)

2шт.

NUT - 3/8" N.C. hex (25-106)

4шт.

13

F21090

FLOOR - grain bin belt conveyor

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) L.W. (92-4)

10шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) L.W. (92-4)

2шт.

14

F84030

SUPPORT - grain bin belt conveyor

1шт.

BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123) L.W. (192-21)

4шт.

WASHER - 3/8" flat (195-525)

2шт.

15

F84002

SIDE SHEET - rear section

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-217) nut (129-102) L.W. (192-20)

8шт.

16

F21097

PLATE - deflector

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

4шт.

17

F84005

ROLLER - drive, grain bin belt conveyor

1шт.

18

F21108

SIDE PLATE - rear

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) L.W. (92-4) fl. wshr. (195-18)

3шт.

19

F21164

BELT, Grain Bin Conveyor

1шт.

20

F9417

FLANGE

4шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105) and L.W. (92-5)

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5) fl. wshr. (192-21)

2шт.

21

F90306

BEARING ASSY

BEARING - belt rollers, drive roller

2шт.

22

O4233CS

COLLAR

1шт.

23

F21107

SIDE PLATE - front

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104) and L.W. (92-4) fl. wshr. (195-18)

3шт.

24

F84010

SUPPORT - unload lever

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104) L.W. (92-4)

2шт.

WASHER - 5/16" flat (195-21)

2шт.

25

F84015

LEVER - unload (Without cab)

1шт.

NUT - 3/8" - 16 stop (131-6) fl. wshr. (195-25)

1шт.

26

F84014

LINK - unload lever

1шт.

NUT - 3/8" - 16 stop (131-6) fl. wshr. (195-25)

2шт.

27

F84013

SHUTTLE - unload lever

1шт.

28

F89233

SHAFT - assy. unload with cab

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

1шт.

29

F23093

PLATE - bearing (Used with F89233)

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex

2шт.

129-121

NUT,1/4"-28, G5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

30

F89234

LEVER - assy. unload with cab

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.
