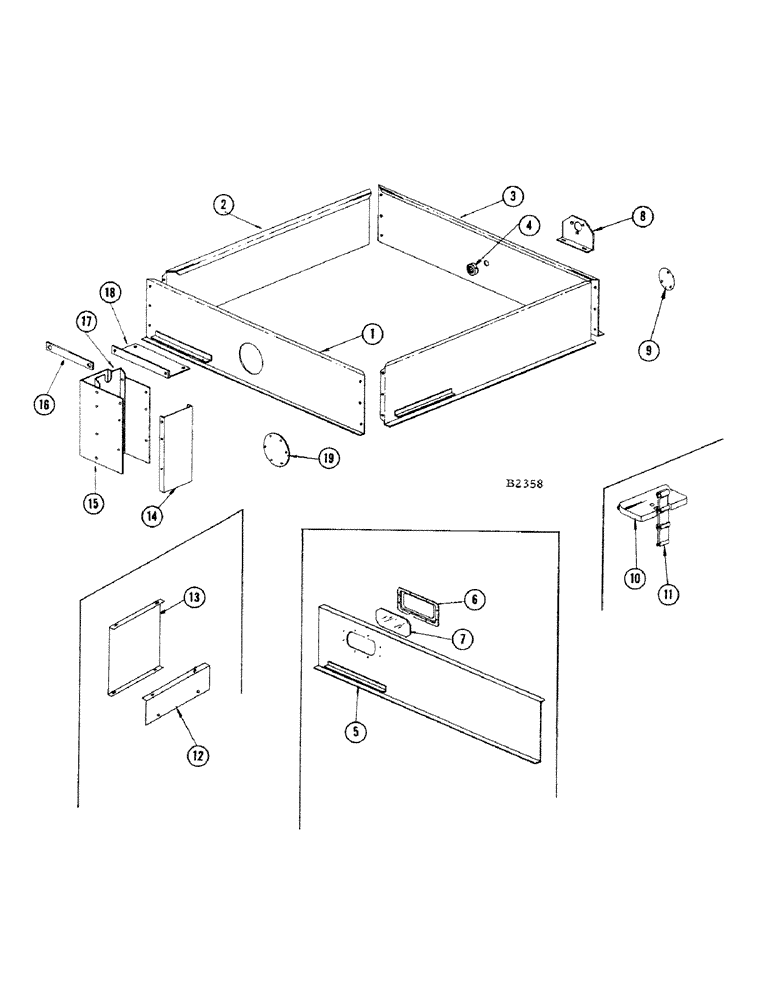

Запчасти Case IH 660 (160) - GRAIN BIN EXTENSION, BEFORE NUMBER 8357001

1

F83816

END SHEET - R.H.

1шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

6шт.

129-122

NUT,5/16"-24, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

2

F83805

SHEET - front and rear

2шт.

3

F83807

END SHEET - L.H. (Without cab)

1шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

6шт.

129-122

NUT,5/16"-24, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

4

O1443CK

COLLAR - leveling auger

1шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8" N.C. socket hd. cupt pt. set

1шт.

5

F84258

END SHEET - L.H. (With cab)

1шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

6шт.

129-122

NUT,5/16"-24, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

6

F40627

FRAME - window

1шт.

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" machine

8шт.

129-17

NUT,Hex, #10 - 24

NUT - 3/16" N.C. hex

8шт.

129-17

NUT,Hex, #10 - 24

NUT - 3/16" N.C. hex

8шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

7

F40628

WINDOW - L.H. side sheet

1шт.

GRAIN ELEVATOR EXTENSION

1шт.

8

F21759

BRACKET - leveling auger, L.H. bearing, grain elevator extension

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut (129-122) L.W. (192-20), grain elevator extension Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

9

F21631

COVER - L.H. end of grain bin, elevator extension

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex and nut (129-121), grain elevator extension

3шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and L.W. (192-19), grain elevator extension

3шт.

10

F83799

EXTENSION - grain elevator chain and flights (NSS - Use 2-F86419 and 1-235-65 att. link)

1шт.

11

F79799

RUBBER FLIGHT

FLIGHT - rubber (Includes F11165, 1-235-65 att. link, 2-235-11 plain links and 2-151-135 rivets), grain elevator extension

4шт.

F86419

CHAIN AND FLIGHTS - (Consists of chain and 2 flights), grain elevator extension

2шт.

F21885

X

EXTENSION - leveling auger drive chain (NSS - See Fig. 7), grain elevator

1шт.

12

F21886

BOLT

EXTENSION - shield, leveling auger drive, grain elevator

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex, grain elevator extension

3шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

3шт.

13

F21695

FILLER - shield, leveling auger drive, grain elevator extension

1шт.

14

F20837

BOTTOM - elevator extension, grain

1шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, grain elevator extension

4шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

4шт.

15

F20835

WRAPPER - elevator extension, grain

1шт.

111-118

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT, CARRIAGE, , Grain elevator extension Short NK, 1/4"-20 x 1/2", G2

8шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Grain elevator extension

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

8шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, grain elevator extension

2шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

2шт.

16

F19347

STRAP - clamp, upper bracket, grain elevator extension

1шт.

114-119

BOLT - 5/16" x 5-3/4" N.F. hex, nut (129-122) L.W. (192-20), grain elevator extension Hex, 5/16"-24 x 5 3/4", G5

2шт.

17

F20836

DIVIDER - elevator extension, grain

1шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, nut (129-121) L.W. (192-19), grain elevator extension

4шт.

18

F22025

BRACKET - upper, grain elevator extension

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

Nut (129-122) L.W. (192-20), grain elevator extension Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

19

F20447

COVER - R.H. end of grain bin, elevator extension

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut (25-114) L.W. (192-19), grain elevator extension

7шт.
