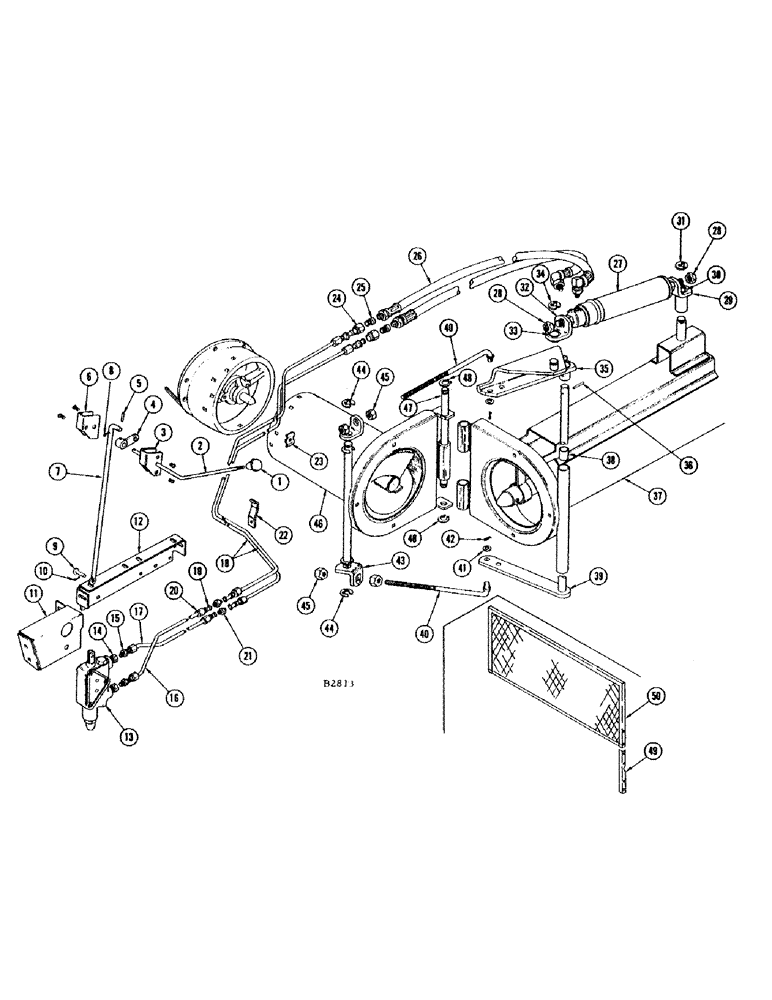

Запчасти Case IH 660 (159C) - HYDRAULIC FOLDING UNLOADING AUGER

1

F5301

KNOB - control lever

1шт.

2

F22976

LEVER - hydraulic close

1шт.

3

F22975

PLOW BOLT

BRACKET - lever, L.H.

1шт.

4

F91843

ARM - control lever

1шт.

5

135-54

ROLL PIN

PIN - drive, 3/16" x 1"

1шт.

6

F22974

BOLT

BRACKET - lever, R.H.

1шт.

7

F20793

ROD - close lever

1шт.

8

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.

9

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

10

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

11

F22966

BOLT

BRACKET - valve mounting, R.H. front

1шт.

12

F22965

BOLT

BRACKET - valve mounting, R.H. rear

1шт.

13

F94386

VALVE

1шт.

14

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

FITTING - reducer, 3/8" x 1/4"

2шт.

15

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING - connector

2шт.

16

F22967

BOLT

LINE - hydraulic, folded port

1шт.

17

F22967

BOLT

LINE - hydraulic, engage port

1шт.

18

F22969

BOLT

LINE - hydraulic, rear (Grain combine)

2шт.

18

F22971

BOLT

LINE - hydraulic, rear (660 special)

2шт.

19

218-361

SLEEVE,37 Degree, 1/4" Tube

- (Part of hydraulic lines)

1шт.

20

218-341

TUBE NUT,37 Degree, 7/16"-20, Type B

NUT - (Part of hydraulic lines)

1шт.

21

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

2шт.

22

F22970

BOLT

CLIP - line

1шт.

23

F12067

CLIP - line

1шт.

24

218-343

TUBE NUT,37 Degree, 9/16"-18, Type B

NUT - tube

2шт.

25

218-790

REDUCER,37 Degree, 3/8" x 1/4" Tube

FITTING - reducer

2шт.

26

F12430

HOSE - hydraulic

2шт.

27

F87848

CYLINDER - hydraulic (See page 292)

1шт.

28

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

29

F94404

BRACKET - swivel

1шт.

30

F22994

BUSHING

2шт.

31

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

32

F94402

BRACKET - swivel (Front)

1шт.

33

F22994

BUSHING

1шт.

34

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

35

F94399

LINK - control, upper

1шт.

36

135-55

GROOVED PIN,3/16" x 1 1/4", Type A

PIN - driveloc, 3/16" x 1-1/4"

1шт.

37

F94393

TUBE - discharge (Grain combine) 20.31, 27.25" L

1шт.

37

F94406

TUBE - discharge (660 special)

1шт.

38

T10814

BUSHING

2шт.

39

F94397

LINK - control, lower

1шт.

40

F94400

ROD - discharge clamp

2шт.

41

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

42

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

43

F22984

BRACKET - swivel plate pivot

2шт.

44

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

4шт.

45

25-118

NUT,1/2"-20, G5

- 1/2" N.F. hex

4шт.

46

F94378

TUBE - middle auger (Grain combine)

1шт.

46

F94381

TUBE - grain bin auger (660 special)

1шт.

47

F22985

PIN - hinge

1шт.

48

A33531

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

49

F41871

BRACE - Hydraulic discharge auger shield (Without cab)

1шт.

50

F89231

SHIELD - Hydraulic discharge auger (Without cab)

1шт.
