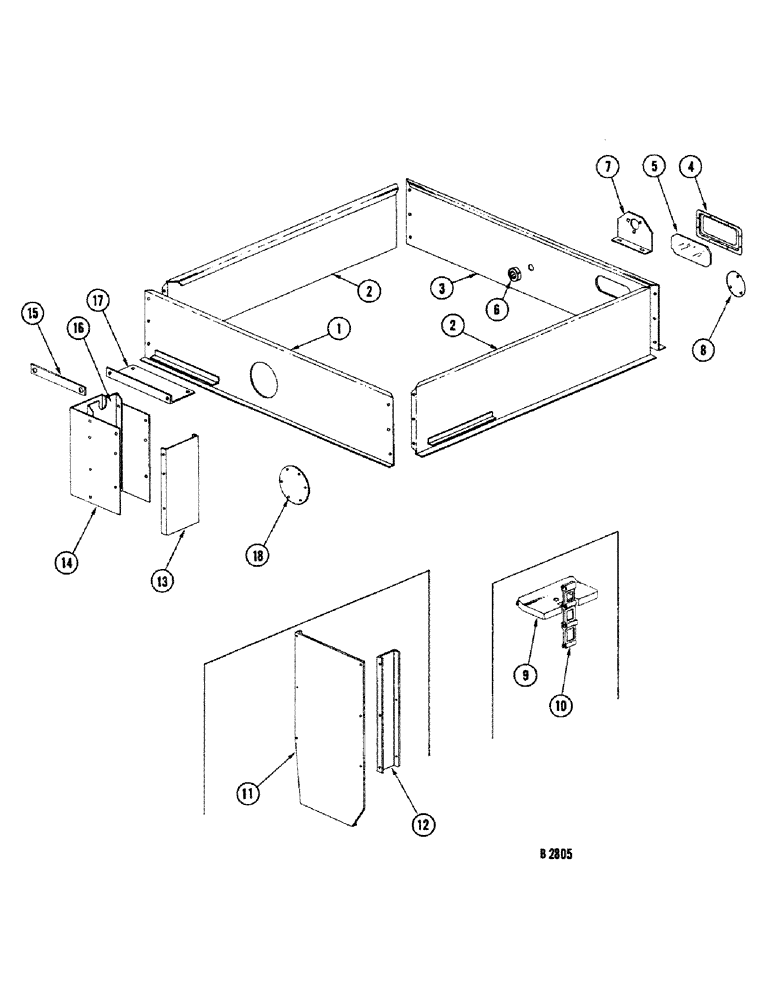

Запчасти Case IH 660 (159A) - GRAIN BIN EXTENSION, NUMBER 8357001 AND AFTER

1

F92737

END SHEET - R.H.

1шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

6шт.

129-122

NUT,5/16"-24, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

2

F83805

SHEET - front and rear

2шт.

3

F92739

END SHEET - L.H.

1шт.

114-108

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5, Full Thd

- 5/16" x 1/2" N.F. hex

6шт.

129-122

NUT,5/16"-24, G5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

4

F40627

FRAME - window

1шт.

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" machine

8шт.

129-17

NUT,Hex, #10 - 24

NUT - 3/16" N.C. hex

8шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

8шт.

5

F40628

WINDOW - L.H. side sheet

1шт.

6

O1443CK

COLLAR - leveling auger

1шт.

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - 3/8" N.C. socket hd. cup pt. set

1шт.

GRAIN ELEVATOR EXTENSION

1шт.

7

F22793

PLOW BOLT

BRACKET - leveling auger, L.H. bearing, grain elevator extension

1шт.

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Grain elevator extension Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

129-122

NUT,5/16"-24, G5

Grain elevator extension 5/16"-24, G5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 5/16"

2шт.

8

F21631

COVER - L.H. end of grain bin, elevator extension

1шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex and nut (129-121), grain elevator extension

3шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and L.W. (192-19), grain elevator extension

3шт.

9

F92741

EXTENSION - grain elevator chain and flights (NSS - use 2-F78446 and 1-235-65 att. link)

1шт.

10

F78446

FLIGHT - rubber (Consists of chain and 2 flights), grain elevator extension

2шт.

F22829

EXTENSION - leveling auger drive chain (NSS - see page 7), grain elevator

1шт.

11

F22142

SHIELD - leveling auger, grain elevator extension

1шт.

12

F22141

SUPPORT - shield, front and rear, grain elevator extension

2шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. machine, grain elevator extension

6шт.

131-129

NUT

- 1/4" type "J" Tinnerman, grain elevator extension

6шт.

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4" x 3/4" N.F. hex, grain elevator extension

4шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

4шт.

13

F22827

BOTTOM - elevator extension, grain

1шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, grain elevator extension

4шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

4шт.

14

F22825

WRAPPER - elevator extension, grain

1шт.

111-118

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT, CARRIAGE, , Grain elevator extension Short NK, 1/4"-20 x 1/2", G2

12шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Grain elevator extension

12шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

12шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, grain elevator extension

2шт.

129-121

NUT,1/4"-28, G5

Grain elevator extension 1/4"-28, G5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Grain elevator extension 1/4"

2шт.

15

F19347

STRAP - clamp, upper bracket, grain elevator extension

1шт.

114-119

BOLT - 5/16" x 5-3/4" N.F. hex, nut (129-122) L.W. (192-20), grain elevator extension Hex, 5/16"-24 x 5 3/4", G5

2шт.

16

F22826

DIVIDER - elevator extension, grain

1шт.

114-9

SCREW

BOLT - 1/4" x 3/8" N.F. hex, nut (129-121) L.W. (192-19), grain elevator extension

4шт.

17

22831

HYDRAULIC HOSE,0.38" ID x 180.00", SAE J517, SAE J516, SAE J846, SAE J1273

BRACKET - upper, grain elevator extension

1шт.

114-105

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

Nut (129-122) L.W. (192-20), grain elevator extension Hex, 5/16"-24 x 5/8", G5, Full Thd

2шт.

18

F22700

COVER - R.H. end of grain bin, elevator extension

1шт.

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4" x 5/8" rhd. sq. nk., nut (129-101) L.W. (192-19), grain elevator extension

7шт.
