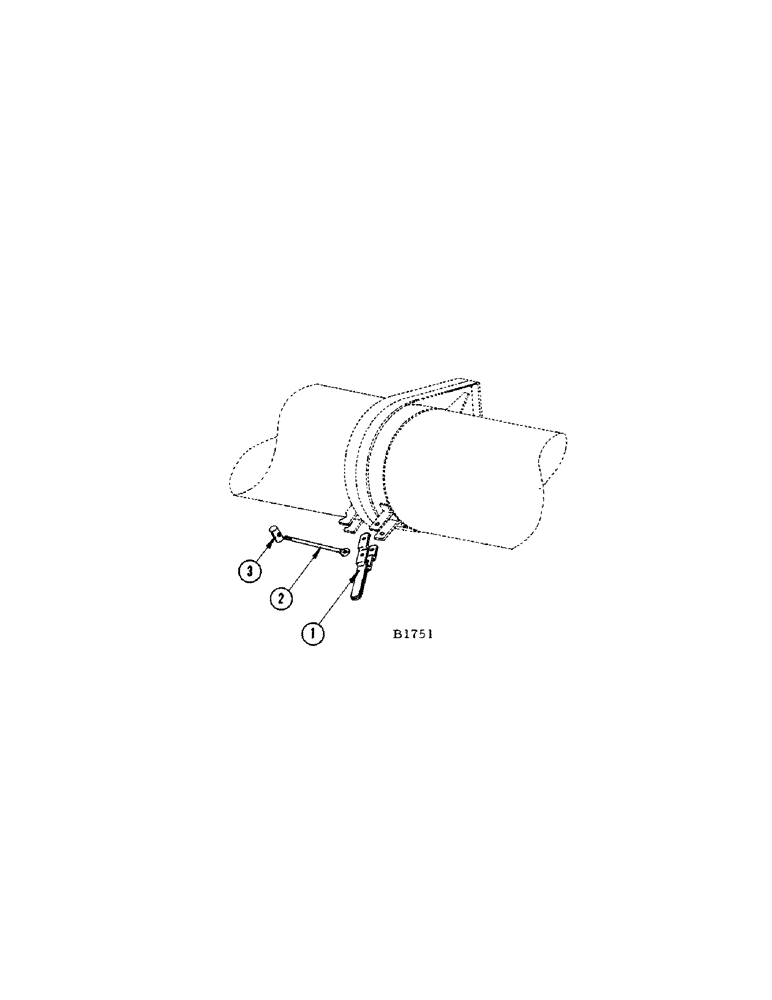

Запчасти Case IH 660 (158[A]) - MANUAL FOLD UNLOADING AUGER LATCH

1

F79141

HANDLE - latch

2шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

4шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. Flexloc

4шт.

2

F11524

ROD - handle

2шт.

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8" x 1-1/2" N.F. hex

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-123

NUT,3/8"-24, G5

4шт.

3

F11525

BLOCK - latch handle rod

2шт.
