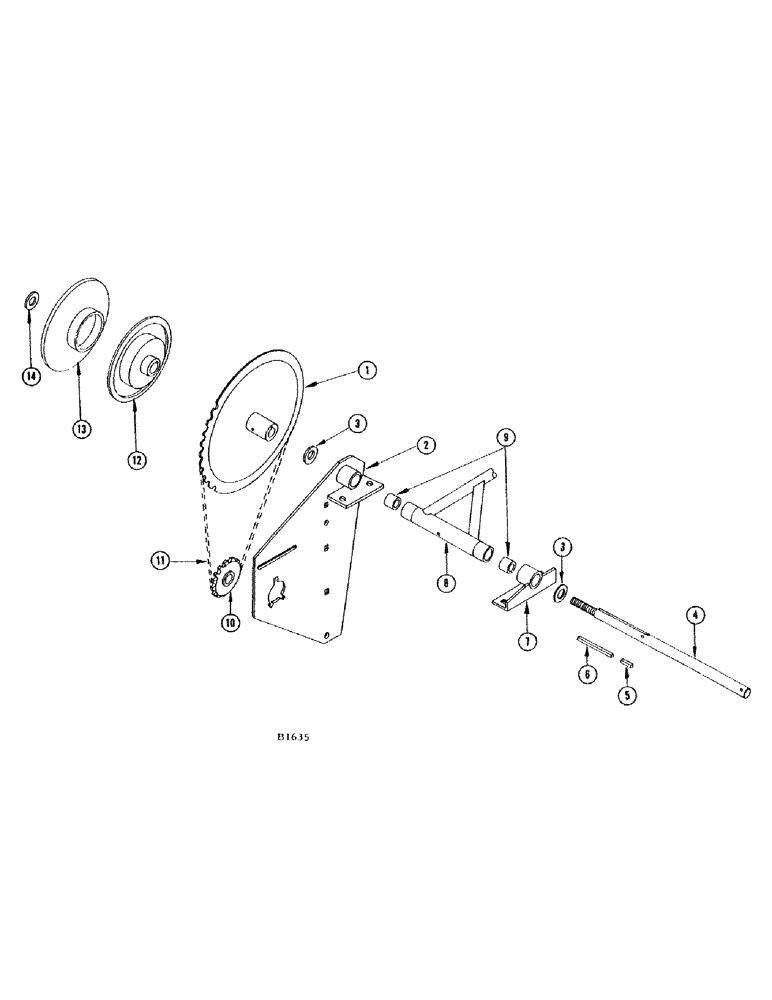

Запчасти Case IH 660 (018) - REEL DRIVE JACKSHAFT

1

F81760

SPROCKET - reel drive, 60T (19-31 RPM with 15T and 28-45 RPM) with 22T sprockets)

1шт.

F81832

SPROCKETS - reel drive, 86T (13-21 RPM with 15T sprocket slow reel speed attachment)

1шт.

PIN - cotter 3/16" x 2" (132-97)

1шт.

2

F91934

BRACKET - L.H. outer pivot (Replaces F83333 when stocks are exhausted)

1шт.

F83333

BRACKET - L.H. outer pivot (Replaced by F91934 when stocks are exhausted)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-510) nut (25-114)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.

3

O906B

WASHER

- jackshaft

1шт.

4

F15845

JACKSHAFT - reel drive

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

NUT - 3/4" N.F. jam (25-1512)

1шт.

5

O1045B

KEY

- reel driven, Serial Range: sheaves-jackshaft

1шт.

6

F8896

KEY - reel driven, Serial Range: sheaves-jackshaft

1шт.

7

F81277

BRACKET

- L.H. inner pivot (10 ft. hdr.)(Exh. stock then use F89281)

1шт.

F89281

BRACKET

- L.H. inner pivot (10 ft. hdr.) (Replaces F81277 when stock exh.)

1шт.

F40563

SPACER - mounting angle

1шт.

F91935

BRACKET - L.H. inner pivot (13 ft. and 14 ft. header) Replaces F82620 when stocks are exhausted

1шт.

F82620

BRACKET - L.H. inner pivot (13 ft. and 14 ft. header) Replaced by F91935 when stocks are exhausted

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

8

F82527

ARM - reel support, L.H.

1шт.

9

A31082

BUSHING

2шт.

FITTING - grease 1/4"-28 thrd. (219-8)

1шт.

10

F92664

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (On main hdr. drive jackshaft) #8357001 and after (Exh. stock then use F89318)

1шт.

F89318

SPROCKET ASSY.

SPROCKET - (22T) (Replaces F92664 when exh.)

1шт.

F82850

DRIVEN SPROCKET

SPROCKET - (22T) reel drive (On main hdr. drive jackshaft) Before #8357001

1шт.

F92661

SPROCKET - (15T) reel drive (On main hdr. drive jackshaft) #8357001 and after (Exh. stock then use F89317)

1шт.

F89317

SPROCKET - (15T) reel drive (Replaces F92661 when exh.)

1шт.

F82898

SPROCKET ASSY.

SPROCKET - (15T) reel drive (On main hdr. drive jackshaft) Before #8357001

1шт.

F82851

SPROCKET ASSY.

SPROCKET - (27T) pick-up drive (On main hdr. drive jackshaft) (Exh. stock then use F89316)

1шт.

F89316

SPROCKET ASSY.

SPROCKET - (27T) pick-up drive (On main hdr. drive jackshaft) (Replaces F82851 when exh.)

1шт.

11

F17456

X

CHAIN - drives reel jackshaft (NSS - see page 7)

1шт.

F17924

X

CHAIN - drives reel jackshaft (NSS - see page 7)

1шт.

F17514

X

CHAIN - short extension (NSS - see page 7)

1шт.

F17484

X

CHAIN - short extension, slow reel speed attachment (NSS - see page 7)

1шт.

12

F1313

SHEAVE

HALF - reel drive

1шт.

13

F1572

SHEAVE HALF - reel drive

1шт.

FITTING - grease 1/8" str. (129-1)

1шт.

14

F20276

WASHER - L.H. end of jackshaft

1шт.
