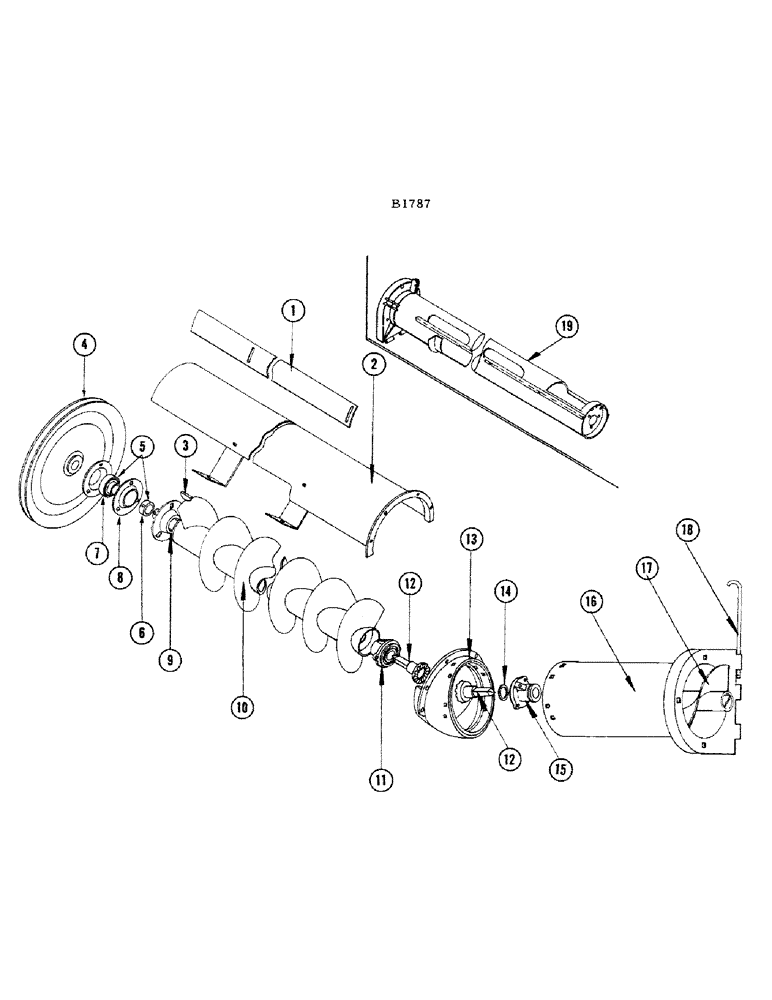

Запчасти Case IH 660 (156) - GRAIN BIN AUGER

1

F18565

COVER - slot

2шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut (25-104)

4шт.

WASHER - 1/4" flat (95-18) L.W. (92-4)

4шт.

2

F82396

COVER - auger

1шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115) L.W. (92-5)

4шт.

3

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 4 sheave to auger #A, 1/4" x 7/8", HT

1шт.

4

F81380

SHEAVE - grain bin auger drive, driven

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

5

3074CSA

BALL BEARING

- auger, R.H. end (660 special)

1шт.

6

F62108

COLLAR

1шт.

7

B16267

BEARING, BALL

BEARING - auger, R.H. end (Grain combine)

1шт.

F10138

COLLAR

1шт.

8

B18282

FLANGE

- ref. 5 bearing

2шт.

9

F17052

SHIELD - dust, bearing

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

3шт.

10

F82929

AUGER - grain bin (Grain combine)

1шт.

F82234

AUGER - grain bin (660 special) (Before #8357001)

1шт.

F94240

AUGER - grain bin (660 special) (#8357001 and after)

1шт.

11

F88209

CAP - inner (Replaces F82641 when stocks are exhausted)

1шт.

F14591

BUSHING - for F88209 cap (Not shown)

1шт.

F82641

CAP

- inner (Replaced by F88209 when stocks are exhausted)

1шт.

F17053

BEARING

BUSHING - for F82641 cap (Not shown)

1шт.

12

F1491

GEAR

- (13T) bevel, discharge auger drive

2шт.

13

F1575

GEAR BOX - grain bin

1шт.

210-55

FITTING - grease 1/8", 90 degrees

1шт.

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16" x 5/8" rhd. sq. nk. and nut (25-105)

12шт.

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

and L.W. (193-9) Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

14

F17801

WASHER - thrust, gear box

1шт.

15

F82642

CAP - bearing, gear box outer

1шт.

F17054

FLANGED BEARING

BUSHING - Not shown

1шт.

16

F82795

TUBE - middle (Manual fold auger)

1шт.

16

F94378

TUBE - middle (Hydraulic fold auger)

1шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

12шт.

17

F82398

AUGER - middle (Before #8357001)

1шт.

17

F94230

AUGER - middle (#8357001 and after)

1шт.

18

F6685

PIN - hinge (Manual fold auger)

1шт.

19

F83457

TUBE - auger (660 special) (Manual fold auger)

1шт.

19

F94381

TUBE - auger (660 special) (Hydraulic fold auger)

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

2шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114)

2шт.
