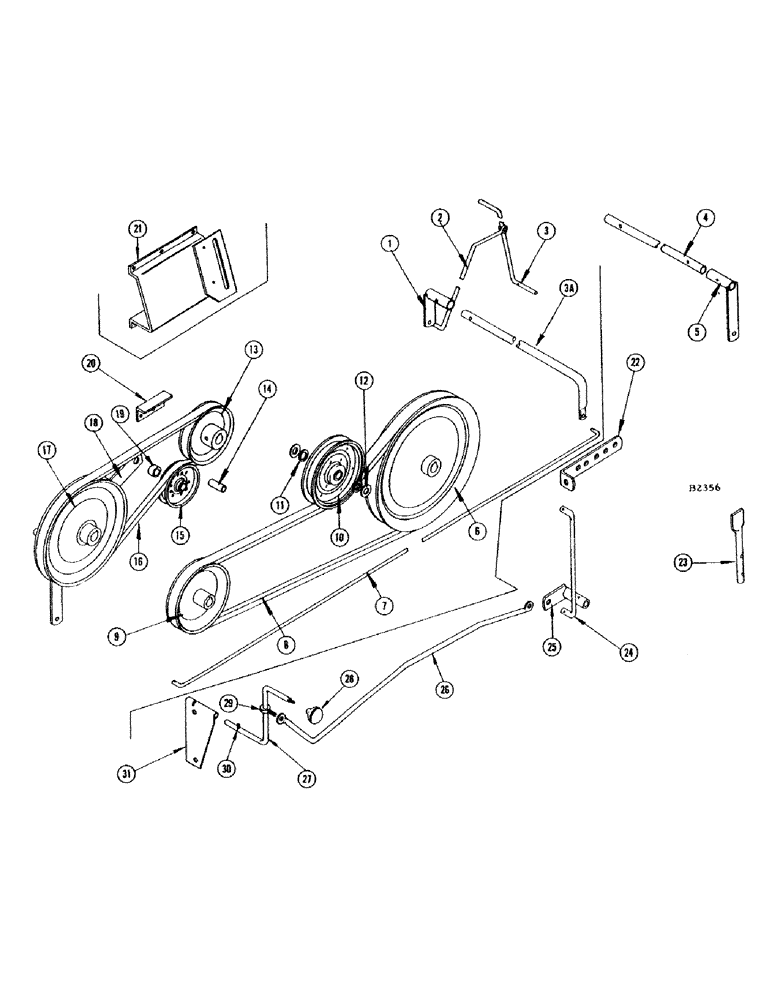

Запчасти Case IH 660 (154) - GRAIN BIN DISCHARGE AUGER, DRIVE AND THROWOUT

1

F81729

ARM - hub, L.H. throwout linkage (Grain combine)

1шт.

2

F17068

SCREW

ROD - upper control (Grain combine)

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

1шт.

3

F84351

LEVER - unloading (Grain combine)

1шт.

BOLT - 1/4" x 7/8" N.F. hex (14-414) jam nut (25-154)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

3a

F91845

ARM - hub, R.H. throwout linkage (#8309001 and after)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

4

F17063

SCREW

PIPE - pivot, grain bin unloading (Before #8309001)

1шт.

5

F81381

ARM - hub, R.H. throwout linkage (Before #8309001)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

6

F81380

SHEAVE - grain bin discharge auger drive, driven

1шт.

PIN - cotter 1/4" x 2-1/2" (132-157)

1шт.

7

F17066

SCREW

ROD - lower control (Grain combine)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

2шт.

8

F17082

V-BELT

"V" BELT - grain bin discharge auger drive (Grain combine)

1шт.

O2213BD

"V" BELT - grain bin discharge auger drive (660 special)

1шт.

9

F81386

SHEAVE - drives discharge auger (Grain combine)

1шт.

SCREW - 3/8" x 3/4" N.C. cup pt. set (85-612) jam nut (25-146)

1шт.

F82309

SHEAVE - drives discharge auger (660 special combine) (Replaced by F81386 when stocks are exhausted)

1шт.

SCREW - 3/8" x 3/4" N.C. cup pt. set (85-612) jam nut (25-146)

1шт.

10

F17080

PULLEY

IDLER - discharge auger drive belt

1шт.

BOLT - 1/2" x 2-1/4" rhd. sq. nk. (11-826) and dbl. jam nut (25-148)

1шт.

11

A26462

WASHER

- ref. 10 idler

2шт.

12

F62050

WASHER - ref. 10 idler

2шт.

13

F1639

SHEAVE - drives grain bin auger drive jackshaft

1шт.

138-14

LOCK PIN,1/16" x 1", Slotted

PIN - cotter 1/4" x 1-3/4"

1шт.

14

F17356

SPACER - ref. 13 sheave

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-544) nut (25-115)

1шт.

15

F22688

PLOW BOLT

IDLER - secondary drive (Replaces F52873)

1шт.

15

F52873

PULLEY

IDLER - Replaced by F22688 when stock exhausted

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex (14-1036) dbl. nut (25-1510)

1шт.

16

F19581

BELT

"V" BELT - grain bin secondary jackshaft drive

1шт.

17

F81385

SHEAVE - grain bin jackshaft drive

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (65-612) and jam nut (25-146)

1шт.

18

F81388

ARM - idler

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

19

V13384

SPACER - for F52873

1шт.

19

195-41

WASHER,5/8"

- SAE std. flat (For F22688 idler) 5/8"

1шт.

20

F20332

GUIDE - ref. 16 belt

1шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)

1шт.

WASHER - 5/16" flat (95-5)

2шт.

21

F82310

BRACKET - idler, grain bin drive (660 special combine)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

22

F18372

LINK - adjusting, auger drive throwout (660 special)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) dbl. jam nut (25-155)

1шт.

23

F18388

SUPPORT - auger trough (660 special combine)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut (25-116)

2шт.

WASHER - 3/8" flat (95-6) L.W. (92-6)

2шт.

24

F18232

ROD - lower, throwout control (660 special combine)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

2шт.

25

F81729

ARM - L.H. throwout linkage (660 special combine)

1шт.

26

F21345

ROD - front control (660 special combine)

1шт.

27

F21344

LEVER - unloading (660 special combine)

1шт.

28

A26727

BALL

KNOB - ref. 27 lever

1шт.

29

F10117

COLLAR - ref. 27 lever

1шт.

30

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

31

F21343

BRACKET - unloading lever (660 special combine)

1шт.
