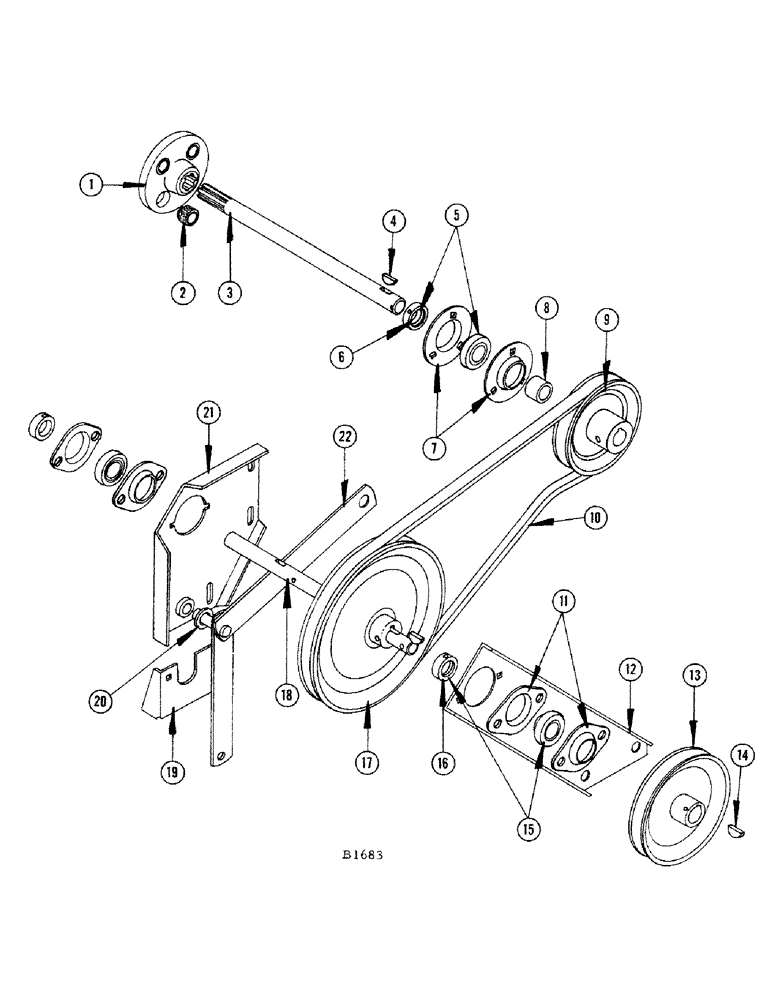

Запчасти Case IH 660 (152) - GRAIN BIN AUGER DRIVE JACKSHAFT

1

G36217

HUB ASSY.

COUPLING - flexible, primary drive jackshaft

1шт.

2

G36905

BLOCK

BUSHING

4шт.

BOLT - 7/16" x 1-1/4" N.C. hex (13-720) L.W. (92-7)

4шт.

3

F22187

JACKSHAFT - grain bin primary drive (Used with gasoline engine)

1шт.

F17070

SHAFT

JACKSHAFT - grain bin primary drive (Used with diesel engine)

1шт.

4

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 9 sheave #A, 1/4" x 7/8", HT

1шт.

5

3074CSA

BALL BEARING

1шт.

6

F62108

COLLAR

1шт.

7

B18282

FLANGE

- for ref. 5 bearing

2шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

3шт.

8

B18283

SPACER

- sheave

1шт.

9

F1639

SHEAVE - drives grain bin auger drive jackshaft

1шт.

138-14

LOCK PIN,1/16" x 1", Slotted

PIN - roll 1/4" x 1-3/4"

1шт.

10

F19581

BELT

"V" BELT - grain bin secondary jackshaft drive

1шт.

11

F9417

FLANGE

- ref. 15 bearing

4шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105) and L.W. (92-5)

4шт.

12

F17804

BRACKET - grain bin jackshaft bearing, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

2шт.

13

F81386

SHEAVE - drives grain bin discharge auger (Grain combine)

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612) and jam nut (25-146)

1шт.

F82309

SHEAVE - drive grain bin discharge auger (660 special) (Replaced by F81386 when stocks are exhausted)

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612) and jam nut (25-146)

1шт.

14

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 13 and ref. 17 #A, 1/4" x 7/8", HT

2шт.

15

F90306

BEARING ASSY

BEARING

2шт.

16

O4233CS

COLLAR

1шт.

17

F81385

SHEAVE - jackshaft drive, driven

1шт.

SCREW - 3/8" x 3/4" N.C. sq. hd. cup pt. set (85-612) and jam nut (25-146)

1шт.

18

F17802

JACKSHAFT - grain bin secondary drive

1шт.

19

F17803

BRACKET - reinforcement

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

2шт.

20

F62210

WASHER

- ref. 22 arm stud

1шт.

21

F81384

BRACKET - grain bin unloader

1шт.

FITTING - (219-8)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

2шт.

22

F81388

ARM - idler, grain bin drive

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.
