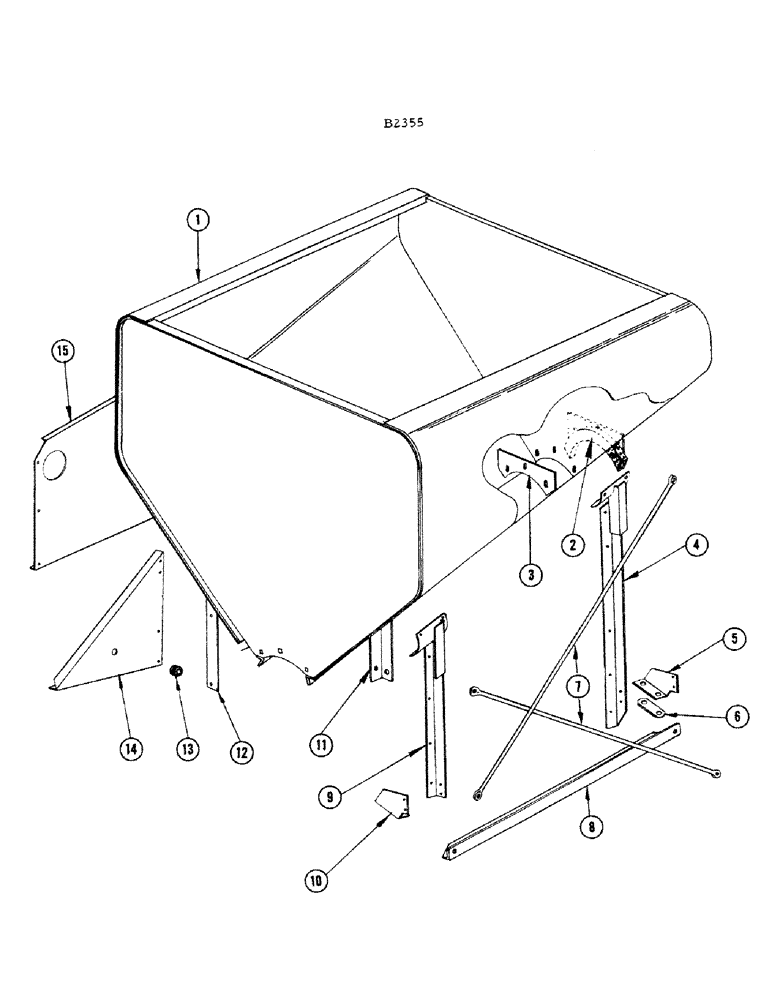

Запчасти Case IH 660 (150) - GRAIN BIN, 660 SPECIAL COMBINES
№
Артикул
Название
Примечание
Количество
1
F84353
GRAIN BIN
1шт.
BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)
7шт.
BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115)
16шт.
2
F82233
SEAL - felt, L.H. head
1шт.
BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)
3шт.
3
F18345
RETAINER - felt seal
1шт.
4
F83353
POST - L.H. front
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
4шт.
BOLT - 3/8" x 1-1/4" N.F. hex (14-620) dbl. nut (25-116)
1шт.
BOLT - 1/2" x 1-1/4" N.F. hex (14-824) dbl. nut (25-118)
1шт.
5
F19505
GUSSET - lower, L.H. front post
1шт.
BOLT - 3/8" x 3/4" N.F. hex (14-614) nut 925-116)
2шт.
BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116)
2шт.
6
F19506
SPACER - gusset, L.H. post
1шт.
7
F18216
BRACE - diagonal, front posts
2шт.
BOLT - 3/8" x 1-1/4" N.F. hex (14-620) dbl. nut (25-116)
2шт.
8
F18387
PIN
BRACE - horizontal, front posts
1шт.
BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116)
2шт.
9
F83352
POST - R.H. front
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
4шт.
BOLT - 3/8" x 1-1/4" N.F. hex (14-620) dbl. nut (25-116)
1шт.
BOLT - 1/2" x 1-1/2" N.F. hex (14-824) dbl. nut (25-118)
1шт.
10
F19504
GUSSET - lower, R.H. front post
1шт.
BOLT - 3/8" x 3/4" N.F. hex (14-614) nut (25-116)
2шт.
11
F82304
POST - L.H. rear
1шт.
BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)
5шт.
12
F82302
POST - R.H. rear
1шт.
BOLT - 7/16" x 7/8" N.F. hex (14-714) nut (25-117)
3шт.
BOLT - 7/16" x 1" N.F. hex (14-716) nut (25-117)
4шт.
BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)
4шт.
13
F9629
GROMMET - for electrical harness
1шт.
14
F18218
GUSSET - R.H. rear post
1шт.
BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)
4шт.
15
F20076
SHEET - rear, grain bin posts
1шт.
BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)
1шт.
BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)
4шт.
Выбрано товаров: 36
