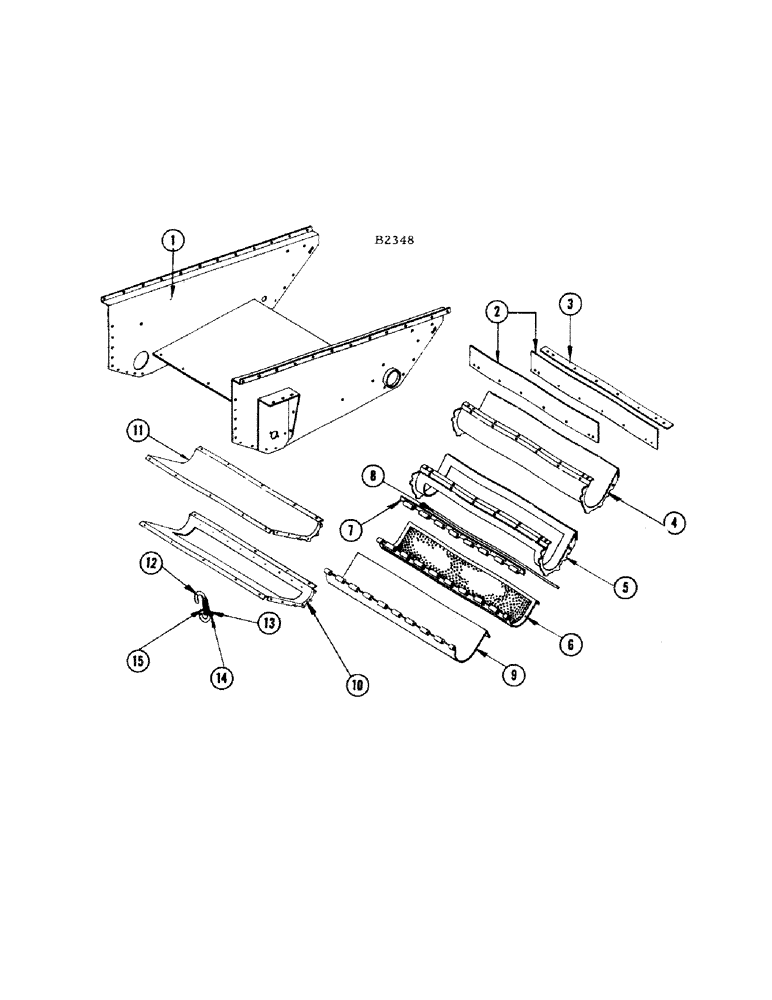

Запчасти Case IH 660 (148) - GRAIN AND TAILINGS AUGER TROUGH

1

F84307

EXTENSION - side sheet

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

31шт.

2

F21446

SEAL - front and rear, for ref. 4 or ref. 5

2шт.

BOLT - 1/4" x 3/4" N.F. hex (14-412) nut (25-114)

7шт.

3

F21447

STRIP - bolting, for ref. 4 or ref. 5

1шт.

BOLT - 1/4" x 3/4" N.F. hex (14-512) nut (25-114)

9шт.

4

F21455

TROUGH - (Solid) tailings auger

1шт.

5

F84311

TROUGH - (Perforated) tailings auger

1шт.

6

F82213

DOOR - (Perforated) grain and tailings auger trough

2шт.

7

F17709

HING - bolting, for ref. 6 or ref. 9 doors

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (75-48) nut (25-104)

14шт.

8

F17710

ROD - hinge, for bolting hinge

2шт.

9

F82214

DOOR - (Solid) grain and tailings auger

2шт.

10

F84309

TROUGH - (Perforated) grain auger

1шт.

11

F16058

TROUGH - (Solid) grain auger

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

10шт.

12

F17706

ROD - latch, for ref. 10 trough

3шт.

PIN - cotter 3/32" x 5/8" (132-25)

3шт.

F22075

ROD - latch, for ref. 5 trough

3шт.

PIN - cotter 3/32" x 5/8" (132-25)

3шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

6шт.

14

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

6шт.

15

F62245

SPRING

- latch rod

6шт.
