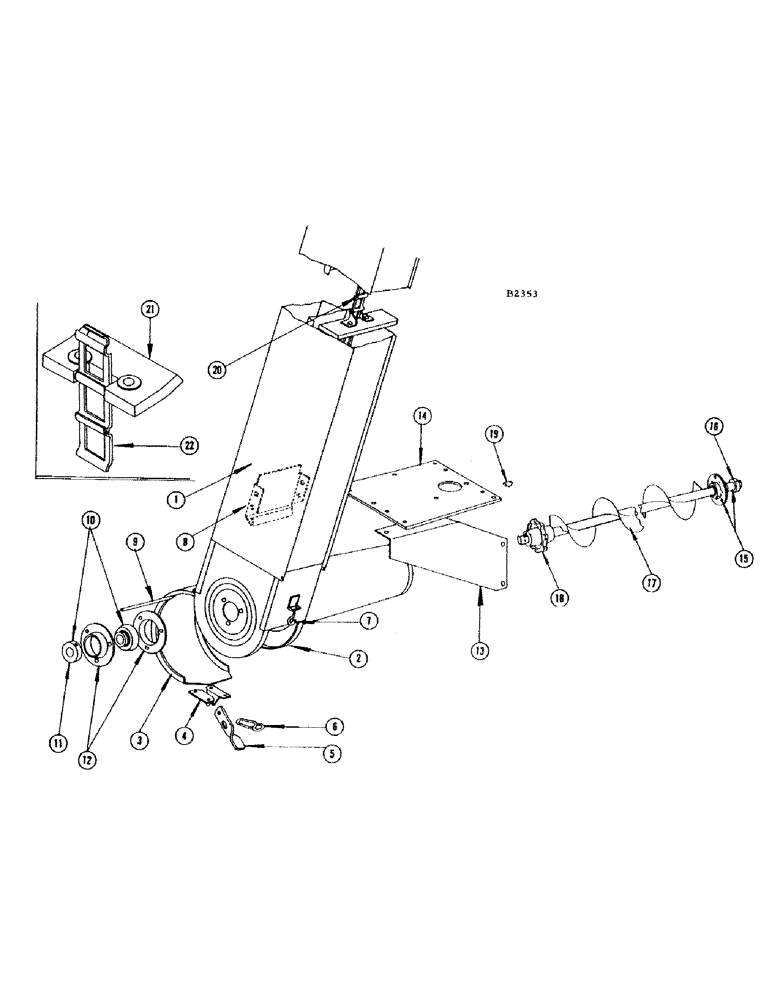

Запчасти Case IH 660 (142) - GRAIN ELEVATOR, BEFORE NUMBER 8357001

1

F82359

BODY - grain elevator (Grain bin and bagger combines)

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

7шт.

25-104

NUT,1/4"-20, G5

7шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 1/4" flat

7шт.

F81610

DOOR - hinge pin type (See F85504) (Includes ref. 4 and 5)

1шт.

2

F85504

KIT - repair, lower head

1шт.

3

F83954

DOOR - lower

1шт.

4

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

5

O313CS

HANDLE - latch

1шт.

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

6

O316CS

SPRING - latch handle

1шт.

7

O315CS

HOOK - latch

1шт.

8

F40600

EXTENSION - divider

1шт.

9

O309CS

PIN - hinge, lower head cover

1шт.

10

F94134

HOUSING ASSY.

BEARING - R.H.

1шт.

11

F52076

COLLAR

1шт.

12

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" lock

3шт.

92-5

LOCK WASHER,5/16"

3шт.

13

F17695

SUPPORT - lower

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

92-5

LOCK WASHER,5/16"

3шт.

14

F17696

PLATE - support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

92-5

LOCK WASHER,5/16"

LOCKWASHER - 1/4"

1шт.

14-417

BOLT - 1/4" x 3/4" N.F. hex

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

F78749

COLLAR

BEARING - L.H.

1шт.

16

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

17

F84395

AUGER - cross

1шт.

18

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

19

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

20

F82402

X

CHAIN AND FLIGHTS - (NSS - Use 1-F79799 flight, 1-F86423 and 1-F86425)

1шт.

21

F79799

RUBBER FLIGHT

FLIGHT - rubber (Includes F11165 flight, 1-235-65 ATT link, 2-235-11 plain links, and 2-151-128 rivets)

1шт.

22

F86423

CHAIN (AG)

CHAIN AND FLIGHTS - (Consists of chain and 10 flights)

1шт.

F86425

CHAIN (CE)

CHAIN AND FLIGHTS - (Consists of chain and 20 flights)

1шт.

F79708

STEEL FLIGHT

FLIGHT - (Steel) special for cleaning mud from boot

1шт.
