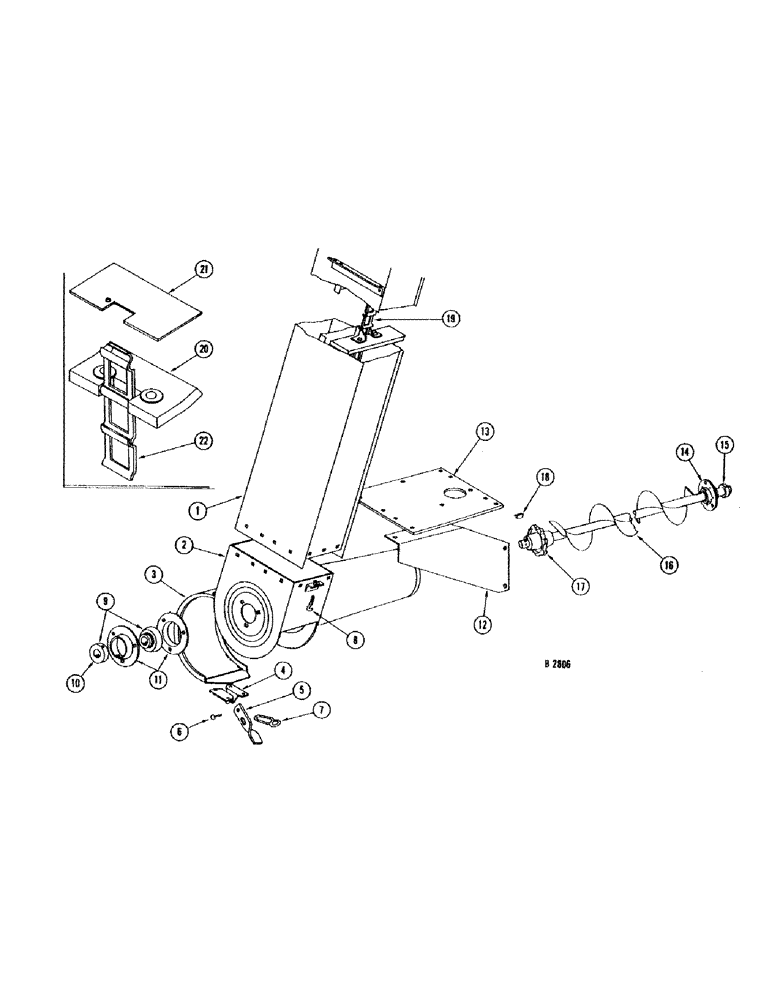

Запчасти Case IH 660 (141A) - GRAIN ELEVATOR, NUMBER 8357001 AND AFTER

1

F94220

BODY - grain elevator (Grain bin combines)

1шт.

F94251

BODY - grain elevator (Bagger combines)

1шт.

12-48

BOLT - 1/4" x 1/2" rhd. sh. sq. nk.

18шт.

12-410

BOLT - 1/4" x 5/8" rhd. sq. nk.

4шт.

25-104

NUT,1/4"-20, G5

22шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

22шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 1/4" flat

9шт.

2

F94221

HEAD - lower (Grain bin combines)

1шт.

F94252

HEAD - lower (Bagger combines)

1шт.

3

F94226

DOOR - lower head, solid (Grain bin combines)

1шт.

4

O314CS

BRACKET - latch handle

2шт.

49-35

RIVET - 3/16" x 5/16" W.B. hd.

4шт.

5

O313CS

HANDLE - latch

1шт.

6

45-310

RIVET,But Hd, 3/16" x 5/8"

- 3/16" x 5/8" rhd.

1шт.

F94227

DOOR - lower head, perforated (Grain bin combines) (Includes ref. 4 and 5)

1шт.

F92483

DOOR

- lower head (Bagger combines) (Includes ref. 4 and 5)

1шт.

7

O316CS

SPRING - latch handle

1шт.

8

F22742

HOOK - latch

1шт.

9

F94134

HOUSING ASSY.

BEARING - R.H.

1шт.

10

F52076

COLLAR

1шт.

11

B18282

FLANGE

2шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

3шт.

92-5

LOCK WASHER,5/16"

3шт.

12

F17695

SUPPORT - lower

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

3шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

3шт.

92-5

LOCK WASHER,5/16"

3шт.

13

F17696

PLATE - support

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

14-417

BOLT - 1/4" x 3/4" N.F. hex

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

F78749

COLLAR

BEARING - L.H.

1шт.

15

F52076

COLLAR

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

92-5

LOCK WASHER,5/16"

2шт.

16

F94225

AUGER - cross

1шт.

17

51B

SPROCKET ASSY.

SPROCKET - (7T)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

18

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

19

F94223

CHAIN AND FLIGHTS - (NSS - Used 2-F11479 flight, 1-F77894 flight, 1-F78446, 1-F86420 and 1-F86424)

1шт.

20

F77894

FLIGHT - rubber (Includes F6614 flight, 1-235-65 ATT link, 2-235-11 plain links and 2-151-135 rivets)

1шт.

21

F11479

FLIGHT - steel (See F79706)

2шт.

F79706

CHAIN AND FLIGHTS - (Consists of chain and 1 flight)

2шт.

22

F78446

CHAIN AND FLIGHTS - (Consists of chain and 2 flights)

2шт.

F86420

CHAIN AND FLIGHTS - (Consists of chain and 5 flights)

1шт.

F86424

CHAIN AND FLIGHTS - (Consists of chain and 20 flights)

1шт.
