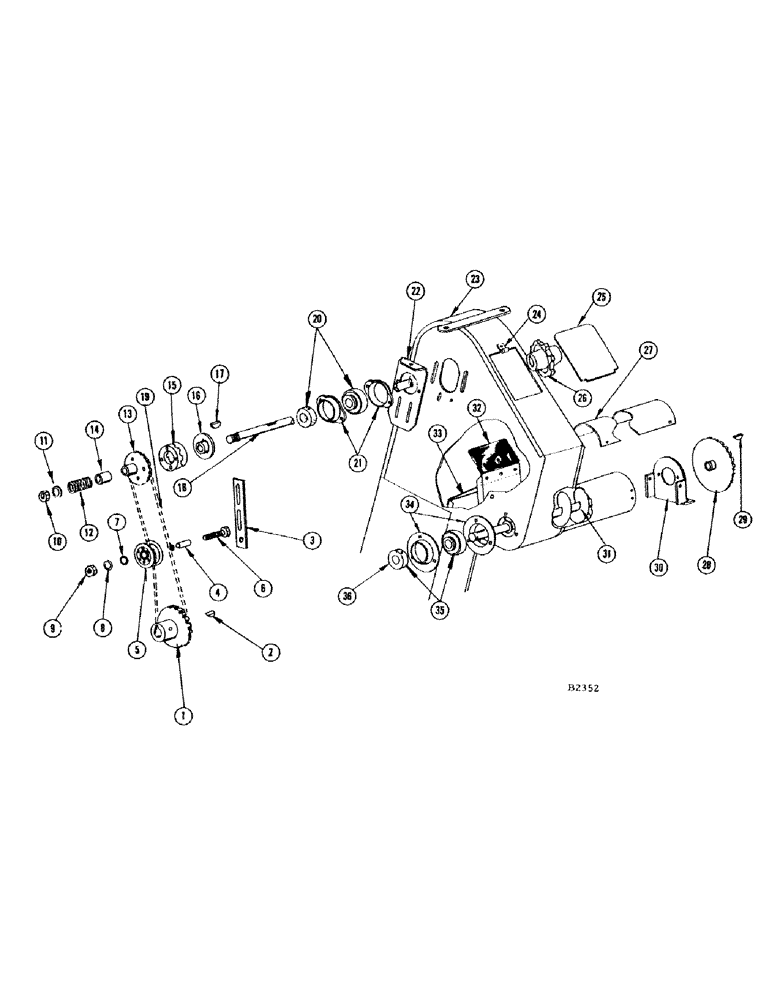

Запчасти Case IH 660 (140) - EDIBLE BEAN BIN LEVELING AUGER, GRAIN BIN COMBINES

1

F91280

SPROCKET - (18T) leveling auger drive, driven

1шт.

2

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 1 sprocket #A, 1/4" x 7/8", HT

1шт.

3

F21903

CARRIAGE BOLT

BRACKET - chain tightener

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-324) nut (25-106)

2шт.

WASHER - 3/8" flat (195-25) L.W. (92-6)

2шт.

4

O201HT

SPACER

1шт.

5

O3511CS

PULLEY

- chain tightener

1шт.

6

18-660

BOLT - 3/8" x 3/4" #3 N.C. plow

1шт.

7

195-25

WASHER,3/8"

- 3/8"

1шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

10

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. elastic stop

1шт.

11

A26376

WASHER

1шт.

12

O1090CH

SPRING

1шт.

13

F79464

SPROCKET ASSY.

SPROCKET - (30T) drive, upper shaft

1шт.

14

F11042

BEARING

BUSHING

1шт.

15

T16665

RING - jump clutch

2шт.

16

143CS

PLATE

HUB - jump clutch

1шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 16 hub #A, 1/4" x 7/8"

1шт.

18

F21625

SHAFT - upper

1шт.

19

F84828

X

CHAIN - leveling auger drive (NSS - see page 7)

1шт.

20

F94134

HOUSING ASSY.

BEARING - upper shaft

2шт.

F52076

COLLAR

1шт.

21

F9417

FLANGE

4шт.

22

F17592

HOLDER - bearing

2шт.

23

F84402

HEAD - upper

1шт.

24

F86525

CLIP

- door

1шт.

RIVET - 3/16" x 4/16" semi-tube (151-123)

1шт.

25

F18297

DOOR - upper head

1шт.

26

51B

SPROCKET ASSY.

SPROCKET - (7T) upper shaft

1шт.

KEY - "A" Woodruff (126-21)

1шт.

27

F22213

COVER - leveling auger (Used with standard grain bin) (#8309001 and after)

1шт.

F18308

COVER - leveling auger (Used with standard grain bin) (Before #8309001)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

2шт.

F22215

COVER - leveling auger (Used with 660 special grain bin) (#8309001 and after)

1шт.

F21632

COVER - leveling auger (Used with 660 special grain bin) (Before #8309001)

1шт.

BOLT - 1/4" x 3/8" N.F. hex (14-46) nut (25-114)

2шт.

28

F84910

SPROCKET - (44T) driven, leveling auger (#8309001 and after)

1шт.

F84398

SPROCKET - (22T) driven, leveling auger (Before #8309001)

1шт.

PIN - cotter 3/16" x 2-1/4" (132-101)

1шт.

29

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 28 sprocket #A, 1/4" x 7/8"

1шт.

30

F22214

PLATE - L.H. bearing, leveling auger (#8309001 and after)

1шт.

F21633

PLATE - L.H. bearing, leveling auger (Before #8309001)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

31

F84409

AUGER - leveling (Used with standard grain bin)

1шт.

F84405

AUGER - leveling (Used with 660 special grain bin)

1шт.

32

F18281

STRIPPER - upper head

1шт.

33

F82253

CLOSURE - throat, upper head

1шт.

BOLT - 1/4" x 1/2" N.C. hex (14-48) nut (25-114)

3шт.

34

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

3шт.

35

F94134

HOUSING ASSY.

BEARING - R.H end, leveling auger

1шт.

36

F52076

COLLAR

1шт.
