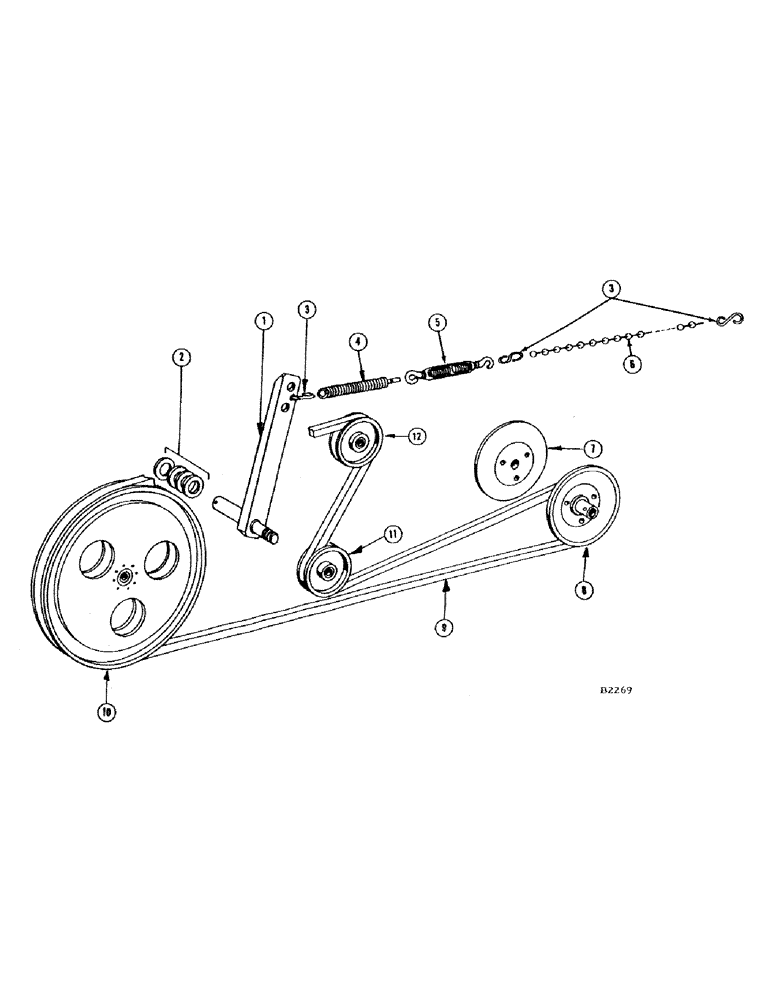

Запчасти Case IH 660 (016) - REEL DRIVE

1

F83160

BRACKET - reel drive tightener

1шт.

NUT - 3/8" N.F. hex. (25-1110) L.W. (92-10)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

2

B18275

WASHER

- bracket

4шт.

3

F20641

"S" HOOK - tightener chain

3шт.

4

O1158FS1

SPRING - reel belt tightener

1шт.

5

F10915

TURNBUCKLE - reel belt

1шт.

6

F20640

CHAIN - reel belt tightener

1шт.

7

F1313

SHEAVE

HALF - reel drive (On jackshaft)

1шт.

8

F1572

SHEAVE HALF - reel drive (On jackshaft)

1шт.

FITTING - grease 1/8" str. (219-1)

1шт.

9

F16633

BELT

Reel Drive

1шт.

10

F82542

SHEAVE

- reel drive, driven

1шт.

113-111

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

and locknut (131-69) Hex, 5/16"-18 x 2 1/2", G5

1шт.

195-520

WASHER,1/4"

- 5/16" flat and lockwasher (192-20)

1шт.

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, and locknut (131-70)

1шт.

11

F13064

SCREW

SHEAVE - tightener, lower (Replaces F11626 when stocks are exhausted)

1шт.

F11626

BEARING

SHEAVE - tightener, lower (Replaced by F13064 when stocks are exhausted)

1шт.

12

F6474

PULLEY

SHEAVE - tightener, upper

1шт.

BOLT - 5/8" x 2-1/4" N.F. hex. (14-1040) nut (25-10)

1шт.

WASHER - 5/8" flat (195-41)

6шт.

F9659

V-BELT

Sickle Drive, 13 Foot Header, See F16867 and F19939

1шт.

F14287

"V" BELT - compressor drive, air conditioner

1шт.

F16080

V-BELT

Variable Speed, Fan Drive

1шт.

F16447

V-BELT

Tailings Auger Drive

1шт.

F16633

BELT

Reel Drive, Standard Reel, See O4402CS

1шт.

F16710

BELT

Spreader Drive

1шт.

F16744

V-BELT

"V" BELT - rear roller drive (Pickup attachment)

1шт.

F16745

V-BELT

"V" BELT - jackshaft drive (Pickup attachment)

1шт.

F16867

BELT

Sickle Drive, 10 Foot Header, See F19939

1шт.

F17082

V-BELT

"V" BELT - grain bin discharge auger drive (Grain combine) See O2213BD

1шт.

F17460

BELT

"V" BELT - header drive (Replaced by F22398 when stocks are exhausted)

1шт.

F19498

V-BELT

Drives Upper Feeder Rake Shaft

1шт.

F19549

V-BELT,153.00" L

Front Cutter Spreader Drive 153.00" L

1шт.

F19550

V-BELT

"V" BELT - rear, cutter and spreader drive

1шт.

F19581

BELT

"V" BELT - grain bin secondary jackshaft drive

1шт.

F19939

BELT

"V" BELT - sickle drive (14 ft. header)

1шт.

F20032

V-BELT

Secondary Variable Speed Traction Drive, Secondary

1шт.

F20033

BELT

Primary Variable Speed Traction Drive, See F20854

1шт.

CASF20061

BELT

"V" BELT - beater drive

1шт.

F20854

BELT

"V" BELT - primary traction drive (Slow ground speed att.)

1шт.

F21990

BELT

Jackshaft Drive, Variable Speed Cylinder Drive Attachment

1шт.

F22398

BELT

Header Drive, Replaces F17460 When Stocks are Exhausted

1шт.

F22503

BELT

"V" BELT - hydraulic pump drive

1шт.

G46238

BELT,0.55" W x 17.78" L

Drives Generator, Fan and Water Pump 0.55" W x 17.78" L

1шт.

N1225

"V" BELT - drives discharge conveyor roller (Grain bin belt conveyor attachment)

1шт.

N1466

"V" BELT - conveyor drive (Grain bin belt conveyor attachment)

1шт.

O2213BD

"V" BELT - grain bin discharge auger drive (660 Special)

1шт.

O4402CS

V-BELT 170.00" L, Reel drive (Used w/Hart Carter pickup reels) 170.00" L

1шт.
