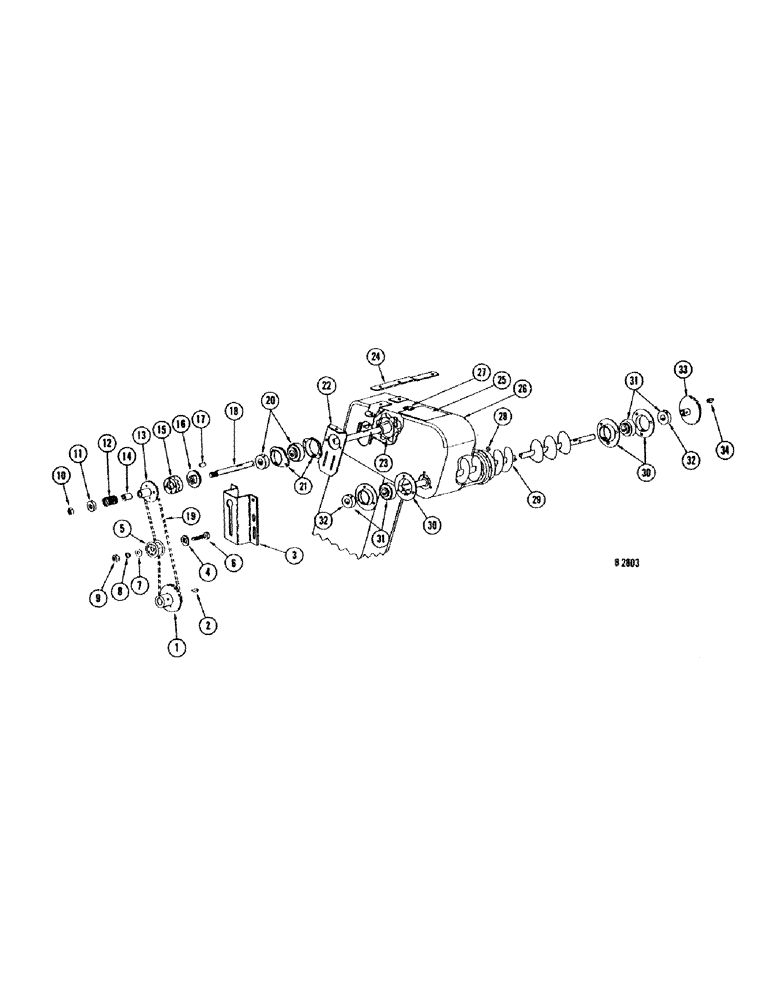

Запчасти Case IH 660 (137A) - GRAIN BIN LEVELING AUGER, GRAIN BIN COMBINES, NUMBER 8357001 AND AFTER

1

F79467

SPROCKET ASSY.

SPROCKET - (30T) leveling auger drive, driven

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

2

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

3

F22736

PLOW BOLT

BRACKET - chain tightener

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

3шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex and nut (25-114)

2шт.

95-4

WASHER,1/4"

- flat and L.W. (92-4) 1/4"

2шт.

4

O2287CS

WASHER

1шт.

5

O3511CS

PULLEY

- chain tightener

1шт.

6

11-836

BOLT

- 1/2" x 2-1/4" rhd. sq. nk.

1шт.

7

195-33

WASHER,1/2"

- flat 1/2"

1шт.

8

92-8

LOCK WASHER,1/2"

1шт.

9

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

10

131-37

LOCK NUT,3/4"-16

NUT - 3/4" N.F. elastic stop

1шт.

11

F22997

WASHER - cup

1шт.

12

F22727

SPRING

1шт.

13

F79464

SPROCKET ASSY.

SPROCKET - (30T) drive, upper shaft

1шт.

14

F11042

BEARING

BUSHING

1шт.

15

T16665

RING - jump clutch

2шт.

16

143CS

PLATE

HUB - jump clutch

1шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

18

F22726

PLOW BOLT

SHAFT - upper, elevator

1шт.

19

N4843

X

CHAIN - leveling auger drive (NSS - see page 7)

1шт.

F22829

EXTENSION - leveling auger drive chain (Used when grain elevator extension attachment is used) NSS - see page 7)

1шт.

20

F94134

HOUSING ASSY.

BEARING - upper shaft

2шт.

F52076

COLLAR

- (See ref. 32)

1шт.

21

F9417

FLANGE

- bearing

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

4шт.

22

F22820

HOLDER - bearing

2шт.

111-249

BOLT - 5/16" x 2-1/2" rhd. sq. nk.

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

23

51B

SPROCKET ASSY.

SPROCKET - (7T) upper shaft

1шт.

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

24

F22745

PLOW BOLT

BRACE - elevator to grain bin

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut (25-115) L.W. (92-5) Hex, 5/16"-24 x 5/8", G5, Full Thd

1шт.

25

F20546

DOOR - upper head

1шт.

26

F94217

HEAD - upper

1шт.

27

F86525

CLIP

- door

1шт.

151-123

RIVET - 3/16" x 4/16" semi-tube

1шт.

28

O2511B

WASHER - leveling auger

7шт.

29

F94219

AUGER - leveling

1шт.

30

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105), L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

6шт.

31

F94134

HOUSING ASSY.

BEARING - leveling auger

2шт.

32

F52076

COLLAR

1шт.

33

F84909

SPROCKET ASSY.

SPROCKET - (36T) driven, leveling auger

1шт.

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

34

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.
