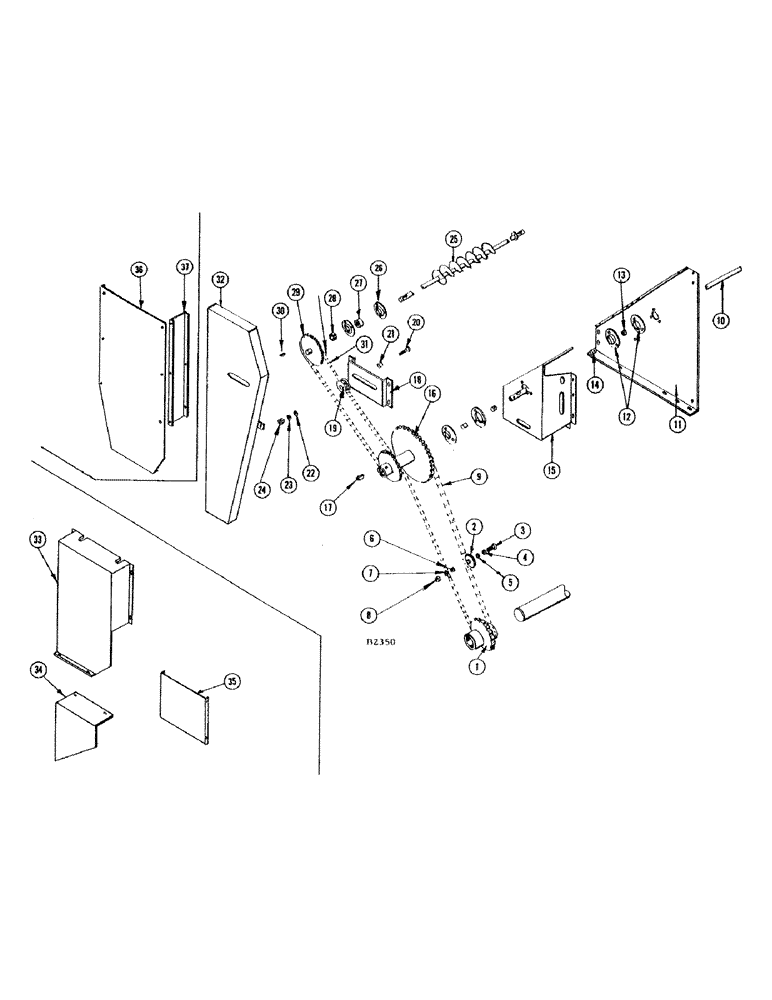

Запчасти Case IH 660 (136) - EDIBLE BEAN ELEVATOR DRIVE, BEFORE NUMBER 8309001

1

F84377

SPROCKET - (26T) drive, grain elevator

1шт.

2

F7935

SPROCKET ASSY.

SPROCKET - (18T) tightener

1шт.

3

12-1040

BOLT - 5/8" x 2-1/2" rhd. sq. nk.

1шт.

4

O2287CS

WASHER - sq. hole

1шт.

5

F10566

SPACER - tightener sprocket

1шт.

6

195-41

WASHER,5/8"

- flat 5/8"

1шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

25-1010

NUT,5/8"-11, G5

1шт.

9

N3412

X

CHAIN - edible bean elevator jackshaft drive (NSS - see page 7)

1шт.

10

F21539

JACKSHAFT - edible bean elevator drive

1шт.

11

F21537

BRACKET - inner

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)

7шт.

12

B18282

FLANGE

- bearing

4шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

6шт.

13

F94134

HOUSING ASSY.

BEARING - jackshaft

2шт.

14

F52076

COLLAR

1шт.

15

F21536

BRACKET - outer

1шт.

16

F84354

SPROCKET - (10T and 35T) jackshaft drive, driven (Also drives leveling auger)

1шт.

PIN - cotter 3/16" x 1-3/4" (132-97)

1шт.

17

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 16 sprocket #A, 1/4" x 7/8"

1шт.

18

F21529

BRACKET - tightener

1шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115)

4шт.

19

O3511CS

PULLEY

- idler

1шт.

20

12-848

BOLT - 1/2" x 3" rhd. sq. nk. Short NK, 1/2"-13 x 3", G2

1шт.

21

11799K

SPACER - idler pulley

1шт.

22

195-33

WASHER,1/2"

- flat 1/2"

1шт.

23

92-8

LOCK WASHER,1/2"

1шт.

24

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

25

F84405

AUGER - leveling (Used with 660 special grain bin)

1шт.

F84409

AUGER - leveling (Used with standard grain bin)

1шт.

26

B18282

FLANGE

2шт.

BOLT - 5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105)

3шт.

27

F90306

BEARING ASSY

BEARING - L.H. end, leveling auger

1шт.

28

O4233CS

COLLAR

1шт.

29

F84398

SPROCKET - (22T) driven, leveling auger

1шт.

PIN - cotter 3/16" x 2-1/4" (132-101)

1шт.

30

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

1шт.

31

F21635

X

CHAIN - grain bin leveling auger (Used with 660 special grain bin) (NSS - see page 7)

1шт.

F21636

X

CHAIN - grain bin leveling auger (Used with standard grain bin) NSS - see page 6

1шт.

32

F84430

SHIELD - (660 special grain bin) (Deplete then use F94390)

1шт.

32

F94390

SHIELD - (660 special grain bin) (See F84430)

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

3шт.

33

F84431

SHIELD - upper, grain bin jackshaft chain (Used with standard grain bin)

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

3шт.

34

F21694

SHIELD - lower, grain bin jackshaft drive chain (Used with standard grain bin)

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

2шт.

35

F21695

FILLER - shield, leveling auger drive (Used with standard grain bin)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)

2шт.

36

F22142

SHIELD - leveling auger (Used with standard grain bin and 660 special elevator)

1шт.

37

F22141

SUPPORT - front and rear

2шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) nut (131-129)

6шт.
