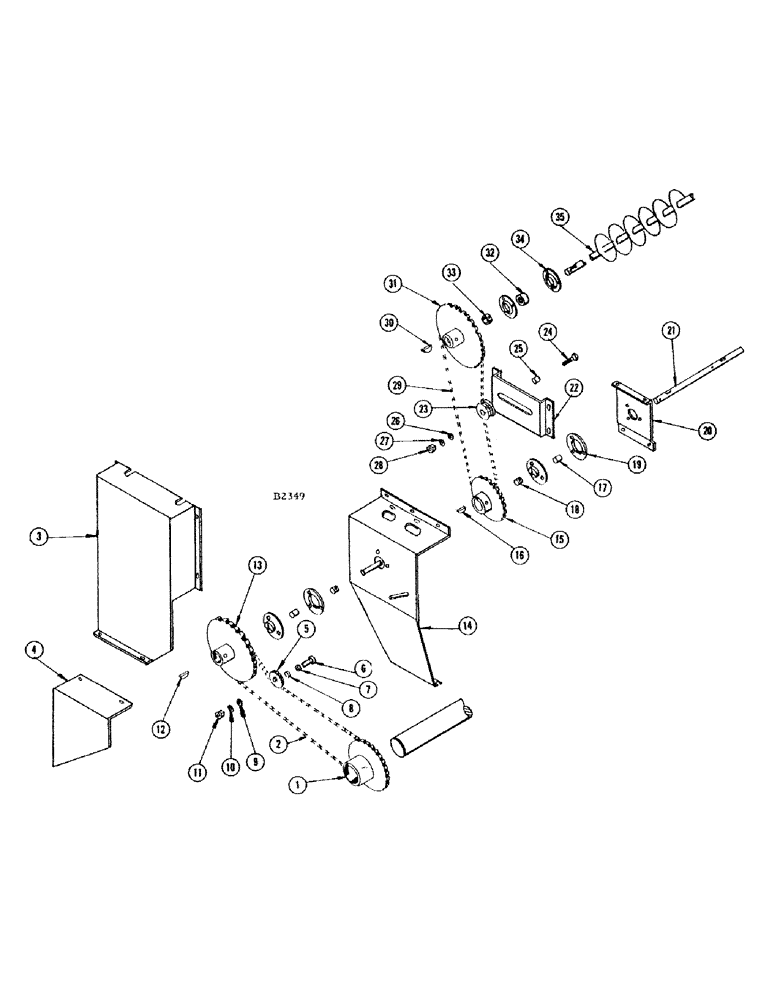

Запчасти Case IH 660 (132) - GRAIN ELEVATOR DRIVE, BEFORE NUMBER 8309001

1

F84377

SPROCKET - (26) drive, grain elevator (Grain bin or Bagger combines - on beater shaft)

1шт.

2

N3412

X

CHAIN - grain elevator jackshaft drive (Grain bin or Bagger combines) NSS - see page 8

1шт.

3

F84431

SHIELD - upper, grain bin jackshaft chain

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

6шт.

4

F21694

SHIELD - lower, grain bin jackshaft chain

1шт.

BOLT - 1/4" x 5/8" N.F. hex (114-3) nut (129-121)

2шт.

5

F7935

SPROCKET ASSY.

SPROCKET - (18T) tightener

1шт.

6

12-1040

BOLT - 5/8" x 2-1/2" rhd. sq. nk.

1шт.

7

O2287CS

WASHER - sq. hole

1шт.

8

V13384

SPACER - tightener sprocket

1шт.

9

195-41

WASHER,5/8"

- flat 5/8"

1шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

11

25-1010

NUT,5/8"-11, G5

1шт.

12

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 13 sprocket #A, 1/4" x 7/8"

1шт.

13

F84860

SPROCKET - (35T) jackshaft drive, driven

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

14

F84876

BRACKET - outer (Replaces F21527 when stocks are exhausted)

1шт.

F21527

BRACKET - outer (Replaced by F84876 when stocks are exhausted)

1шт.

BOLT - 5/16" x 1/2" N.F. hex (14-58) nut (25-115)

3шт.

15

F84861

SPROCKET - (10T) jackshaft, leveling auger drive

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

16

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 15 sprocket #A, 1/4" x 7/8"

1шт.

17

F90306

BEARING ASSY

BEARING - jackshaft

2шт.

18

O4233CS

COLLAR

1шт.

19

B18282

FLANGE

- bearing

4шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

6шт.

20

F21524

BRACKET - inner

1шт.

BOLT - 5/16" x 1/2" N.F. hex (14-58) nut (25-115)

2шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115)

2шт.

21

F22156

JACKSHAFT - grain elevator drive

1шт.

22

F21529

BRACKET - tightener

1шт.

BOLT - 5/16" x 5/8" N.F. hex (14-510) nut (25-115)

4шт.

23

O3511CS

PULLEY

- idler

1шт.

24

11-840

BOLT,Short NK, 1/2"-13 x 2 1/2", G2

- 1/2" x 2-1/2" rhd. sq. nk.

1шт.

25

O2287CS

WASHER - sq. hole

1шт.

26

195-33

WASHER,1/2"

- flat 1/2"

1шт.

27

92-8

LOCK WASHER,1/2"

1шт.

28

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

29

F21615

X

CHAIN - grain bin leveling auger (NSS - see page 7)

1шт.

30

126-21

WOODRUFF KEY,#A, 1/4" x 7/8"

Ref. 31 sprocket #A, 1/4" x 7/8"

1шт.

31

F84862

SPROCKET - (18T) driven, leveling auger

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

32

F94134

HOUSING ASSY.

BEARING - L.H. end, leveling auger

1шт.

33

F52076

COLLAR

1шт.

34

B18282

FLANGE

2шт.

BOLT -5/16" x 3/4" N.C. rhd. sq. nk. (11-512) nut (25-105)

3шт.

35

F84393

AUGER - leveling, grain bin

1шт.
