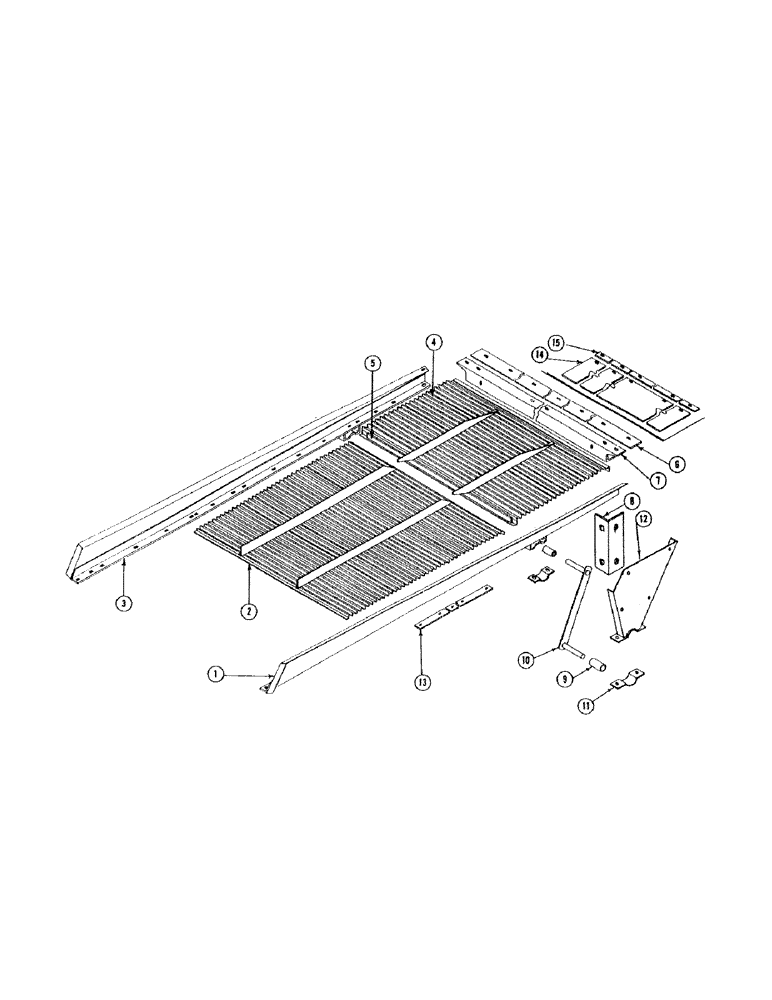

Запчасти Case IH 660 (126) - GRAIN PAN

1

F84320

SEAL - R.H. for side of shoe and grain pan

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

3шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

13шт.

2

F84321

FLOOR - (Corrugated) rear, grain pan

1шт.

3

F84325

SEAL - L.H. for side of shoe and grain pan

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

3шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

13шт.

4

F84324

FLOOR - (Corrugated) front

1шт.

5

F21478

SEAL

- floor

1шт.

F84443

FLOOR - (Perforated) front, 660 special

1шт.

6

F21486

STRIP - bolting, front channel

1шт.

BOLT - 1/4" x 3/4" N.F. hex (14-412) nut (25-114)

7шт.

7

F21484

CHANNEL - front

1шт.

SCREW - 310 x 1/2" N.C. rhd. mach. (173-97) nut (129-7)

2шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

3шт.

8

F16904

BRACKET - R.H. support

1шт.

BOLT - 3/8" x 1" N.F hex (14-616) nut (25-116)

2шт.

F16903

BRACKET - L.H. support

1шт.

9

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, for ref. 10 arm

4шт.

10

F22686

ARM

- swinger arm (#8357001 and after)

2шт.

10

F80884

ARM

- swinger arm (Before #8357001)

2шт.

REFER TO ILLUSTRATION PAGE,REFER TO REF#10 TO THE LEFT, BUSHING SHOWN IS REF#9. 9/6/96

1шт.

11

O770BF

STRAP

CLAMP - strap, swinger arm

4шт.

BOLT - 5/16" x 1-1/4" N.C. hex (13-105) nut (25-115)

4шт.

12

F81358

BRACKET - R.H. swinger, grain pan

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116)

2шт.

F81357

BRACKET - L.H. swinger

1шт.

13

F21476

STRIP - bolting, grain pan

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

10шт.

14

F84137M

SHIELD - grain pan (Machinery item) 660 special

1шт.

15

F18347

BOLTING STRIP - grain pan shield (660 special)

1шт.

BOLT - 1/4" x 3/4" N.C. hex (13-412) and Tinnerman nut (131-129)

5шт.
