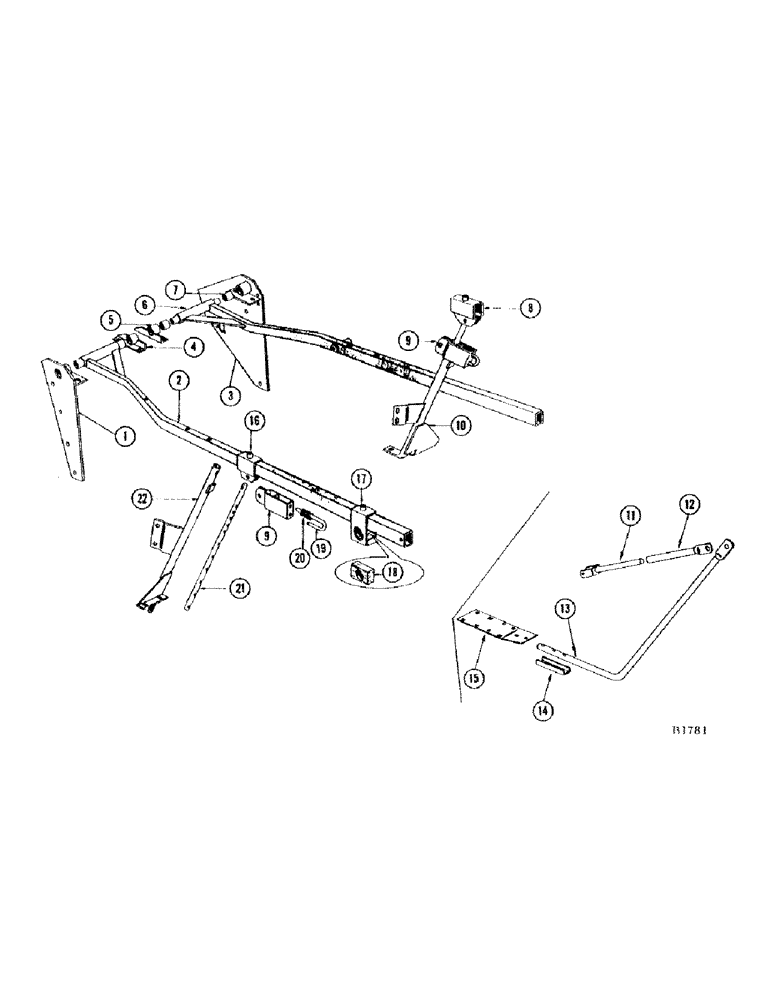

Запчасти Case IH 660 (012) - REEL SUPPORTS

1

F82964

BRACKET - R.H. outer, reel support arm pivot

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.

2

F82529

ARM - reel support, R.H.

1шт.

F83768

ARM - reel support, R.H. (Hydraulic reel lift variable speed Reel Drive) grain combines

1шт.

F91770

ARM - reel support, R.H. (Hydraulic reel lift - variable speed reel drive) 660 special combine

1шт.

3

F91934

BRACKET - L.H. outer, reel support arm pivot (Replaces F83333 when stocks are exhausted)

1шт.

F83333

BRACKET - L.H. outer, reel support arm pivot (Replaced by F91934 when stocks are exhausted)

1шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

1шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

1шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

1шт.

4

F81279

BRACKET - R.H. inner, reel support arm pivot (10 ft. hdr.)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

F91933

BRACKET - R.H. inner, reel support arm pivot (13 ft. and 14 ft. header)(Replaces F82622 when stocks are exhausted)

1шт.

F82622

BRACKET - R.H. inner, reel support arm pivot (13 ft. and 14 ft. header) (Replaces F91933 when stocks are exhausted)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

5

F81277

BRACKET

- L.H. inner, reel support arm pivot (10 ft. hdr.) (Exh. stock then use F89281)

1шт.

F89281

BRACKET

- L.H. inner, reel support arm pivot (10 ft. hdr.) (Exh. stock then use F81277)

1шт.

F40563

SPACER - mounting angle

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-516) nut (25-115)

1шт.

F91935

BRACKET - L.H. inner, reel support arm pivot (13 ft. and 14 ft. header) Replaces F82620 when stocks are exhausted

1шт.

F82620

BRACKET - L.H. inner, reel support arm pivot (13 ft. and 14 ft. header) Replaces F91935 when stocks are exhausted

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

6

F82527

ARM - reel support, L.H.

1шт.

7

A31082

BUSHING

2шт.

FITTING - grease 1/4"-28 thrd. (219-8) for arm

1шт.

F83766

ARM - reel support, L.H. (Hydraulic reel lift - variable speed reel drive) Includes 2 Ref. 7 (Grain combines)

1шт.

FITTING - grease 1/4"-28 thrd. (219-87)

1шт.

F91768

ARM - reel support, L. H. (Hydraulic reel Lift - variable speed reel drive) Includes 2 Ref. 7 (660 special combine)

1шт.

8

F82535

BRACKET - reel support, L. H.

1шт.

SCREW - 3/8" x 1" N.C. sq. hd. flat pt. set (181-647)

1шт.

9

F82537

SUPPORT - reel latch pin

2шт.

10

F82532

SUPPORT - L.H.

1шт.

BOLT - 7/16" x 1-1/4" rhd. sq. nk. (111-404) nut 129-104)

1шт.

11

F83942

YOKE - with rod

2шт.

BOLT - 5/16" x 2-1/2" N.C. hex. (113-111) locknut (131-4)

2шт.

12

F21001

PIPE

LINK - divider point extension

2шт.

BOLT - 5/16" x 1" N.C. hex. (113-103) locknut (131-4)

2шт.

13

F83944

EXTENSION - divider point

2шт.

14

F21002

CLAMP -, Serial Range: extension-reinforcement

2шт.

BOLT - 5/16" x 1-1/2" rhd. sq. nk. (111-221) nut (129-102)

6шт.

15

F20998

REINFORCEMENT - L.H. divider

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (111-324) nut (129-103)

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (111-319) nut (129-103)

2шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. (111-325) nut (129-103)

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) L.W. (192-21)

2шт.

F20997

REINFORCEMENT - R.H. divider

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102)

4шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (129-102)

1шт.

BOLT - 5/16" x 1-1/4" rhd. sq. nk. (111-204) nut (129-102)

2шт.

16

F82535

BRACKET - reel support, R.H.

1шт.

SCREW - 3/8" x 1" N.C. sq. hd. flat pt. set (181-647)

1шт.

17

F82597

BRACKET - reel support

2шт.

SCREW - 3/8" x 1" N.C. sq. hd. flat pt. set (85-616)

2шт.

18

F91895

BEARING - reel shaft (Replaces F4342 when stocks are exhausted)

2шт.

F4342

BEARING - reel shaft (Replaced by F91895 when stocks are exhausted)

2шт.

19

F18717

PIN - reel latch

2шт.

PIN - cotter 3/32" x 3/4" (132-26)

2шт.

WASHER - 5/16" flat (95-5)

2шт.

20

A31218

SPRING

- latch pin

2шт.

21

F18715

SUPPORT - upper, reel R.H. and L.H.

2шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) flexloc (131-527)

2шт.

22

F82538

SUPPORT - R.H.

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

WASHER - 3/8" flat (195-104)

2шт.
