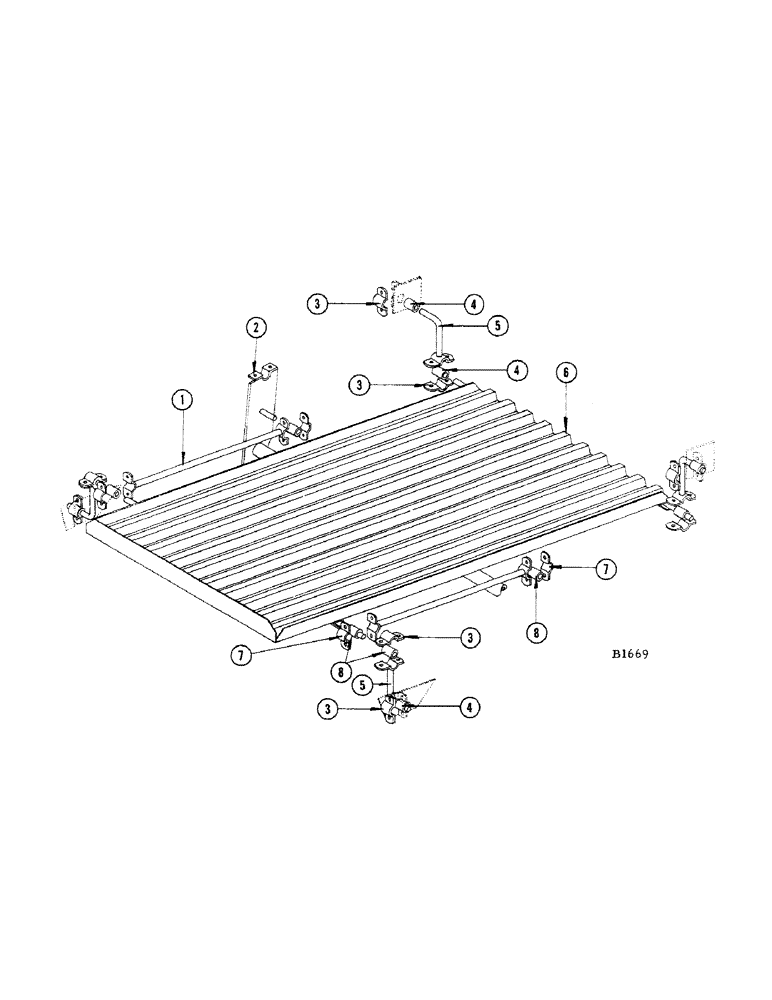

Запчасти Case IH 660 (122) - STRAWRACK RETURN PAN

1

F80896

PITMAN - return pan

2шт.

BOLT - 5/16" x 1-1/4" N.F. hex (14-520) nut (25-115) L.W. (92-5)

8шт.

2

F88433

SHAFT - rocker (Replaces F83848 when exh.) (See page 124)

1шт.

F83848

SHAFT - rocker (Replaces by F88433 when exh.) (See page 124)

1шт.

3

O770BF

STRAP

CLAMP - strap, for ref. 5 arm

8шт.

4

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, for ref. 5 arm

6шт.

5

F80892

ARM - swinger

4шт.

BOLT - 5/16" x 1-1/4" N.F. hex (14-520) nut (25-115) L.W. (92-5)

8шт.

6

F94188

PAN - strawrack return (Replaces F84333 when stocks are exhausted

1шт.

F84333

PAN - strawrack return (Replaced by F94188 when stocks are exhausted)

1шт.

7

O770BF

STRAP

CLAMP - strap, for ref. 1 Pitman

4шт.

8

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion, for ref. 1 Pitman

4шт.
