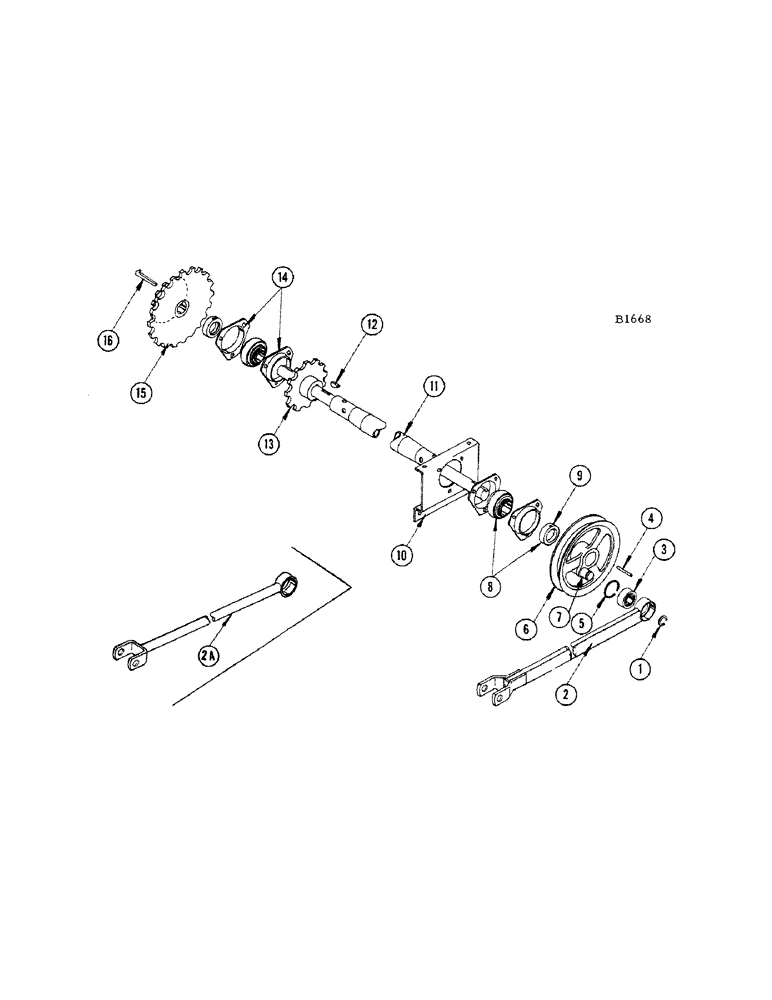

Запчасти Case IH 660 (122[A]) - STRAWRACK CRANKSHAFT

1

A26949

RING, SNAP

SNAP RING - outside, for ref. 3 bearing

1шт.

2

F84893

PITMAN - shoe drive (Replaces F80887 when stocks are exhausted)

1шт.

2a

F80887

PITMAN

- shoe drive (Replaced by F84893 when stocks are exhausted

1шт.

3

N4651

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - Pitman

1шт.

4

O1821CS

KEY - tapered, for ref. 6, Serial Range: sheave-crankshaft

1шт.

5

A27150

RING

SNAP RING - inside, for ref. 3 bearing

1шт.

6

F80864

SHEAVE - shoe drive Pitman

1шт.

7

F17772

PIN

1шт.

8

T18852

BALL BEARING

BEARING - crankshaft

2шт.

9

O4524B

COLLAR

1шт.

10

F16092

BRACKET - bearing holder, R.H. end

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

3шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115) L.W. (92-5)

2шт.

11

F21436

CRANKSHAFT - rocker arm drive

1шт.

F20904

CRANKSHAFT - rocker arm drive (Bagger combines)

1шт.

12

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 13 sprocket to crankshaft #A, 1/4" x 7/8", HT

1шт.

13

F80863

SPROCKET - (18T) grain elevator drive (Bagger combines only)

1шт.

14

F16086

FLANGE - bearing

4шт.

BOLT - 3/8" x 3/4" N.C. rhd. sq. nk. (11-612) nut (25-106) and L.W. (92-6)

6шт.

15

F81348

SPROCKET - (45T-17T) drives crankshaft and jackshaft

1шт.

16

O30388HT

KEY

- gib, for ref. 15 double, Serial Range: sprocket-crankshaft

1шт.

F16228

X

CHAIN - crankshaft drive (NSS see chain page)

1шт.

F16079

X

CHAIN - fan drive jackshaft (NSS - see chain page)

1шт.
