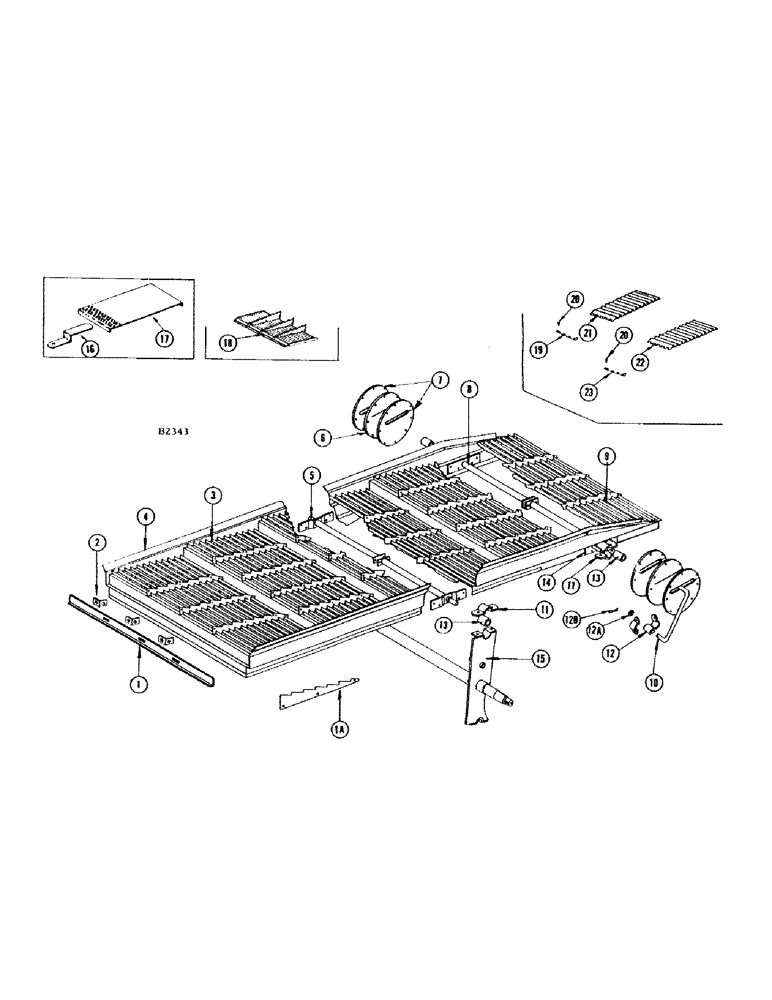

Запчасти Case IH 660 (120) - STRAWRACK

1

F19503

BAFFLE - strawrack riser, rear (660 special)

1шт.

1a

F17569

EXTENSION - riser (660 special)

7шт.

2

F19502

CLIP - for ref. 1 baffle

3шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

6шт.

WASHER - 1/4" flat (95-4)

3шт.

3

F83992

STRAWRACK

1шт.

4

F16197

SEAL - strip (Rubber)

2шт.

STAPLE - 3/8" x .048 gal. Bostich (128-572)

90шт.

5

F80909

PIPE - rear cross

2шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

BOLT - 5/16" x 1 " N.F. hex (14-516) nut (25-115)

8шт.

6

F21497

COVER - (Canvas) swinger arm

2шт.

7

F21498

COVER

- swinger arm

4шт.

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

16шт.

131-107

NUT

- 1/4"-20 "J" speed nut

12шт.

25-104

NUT,1/4"-20, G5

and L.W. (92-4) 1/4"-20, G5

4шт.

8

F80908

PIPE - front cross

2шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

9

F83994

GRID - removable

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

24шт.

10

F22497

ARM

- swinger (Replaces F18453 when stocks are exhausted)

2шт.

10

F18453

ARM - swinger (Replaces F22497 and F22498 when stocks are exhausted)

2шт.

11

O770BF

STRAP

CLAMP - front and rear strawrack pipes

8шт.

BOLT - 5/16" x 1-1/4" N.F. hex (14-520) dbl. nut (25-115)

4шт.

12

O4505BF2

BUSHING,11.11mm ID x 30.16mm OD x 38.1mm L

- torsion (Ref. 10 arm)

2шт.

12a

F22498

WASHER - for F22497 arm

4шт.

12b

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

4шт.

13

F16808

BUSHING

- torsion, cross pipes

2шт.

14

F82432

CLAMP - support

2шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)

8шт.

15

F88433

SHAFT - rocker (Replaces F83848 when exh.) (See Fig. 124)

1шт.

15

F83848

SHAFT - rocker (Replaces F88433 when exh.) (See Fig. 124)

1шт.

STRAWRACK GRID COVER ATTACHMENT, SORGHUM GRAIN

1шт.

16

F7435

CLIP - hold down, strawrack grid cover attachment, sorghum grain

22шт.

17

F19977

COVER - 2nd and 4th grids, strawrack attachment, sorghum grain

10шт.

17

F19978

COVER - 1st, 3rd and 5th grids, strawrack cover attachment, sorghum grain

12шт.

STRAWRACK GRID COVER ATTACHMENT, CORN HARVEST

1шт.

18

F83981

GRILLE ASSY

GRID - removable, front, strawrack grid cover attachment, corn harvest

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114), strawrack grid cover attachment, corn harvest

24шт.

19

F21663

CLAMP - narrow cover, strawrack grid attachment, corn harvest

10шт.

20

F21193

STUD - tri-mount, strawrack grid cover attachment, corn harvest

18шт.

21

F21661

COVER - grid, narrow rear, strawrack attachment, corn harvest

5шт.

22

F21660

COVER - grid, wide rear, strawrack attachment, corn harvest

4шт.

23

F21662

CLAMP - wide cover, strawrack grid attachment, corn harvest

8шт.
