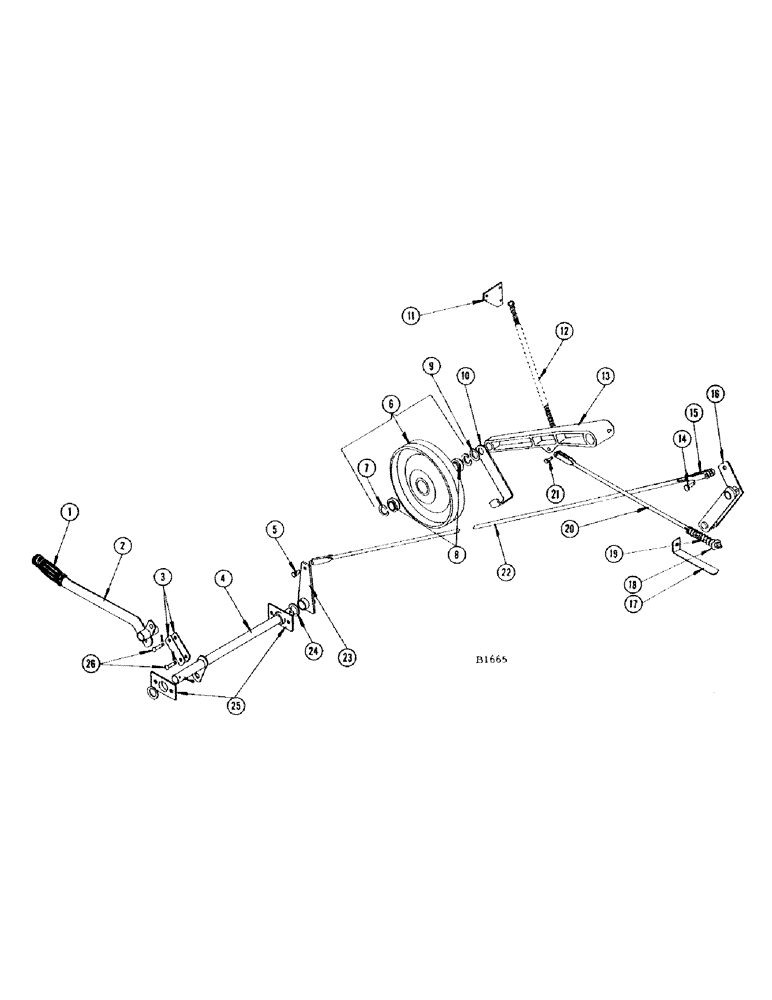

Запчасти Case IH 660 (118) - MAIN COMBINE DRIVE TIGHTENER LINKAGE, BEATER DRIVE, BEFORE NUMBER 8357001

1

F13011

SCREW

GRIP - hand

1шт.

2

F84363

LEVER - combine control

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

2шт.

3

F21568

LINK - connecting

2шт.

4

F84365

SHAFT - main drive throwout

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

5

O1235HT

PIN - clevis, throwout, Serial Range: rod-arm

1шт.

6

F80920

SHEAVE - idler, beater drive

1шт.

7

O3338BF

SNAP RING

2шт.

8

F16246

BEARING, BALL

BEARING

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

and L.W. (92-10) Hex, 5/8"-11 x 3", G5

1шт.

9

A31217

WASHER - idler sheave

1шт.

10

F17517

GUIDE - belt

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

1шт.

95-3

WASHER,#12

- 3/16"

1шт.

11

F17431

BRACKET - arm spring

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

12

O2678N

SPRING

- tightener arm

1шт.

132-89

COTTER PIN,3/16" x 3/4"

Pin, Split (Cotter), 3/16" x 3/4"

2шт.

13

F1477

ARM - tightener

1шт.

219-18

FITTING - grease

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

14

O5341CS

PIN - clevis

1шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - bellcrank

1шт.

16

F81635

BELLCRANK - main drive

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

14-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- 5/8" x 2-1/2" N.F. hex

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex jam

1шт.

95-3

WASHER,#12

- 3/16" flat

1шт.

17

F17947

GAUGE

- spring, main drive throwout

1шт.

18

O58BL

WASHER - throwout rod

2шт.

19

F17945

SPRING

- throwout rod

1шт.

20

F81909

ROD - throwout

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

2шт.

21

O1235HT

PIN - clevis, Serial Range: rod-arm

1шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

22

F81907

ROD - throwout

1шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

1шт.

23

F81663

ARM - combine control

1шт.

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

- 3/8" x 2" N.F. hex

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

92-6

LOCK WASHER,3/8"

1шт.

24

O906B

WASHER

- throwout shaft

2шт.

25

F17298

BRACKET - bearing, throwout shaft

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-24 x 5/8", G5, Full Thd

4шт.

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

4шт.

92-5

LOCK WASHER,5/16"

4шт.

26

B18213

PIN - connecting link

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
