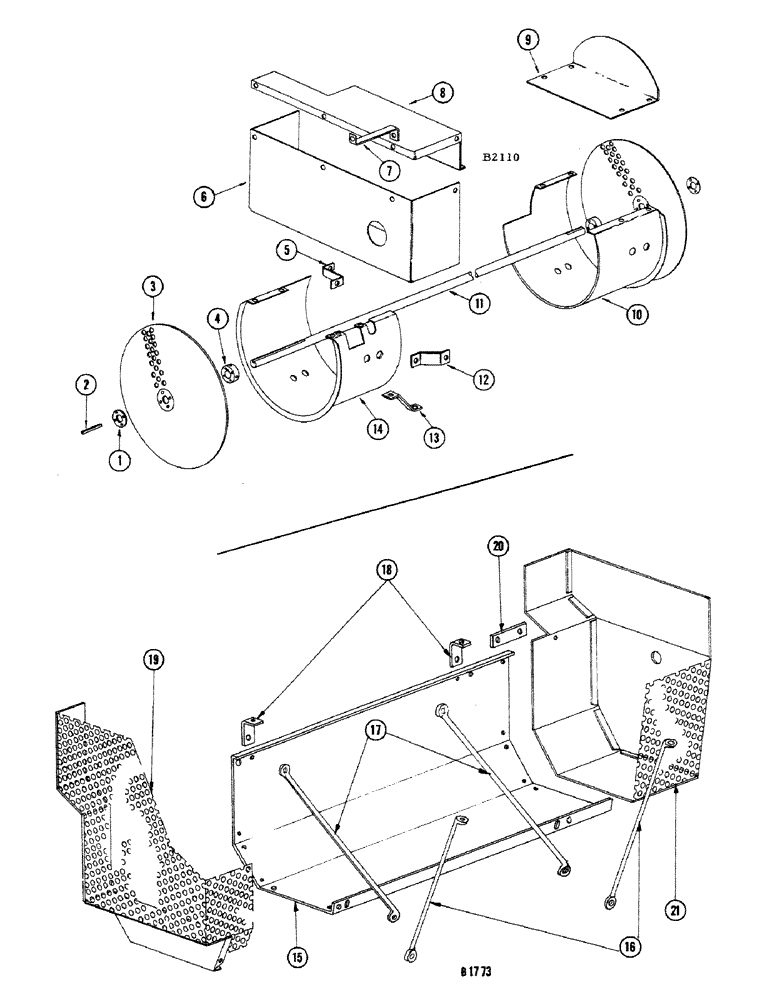

Запчасти Case IH 660 (116) - ROTATING FAN SCREEN ATTACHMENT

1

F21237

WASHER - screen hub

1шт.

2

W5063S

KEY

- screen, Serial Range: hub-shaft

2шт.

3

F21056

SCREEN - rotating

2шт.

4

F20864

HUB - screen

2шт.

SCREW - 5/16" x 3/4" N.C. cup pt. set (83-512)

4шт.

BOLT - 1/4" x 1" N.F. hex. (114-1) L.W. (192-19)

8шт.

5

F20862

BRACKET - rear, wrapper

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) and L.W. (192-19)

4шт.

6

F83963

CLOSURE - upper, R.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) L.W. (192-19)

8шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122) and L.W. (192-20)

1шт.

7

F20992

BRACE - safety shield (Used with R.H. drive safety shield)

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (113-3) L.W. (192-19)

2шт.

7

F22596

BRACE - safety shield (Used with R.H. drive safety shield) 660 special combine only

1шт.

BOLT - 1/4" x 3/4" N.C. hex., nut (113-3) L.W. (192-19)

2шт.

8

F83964

COVER - upper R.H. closure

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) L.W. (192-19)

6шт.

9

F20858

CLOSURE - upper L.H.

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) L.W. (192-19)

2шт.

BOLT - 1/4" x 3/8" N.F. hex. (114-9) nut (129-121) L.W. (192-19)

4шт.

10

F20860

WRAPPER - L.H.

1шт.

11

F21893

SHAFT - fan

1шт.

FITTING - grease, 1/8" str. (219-1)

1шт.

12

F20861

BRACKET - front, wrapper

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) L.W. (192-19)

4шт.

13

F20863

BRACKET - lower, wrapper

2шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) L.W. (192-19)

4шт.

14

F20859

WRAPPER - R.H.

1шт.

15

F18095

SHIELD - fan housing (Beneath fan housing), attachment

1шт.

BOLT - 1/4"x 1/2" N.F. hex. (114-2) nut (129-121), fan housing shield attachment

5шт.

16

F18097

ROD - rear support, fan housing shield attachment

2шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123), fan housing shield attachment

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123), fan housing shield attachment

2шт.

WASHER - 3/8" flat (195-104) and L.W. (192-21), fan housing shield attachment

2шт.

17

F18096

ROD - front support, fan housing shield attachment

2шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) nut (129-123) and L.W. (192-19), fan housing shield attachment

4шт.

18

F20249

CLIP - front support (Replaces F18108 when stocks are exhausted), fan housing shield attachment

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122) and lockwasher (192-20), fan housing shield attachment

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122) and lockwasher (192-20), fan housing shield attachment

4шт.

18

F18108

CLIP - front support (Replaced by F20249 when stocks are exhausted), fan housing shield attachment

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122) and L.W. (192-20), fan housing shield attachment

4шт.

19

F82194

SHIELD - fan inlet R.H., housing attachment

1шт.

20

F18109

STRAP - rear bolting, fan housing shield attachment

1шт.

21

F84989

SHIELD - fan inlet, L.H., housing attachment

1шт.
