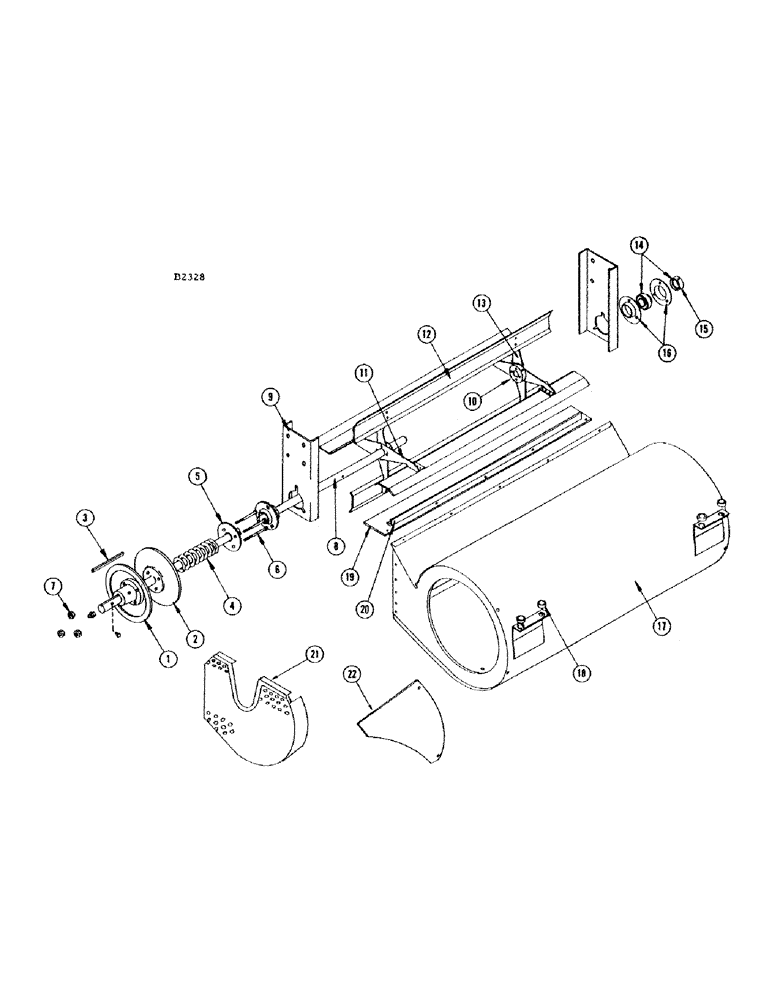

Запчасти Case IH 660 (114) - FAN AND FAN HOUSING

1

F1699

SHEAVE - half, fan drive, outer

1шт.

178-28

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SCREW - 1/4" x 1/2" N.C. socket hd. cone pt. set

1шт.

NUT - 1/4" N.C. hex.

1шт.

2

F1700

SHEAVE HALF - fan drive, inner

1шт.

3

F22015

KEY

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

4

F9021

VALVE SPRING

SPRING - compression, V.S. fan drive

1шт.

5

F21492

PLATE

- spring

1шт.

6

111-123

CARRIAGE BOLT,1/4"- 20 x 5 1/2"

BOLT - 1/4" x 5-1/2" N.C. rhd. sq. nk. thrd.)

3шт.

7

25-104

NUT,1/4"-20, G5

6шт.

8

F21491

SHAFT - fan

1шт.

9

F16074

SUPPORT - fan bearing

2шт.

14-510

SCREW,Hex, 5/16" - 24 x 5/8", Gr 5, Full Thd

BOLT, , Nut and L.W. Hex, 5/16"-24 x 5/8", G5, Full Thd

8шт.

10

F22152

HUB - fan

2шт.

14-548

SCREW,Hex, 5/16" - 24 x 3", Gr 5

BOLT - 5/16" x 3" N.F. hex. nut and L.W.

2шт.

11

F17409

SPOKE - fan, R.H.

2шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1 1/4", G5

4шт.

12

F16963

HALF BLADE

BLADE - fan

4шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

16шт.

13

F16962

SPOKE - fan, L.H.

2шт.

14-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1 1/4", G5

4шт.

14

3074CSA

BALL BEARING

- fan shaft

2шт.

15

F62108

COLLAR

1шт.

16

B18282

FLANGE

4шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut and L.W. Short NK, 5/16"-18 x 3/4", G2

6шт.

17

F80858

HOUSING - fan

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

19шт.

18

O1120CS

CUSHION - fan housing

4шт.

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

NUT - stop, 5/16"

4шт.

19

F21493

SEAL - fan housing

1шт.

20

F21494

STRIP - backing

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

5шт.

21

F81996

SHIELD - R.H., fan inlet, attachment

1шт.

F21494

SHIELD - L.H., fan inlet, attachment

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (173-201) nut (129-101) and L.W. (192-19), fan inlet shield attachment

10шт.

WASHER - 1/4" flat (195-102), fan inlet shield attachment

6шт.

22

F18094

SHIELD - R.H., fan dust, attachment

1шт.

F18093

SHIELD - L.H., fan dust, attachment

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121) L.W. (192-19), fan dust shield attachment

6шт.
