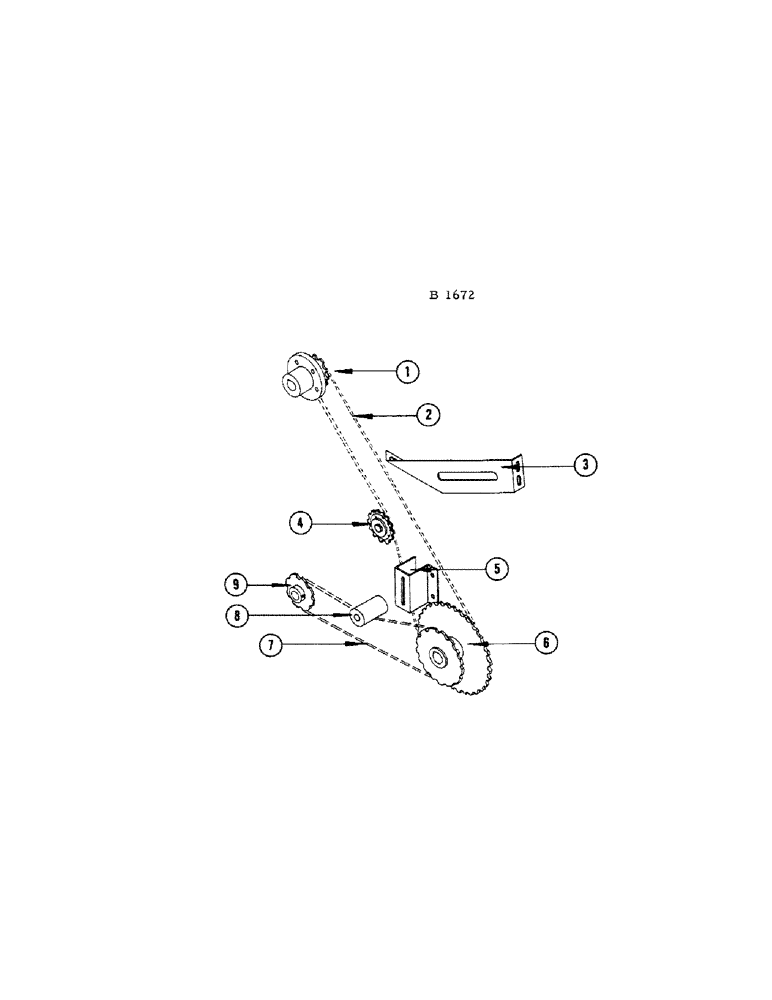

Запчасти Case IH 660 (112[A]) - TIGHTENER, ROCKER ARM CRANKSHAFT DRIVE

1

F83088

HUB AND SPROCKET - (17T) drives rocker arm crankshaft

1шт.

2

F16228

X

CHAIN - drives rocker arm crankshaft (NSS - see page 7)

1шт.

3

F18516

BRACKET - idler, crankshaft drive chain

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)

4шт.

WASHER - 5/16" flat (95-5)

4шт.

4

F6078

SPROCKET ASSY.

SPROCKET - (17T) idler, crankshaft drive chain

1шт.

BOLT - 5/8" x 2-1/2" N.F. hex. (14-1040) nut (25-1110) and L.W. (92-10)

1шт.

WASHER - 5/8" flat (95-10)

3шт.

TIGHTENER - FAN JACKSHAFT DRIVE

1шт.

5

F20325

BRACKET - idler, jackshaft drive, tightener fan

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115) L.W. (92-5), tightener - fan jackshaft drive

2шт.

6

F81348

SPROCKET - (45T and 17T dbl.) drives F21435 fan drive jackshaft and F21436 rocker arm drive crankshaft, tightener

1шт.

7

F16079

X

CHAIN - drives fan drive jackshaft (NSS - see page 7), tightener

1шт.

8

31621/2HT

BLOCK

- (Wood) idler, fan drive jackshaft chain, tightener

1шт.

BOLT - 5/16" x 3" N.C. rhd. sq. nk. (11-548) nut (25-105) and L.W. (92-5) fl. wshr. (95-5), tightener - fan jackshaft drive

1шт.

9

F80859

SPROCKET - (11T) fan jackshaft drive (Grain combine), tightener

1шт.

PIN - Drive-Loc 5/16" x 1-3/4" (135-368), tightener - fan jackshaft drive

1шт.

9

F83362

SPROCKET - (10T) fan jackshaft drive (660 special), tightener

1шт.

PIN - Driv-Loc 5/16" x 1-3/4" (135-368), tightener - fan jackshaft drive

1шт.
