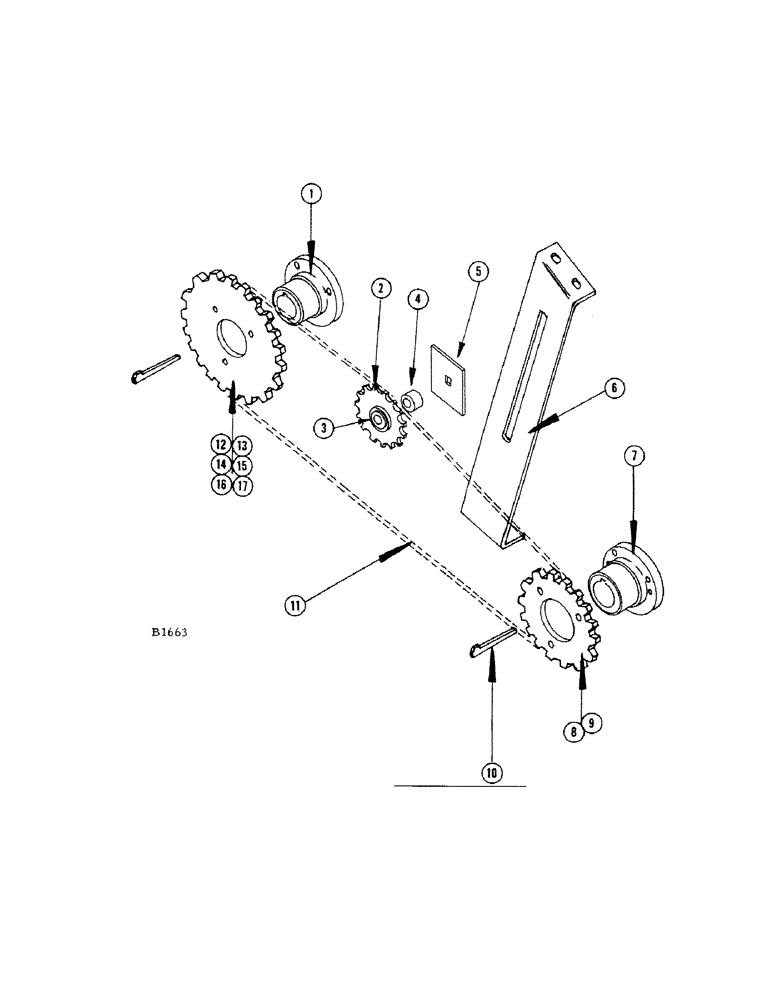

Запчасти Case IH 660 (098) - CYLINDER DRIVE AND TIGHTENER CHAIN DRIVE

1

F3406

HUB

- cylinder drive (Beater shaft)

1шт.

2

F83982

SPROCKET ASSY.

SPROCKET - (17T) idler

1шт.

3

F7293

BEARING

1шт.

BOLT - 5/8" x 2-1/2" rhd. sq. nk. (11-1040) nut (25-1010) and L.W. (92-10)

1шт.

4

V13384

SPACER - idler sprocket

1шт.

5

F21062

REINFORCEMENT - idler sprocket

1шт.

6

F15953

BRACKET - idler, chain cylinder drive

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115) L.W. (92-5)

3шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115) L.W. (92-5)

1шт.

7

F3406

HUB

- cyl. drive (Cylinder shaft)

1шт.

8

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive, driven (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6)

3шт.

9

O8382HT1

SPROCKET - (21T) cylinder drive, driven (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6)

3шт.

10

O30388HT

KEY

- cylinder drive hub

2шт.

11

F23030

CHAIN - cylinder drive (660 spec.) (NSS - see page 7)

1шт.

F16252

X

LINKS - extension, cylinder chain (Not Shown) NSS - see page 7

2шт.

12

F8978

SPROCKET - (33T) cylinder drive (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6)

3шт.

13

F16253

SPROCKET - (38T) cylinder drive (Standard)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116) L.W. (92-6)

3шт.

14

F20331

SPROCKET - (65T) cylinder drive (660 special combine)

1шт.

15

F18085

SPROCKET - (52T) cylinder drive (Slow cylinder speed - bean special), attachment

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sq. nk. (117-107) and nut (129-102) L.W. (192-20), slow speed cylinder attachment

3шт.

16

F18086

SPROCKET - (48T) cylinder drive (Slow cylinder speed - bean special), attachment

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sq. nk. (117-107) and nut (129-102) L.W. (192-20), slow speed cylinder attachment

3шт.

17

F18087

SPROCKET - (44T) cylinder drive (Slow cylinder speed - bean special), attachment

1шт.

BOLT - 5/16" x 1-1/2" N.C. rhd. sq. nk. (117-107) and nut (129-102) L.W. (192-20), slow speed cylinder attachment

3шт.

17

F82610

SPROCKET - (17T and hub) cylinder drive (Slow cylinder speed - special), attachment

1шт.

17

F22159

SPROCKET - (30T) cylinder drive, slow speed attachment

1шт.
