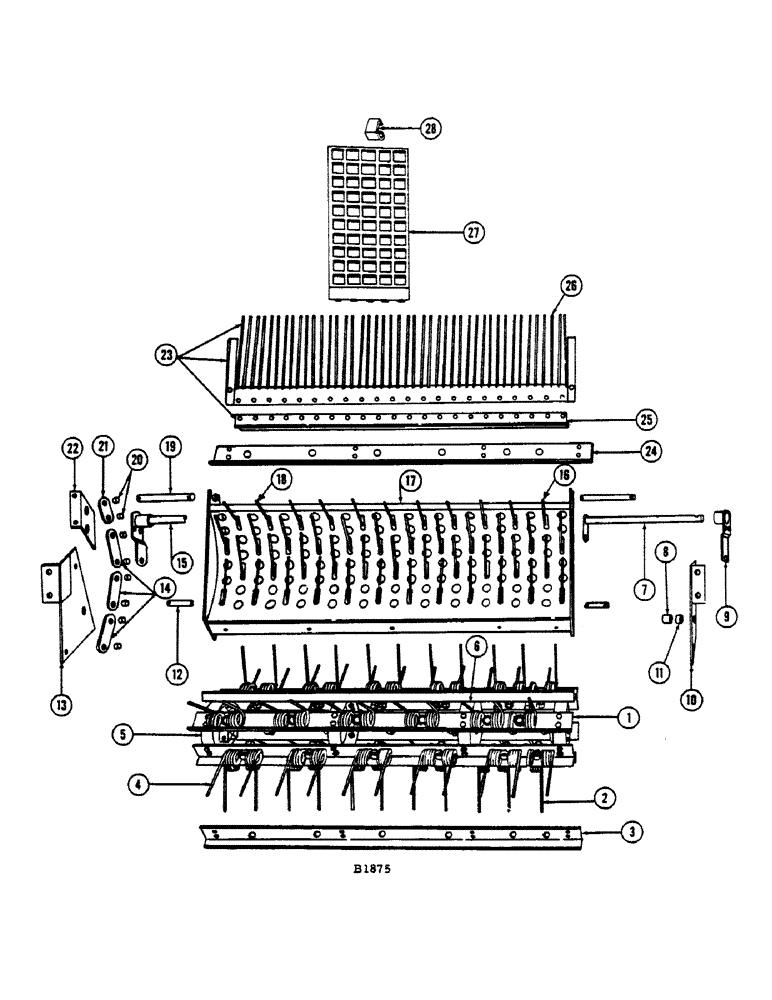

Запчасти Case IH 660 (096) - SPRING TOOTH CYLINDER ATTACHMENT

1

F83030

CYLINDER

1шт.

2

F8696

SPRING - single, L.H. end (3 each for F19817 and F19818 bars)

6шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (114-405)

6шт.

NUT - 1/2" N.F. hex. (129-125) fl. wshr. (195-533)

12шт.

3

F19817

BAR - cylinder, #1

3шт.

BOLT - 5/16" x 7/8" N.F. hex. (114-101) nut (129-122) and L.W. (192-20)

48шт.

F19818

BAR - cylinder, #2

3шт.

4

F8697

SPRING - double (15 each for F19817 and F19818 bars)

30шт.

BOLT - 1/2" x 1-3/4" (114-405)

30шт.

NUT - 1/4" N.F. hex. (129-12) fl. wshr. (195-533)

60шт.

5

F83031

HEAD - outer

2шт.

KEY - #29 Woodruff (126-48)

2шт.

6

F19820

HEAD - inner

2шт.

7

F83041

SHAFT - front concave, L.H.

1шт.

BOLT - 7/16" x 3" rhd. sq. nk. (111-414) dbl. nut (129-104)

1шт.

8

O2167TS

SPACER - rear, concave

2шт.

9

F83043

LEVER - adjusting, concave

1шт.

KEY - "A" Woodruff (126-21)

1шт.

SCREW - 5/16" x 1/2" N.C. sq. hd. set (85-524)

1шт.

10

F83040

PLATE - R.H. rear

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (114-107) nut (129-122)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.

WASHER - 3/8" flat (195-525)

2шт.

11

F19843

SPACER - rear, concave

2шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) nut (129-124)

2шт.

WASHER - 7/16" flat (195-529)

2шт.

12

F19831

SHAFT - rear, concave

1шт.

NUT - 3/4" N.F. Flex Loc (131-581)

1шт.

PIN - cotter 3/16" x 1-1/2" (132-95)

1шт.

13

F83039

PLATE - L.H. rear

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (114-107) nut (129-122)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

2шт.

WASHER - 3/8" flat (195-525)

2шт.

14

F19829

LINK - rear, concave adjusting

3шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

2шт.

WASHER - 3/8" flat (195-104)

5шт.

15

F83036

BAR - #1 and #3, concave

2шт.

F83037

BAR - #2 and #4, concave

2шт.

16

F8696

SPRING - single, L.H. end (For F83037 bar)

2шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) L.W. (192-23)

2шт.

NUT - 1/2" N.F. hex. (129-125) fl. wshr. (195-533)

4шт.

17

F83033

CONCAVE - cylinder

1шт.

18

F8697

SPRING - double (12-F83036 and 10-F83037 bars)

22шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) fl. wshr. (195-533)

22шт.

NUT - 1/2" N.F. hex. (129-125) L.W. (192-23)

44шт.

19

F19840

SHAFT - concave, front R.H.

1шт.

PIN - cotter 1/8" x 1" (132-48)

2шт.

20

F19830

SPACER - concave adjusting links

8шт.

21

F19828

LINK - front, concave adjusting

1шт.

22

F19839

SUPPORT - front, concave shaft, R.H. and L.H.

2шт.

23

F83038

TINE - grate

1шт.

24

F17826

STRIP

- bolting, for grate tines

1шт.

25

F19832

HINGE - grate tine support

1шт.

26

F19833

TINES - grate

22шт.

27

F20284

COVER - grid, strawrack

4шт.

28

F19587

CLIP - grid cover

8шт.
