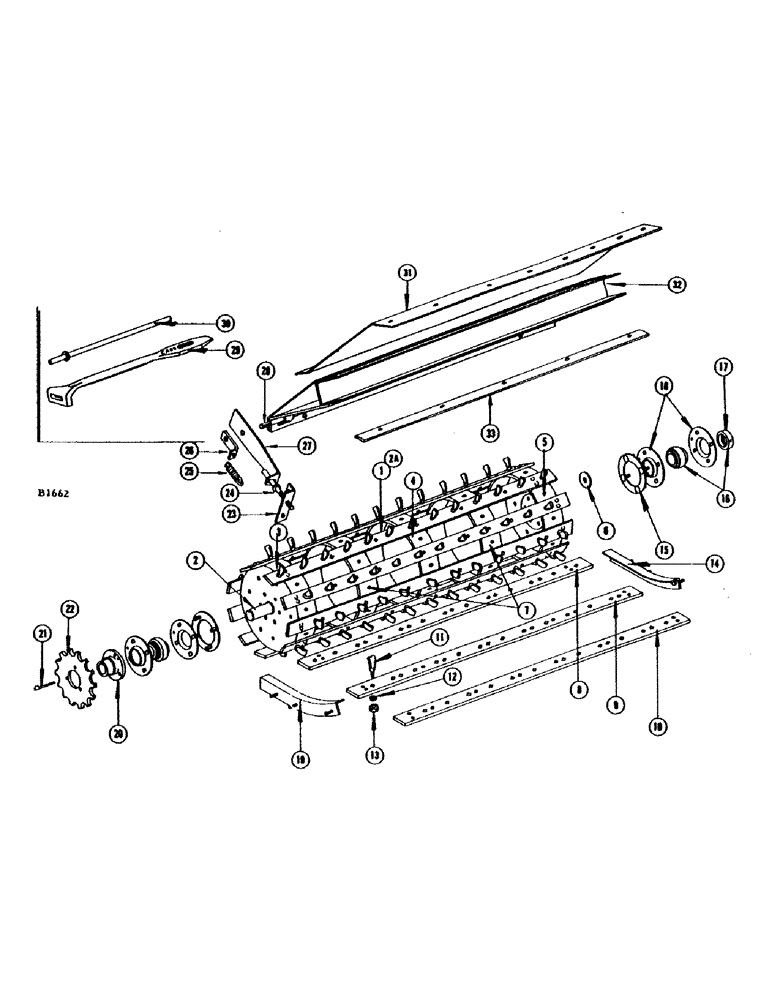

Запчасти Case IH 660 (094) - SPIKE TOOTH CYLINDER

1

F82433

CYLINDER - (Chain drive) exhaust, then use F94235

1шт.

F94235

CYLINDER - (Chain drive) Replaces F82433 when exh.

1шт.

2

F18519

SHAFT

- (Chain drive cylinder)

1шт.

2a

F88949

CYLINDER - complete welded assembly (Less shaft)

1шт.

3

F84111

HEAD - R.H.

1шт.

Available for riveted type cylinders only.

1шт.

4

F81148

RING - center (Replaced by F94265 when exh.)

1шт.

Available for riveted type cylinders only.

1шт.

F92465

RING - center (Replaces F81148 when exh.)

1шт.

Available for riveted type cylinders only.

1шт.

5

F84110

HEAD - L.H.

1шт.

Available for riveted type cylinders only.

1шт.

5

O1632TS1

WASHER - balance

1шт.

Available for riveted type cylinders only.

1шт.

7

F81149

RING - outer (Replaced by F92466 when exh.)

2шт.

Available for riveted type cylinders only.

1шт.

F92466

RING - outer (Replaces F81149 when exh.)

2шт.

Available for riveted type cylinders only.

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - #29 Woodruff

2шт.

8

F16784

BAR - cylinder #1 less teeth

3шт.

Available for riveted type cylinders only.

1шт.

9

F16785

BAR - cylinder #2 less teeth

3шт.

Available for riveted type cylinders only.

1шт.

10

F16786

BAR - cylinder, #3 less teeth

3шт.

11

B18066

TOOTH

TEETH - cylinder

111шт.

12

194-8

LOCKWASHER

111шт.

13

25-118

NUT,1/2"-20, G5

111шт.

F84764

CYLINDER - (V.S. drive) exh. then use F94236

1шт.

F94236

CYLINDER - (V.S. drive) Replaces F84764 when exh. (Includes ref. 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, and 13)

1шт.

2

F21965

SHAFT - (Variable speed cylinder drive)

1шт.

14

F77257

SHIELD - cylinder, with studs, L.H.

1шт.

25-104

NUT,1/4"-20, G5

Lockwasher (92-4) 1/4"-20, G5

3шт.

15

F81313

RETAINER - cylinder bearing

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. lockwasher (92-8)

8шт.

16

F77924

BEARING

- grain combine

2шт.

17

F62107

COLLAR

1шт.

18

F8944

FLANGE

4шт.

19

F77258

SHIELD - cylinder, with studs, R.H.

1шт.

25-104

NUT,1/4"-20, G5

Lockwasher (92-4) 1/4"-20, G5

3шт.

20

F3406

HUB

- (Chain drive only)

1шт.

21

O30388HT

KEY

- gib (Chain drive only)

1шт.

22

F8974

SPROCKET ASSY.

SPROCKET - (24T) chain cylinder drive only (See page 98)

1шт.

23

F21411

BRACKET - spring, cylinder stripper

2шт.

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Nut (25-106) L.W. (92-6) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

24

F82683

ROD - stripper adjustment

2шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

25

F18980

SPRING - cylinder stripper

2шт.

26

F18979

CLIP - spring, cylinder stripper

2шт.

27

F18982

COVER - slot, cylinder stripper

2шт.

28

F18983

ROD - adjustment, cylinder stripper

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

132-528

NUT - 3/8" N.F. Flex Loc

1шт.

29

B18287

STRAIGHTENER - tooth

1шт.

30

F81694

LEVER - cylinder

1шт.

31

F18988

SCREW

SHIELD - air

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut (25-114) Hex, 1/4"-28 x 1/2", G5, Full Thd

8шт.

32

F83778

STRIPPER - cylinder

1шт.

14-664

BOLT,Hex, 3/8" - 24 x 4", Gr 5

- 3/8" x 4" N.F. hex., dbl. nut (25-115)

3шт.

33

F83966M

BAR - cylinder inertia (Set of 9 balance bars)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex., Shakeproof L.W. (192-10)

45шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F.

30шт.

F16800

PLATE - filler, spike tooth cylinder (Special)

9шт.

114-218

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5, Full Thd

- 3/8" x 7/8" N.F. hex., L.W. (192-21)

45шт.

129-123

NUT,3/8"-24, G5

30шт.
