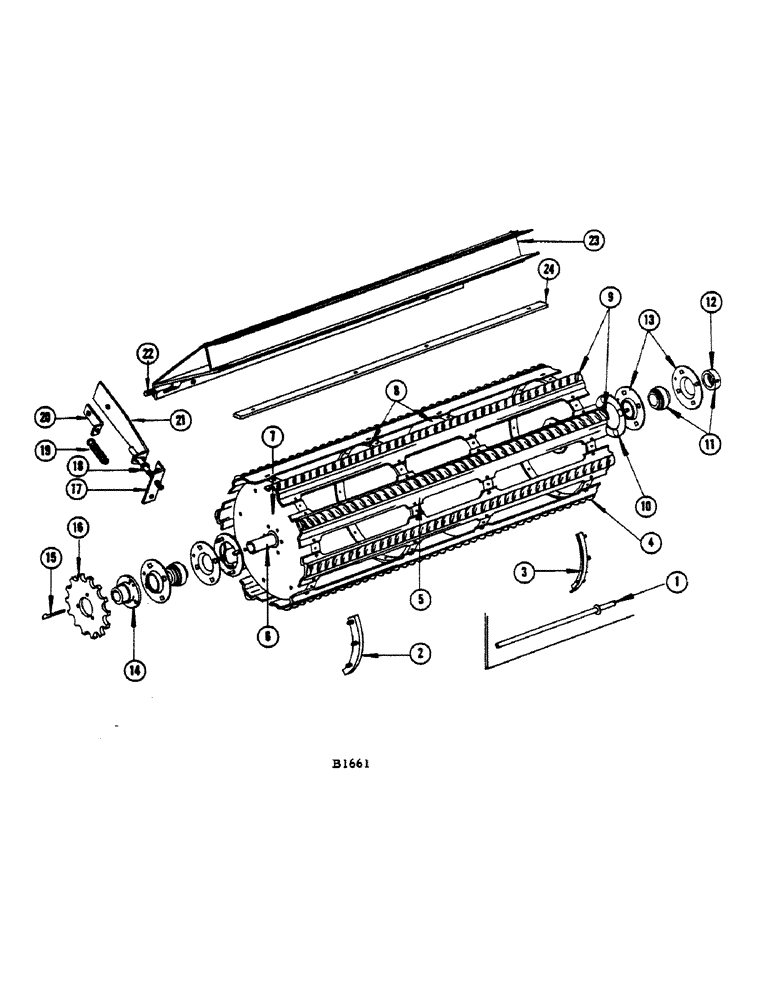

Запчасти Case IH 660 (092) - RUB BAR CYLINDER

1

F81694

LEVER - cylinder

1шт.

2

F76890

SHIELD - cylinder, with studs, R.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

3

F76889

SHIELD - cylinder, with studs, L.H.

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4)

3шт.

4

F82372

CYLINDER - complete (Chain cylinder drive)

1шт.

5

F16933

SUPPORT - rub bar

8шт.

BOLT - 3/8" x 3/4" N.F. hex. (14-612) nut (25-116)

64шт.

6

F18519

SHAFT

1шт.

7

F84109

HEAD - outer

2шт.

KEY - #29 Woodruff (126-48)

2шт.

BOLT - 7/16" x 3" rhd. sq. nk. (11-748) dbl. nut (25-107)

2шт.

8

F80817

HEAD - inner

2шт.

9

F94191

BAR

SET OF RUB BARS - 4 R.H. and 4 L.H. (Replaces F82049 when stocks are exhausted)

1шт.

F82049

SET OF RUB BARS - 4 R.H. and 4 L.H. (Replaced by F94191 when stocks are exhausted)

1шт.

NUT - 3/8" N.F. hex. (129-123) L.W. (192-21) fl. wshr. (195-104)

64шт.

O1632TS1

WASHER - balance (Not Shown) see ref. 6, page 94

1шт.

BOLT - 5/16" x 1-1/4" N.C. hex. (113-106) nut (25-105)

4шт.

F84763

CYLINDER - complete (Variable speed cylinder drive) (Includes ref. 5, 7, 8, 9 and O1632TS1)

1шт.

6

F21965

SHAFT

1шт.

10

F81313

RETAINER - cylinder bearing

2шт.

NUT - 1/2" N.C. hex. (25-108) L.W. (92-8)

8шт.

11

F77924

BEARING

2шт.

12

F62107

COLLAR

1шт.

13

F8944

FLANGE

4шт.

14

F3406

HUB

- cyl. drive (Chain cyl. drive)

1шт.

15

O30388HT

KEY

- gib, for ref. 14 hub (Chain cylinder drive)

2шт.

16

F8974

SPROCKET ASSY.

SPROCKET - (24T) cylinder drive (Chain cylinder drive)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

3шт.

17

F21411

BRACKET - 3/8" x 1" N.C. hex. (13-616) nut (25-106)

4шт.

18

F82683

BRACKET - stripper adjustment

1шт.

NUT - 3/8" N.C. (25-106)

2шт.

19

F18980

SPRING - cylinder stripper

2шт.

20

F18979

CLIP - spring, cylinder stripper

2шт.

21

F18982

COVER - slot, cylinder stripper

2шт.

22

F18983

ROD - adjustment, cylinder stripper

1шт.

PIN - cotter 1/8" x 1" (132-48)

1шт.

NUT - 3/8" N.F. Flex Loc (131-528)

1шт.

23

F83778

STRIPPER - cylinder

1шт.

BOLT - 3/8" x 4" N.F. hex. (14-664) dbl. nut (25-115)

3шт.

24

F17568

PLATE - filler, rub bar cylinder (Special)

1шт.

BOLT - 3/8" x 3/4" N.F. hex. (114-209) L.W. (192-21)

8шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123) and L.W. (192-21)

24шт.

F18988

SCREW

SHIELD - air (See ref. 32 page 94)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114) L.W. (92-4)

8шт.
