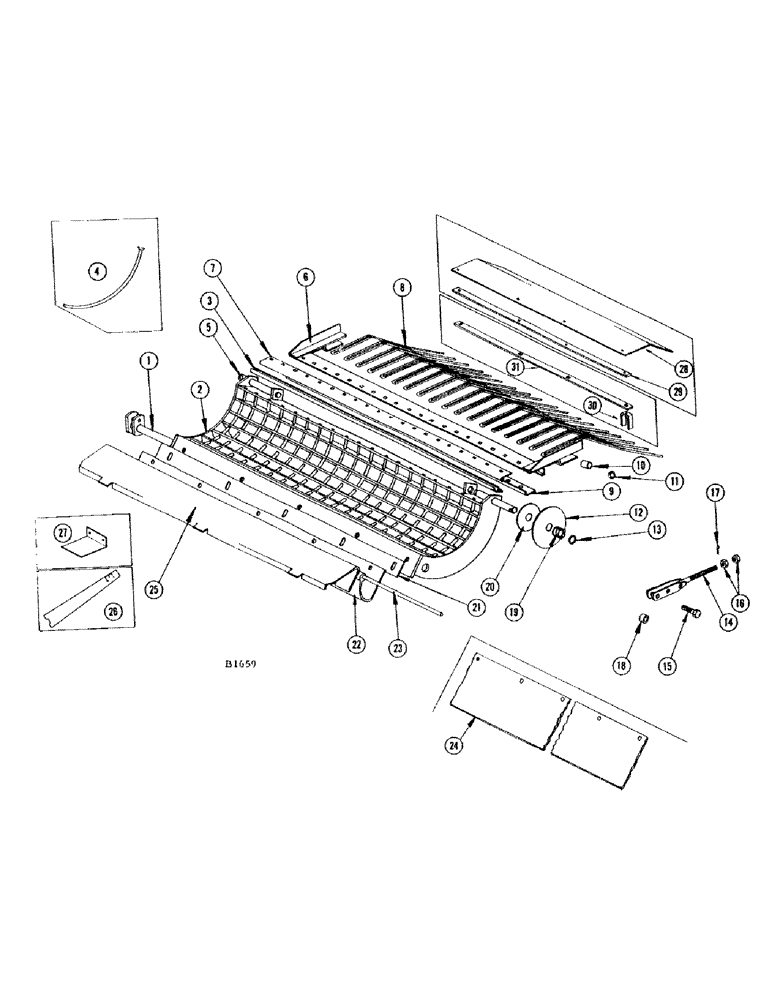

Запчасти Case IH 660 (086) - CONCAVES, TINES AND REMOVABLE FEED PLATE, RUB BAR

1

F81319

SHAFT - front concave

1шт.

2

F83531

CONCAVE

1шт.

3

F83522

HINGE - grate tine

1шт.

4

F21430

TINE - concave

39шт.

5

F18523

SHAFT - stub, rear concave (Grain combine) see ref. 35 page 84

2шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

2шт.

6

F84886

GRATE

TINE ASSEMBLY - (Replaces F82485 when stocks are exhausted)

1шт.

F82485

TINE ASSEMBLY - (Replaced by F84866 when stocks are exhausted)

1шт.

7

F17825

HINGE

- support

1шт.

8

F18171

TINE

S - grate

22шт.

BOLT - 1/4" x 3/4" rhd. sq. nk. (11-412) nut and L.W.

22шт.

9

F17826

STRIP

- bolting

1шт.

F21431

RETAINER - rod, between ref. 3 hinge and concave

1шт.

10

N1331

SPACER - rear tine assembly support

2шт.

BOLT - 5/16" x 1-1/2" N.F. hex. (14-524) nut and L.W.

2шт.

11

O1594N

WASHER - for 14-524 bolt of N1331 spacer

2шт.

12

F16031

COVER - slot, rear concave shaft

2шт.

13

A26436

WASHER - spring retainer

2шт.

14

F84305

ARM - rear concave adjusting (Grain combine) see ref. 36, Fig. 84

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

LOCKWASHER - 3/8" (92-6)

2шт.

16

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

2шт.

17

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

18

F21434

SPACER

- rear concave arm

2шт.

19

O3914CS

SPRING - slot cover

2шт.

20

F16032

SPACER - rear concave

2шт.

21

F16025

PLATE

- wear, concave

1шт.

22

F22364

SEAL - canvas, feed plate (#8309001 and after)

1шт.

23

F22365

ROD - seal (#8309001 and after)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

4шт.

24

F21432

SPACER

SEAL - (Metal) feed plate (Before #8309001)

1шт.

25

F80847

LARGE PLATE

FEED PLATE - removable, cylinder

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) L.W. (92-6) fl. wshr. (95-6)

5шт.

26

F16941

GAUGE - concave clearance

1шт.

27

F16778

COVER - cylinder side sheet

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut and L.W.

4шт.

28

F82190

SHIELD - concave grate tine, attachment

1шт.

NUT - 1/4" N.C. hex. (25-104) L.W. (92-4), concave grate tine shield attachment

8шт.

29

F18091

STRIP - bolting, concave grate tine shield attachment

2шт.

30

F17888

RETAINER - concave filler strip, rub bar attachment

20шт.

F19485

RETAINER - concave filler strip, rub bar attachment

4шт.

31

F17887

STRIP - concave filler (See F91848), rub bar attachment

6шт.

BOLT - 5/16" x 3-1/4" N.C. rhd. sq. nk. (111-223) and nut (129-102) L.W. (192-20), rub bar concave filler strip attachment

24шт.

F22323

BAR - concave filler (660 special), rubber covered filler bar attachment

3шт.

F53516

STRIP - filler bar, rubber covered attachment

3шт.

F4351

RETAINER - filler bar (660 special), rubber covered attachment

18шт.

111-127

BOLT - 1/4" x 2-3/4" rhd. sq. nk., rubber covered filler bar attachment Short NK, 1/4"-20 x 2 3/4", G2

18шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Rubber covered filler bar attachment

36шт.

F91848

BAR - magnetic filler (Can replace F17887 ref. 31), attachment, rubber covered

6шт.
