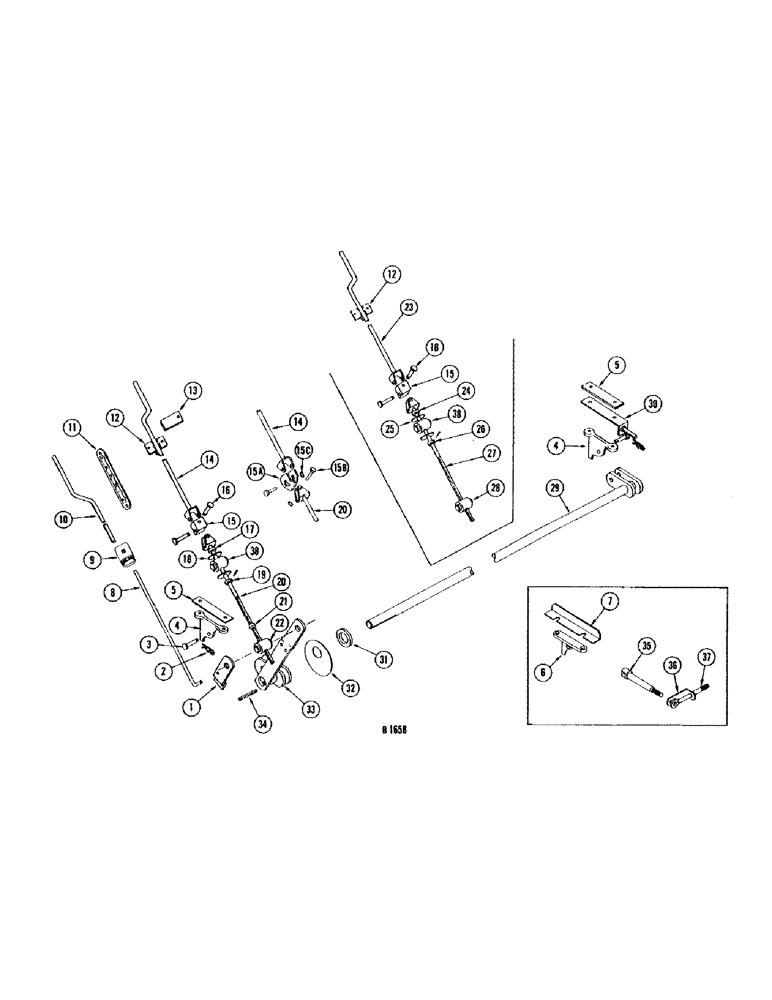

Запчасти Case IH 660 (084) - CONCAVE ADJUSTING LEVER AND LINKAGE

1

F17553

RETAINER - trunnion

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut and L.W.

2шт.

2

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

3

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Adjustment bracket 3/8" x 1.060"

2шт.

4

F1413

HANGER - front concave (Grain combine)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut and L.W.

4шт.

5

F16041

SHIM - front concave hanger

3шт.

6

F84102

HANGER - front concave (660 special combine)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (14-620) nut (25-116)

4шт.

LOCKWASHER - 3/8" (92-6)

4шт.

7

F21210

ANGLE - hanger reinforcement (660 special combine) Before #8309001

2шт.

8

F18708

ROD - gauge, concave clearance indicator, lower

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

9

F18707

CLAMP - for ref. 10 and ref. 14 or 23 rods

2шт.

BOLT - 1/4" x 1" rhd. sq. nk. (11-416) nut (25-114)

1шт.

10

F21592

ROD - gauge, concave clearance indicator, upper

1шт.

11

F17827

GAUGE - concave clearance

1шт.

BOLT - 1/4" x 1/2" N.C. hex. (114-2) nut (129-121)

2шт.

WASHER - 1/4" flat (195-102) L.W. (192-19)

2шт.

12

F21593

CLIP - anchor, concave adjusting crank

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

13

F22168

SHIM - anchor clip (Variable speed cylinder drive only) #8309001 and after

1шт.

14

F91805

CRANK - concave adjusting (#8309001 and after)

1шт.

15

F17556

CROSS - univ. joint (Replaced by F22933 when exhausted)

1шт.

15a

F22933

CROSS - univ. joint (Replaces F17556, use 45-524 and 193-92 also)

1шт.

15b

45-524

RIVET - 5/16" x 1-1/2" rhd.

2шт.

15c

193-92

LOCK WASHER,Int Tooth, 5/16"

SHAKEPROOF LOCKWASHER - 5/16"

2шт.

16

F62238

PIN - drilled (See F22933)

2шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), (See F22933) 3/32" x 5/8"

2шт.

17

F22332

SPACER - adjusting screw (#8309001 and after)

1шт.

18

F22333

WASHER - adjusting screw (#8309001 and after)

2шт.

19

F22334

COLLAR - adjusting screw (#8309001 and after)

1шт.

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

20

F91804

SCREW - adjusting, front concave (#8309001 and after)

1шт.

NUT - 5/8" N.C. hex. jam (25-1410)

2шт.

21

F17354

SPACER - adjusting screw (#8309001 and after)

1шт.

22

F22335

TRUNNION - adjusting screw (#8309001 and after)

1шт.

23

F84379

CRANK - concave adjusting (Before #8309001)

1шт.

24

A28893

BUSHING

SPACER - adjusting screw (Before #8309001)

1шт.

25

A26381

WASHER

- adjusting screw (#8309001 and after)

2шт.

26

FB14157

COLLAR - adjusting screw (Before #8309001)

1шт.

27

F83272

SCREW - adjusting, front concave (Before #8309001)

1шт.

PIN - groove 1/8" x 1" (135-328)

1шт.

NUT - 1/2" N.F. hex. jam (25-148)

2шт.

28

F17552

TRUNNION - adjusting screw (Before #8309001)

1шт.

29

F81319

SHAFT - front concave

1шт.

30

F80850

BRACKET - front hanger adjustment

1шт.

NUT - 3/8" N.C. hex. (25-106)

2шт.

31

O1611CH

SPACER - front concave shaft

1шт.

32

F16034

COVER - slot, front concave shaft

2шт.

33

F80856

LEVER - adjusting

1шт.

PIN - cotter 1/8" x 1-1/4" (132-50)

1шт.

SCREW - 5/16" x 1/2" N.C. sq. hd. set (85-58) nut (25-105)

1шт.

34

T25070

KEY

- ref. 33 lever

1шт.

35

F21209

SHAFT - stub, rear concave (660 special combine) Replaces ref. 5, page 86

2шт.

36

F84103

ARM - rear concave adjusting (660 special combine) Replaces ref. 14, page 86

2шт.

37

F21208

EYEBOLT - rear concave adjusting (660 special combine)

2шт.

38

NSS

NOT SOLD SEPARAT

TRUNNION - adjusting screw (Welded to operator's platform)

1шт.
